Description
Warranty: 12 Months, 12months Customized Support: OEM, ODM
Name: High Configuration CNC Optical Video Measuring Machine Accuracy: 2.5um
Velocity: 200mm/s Function: Measuring And Detect
General Use: Electrics,plastics,mold,machinery,connectors And Mobile Color: White
Power: 220V /50HZ
High Light:

Optical CNC Vision Measuring Machine

,

CNC Vision Measuring Machine 2.5um

,

200mm/S optical measuring machine

High Configuration CNC Optical Video Measuring Machine

Product Description

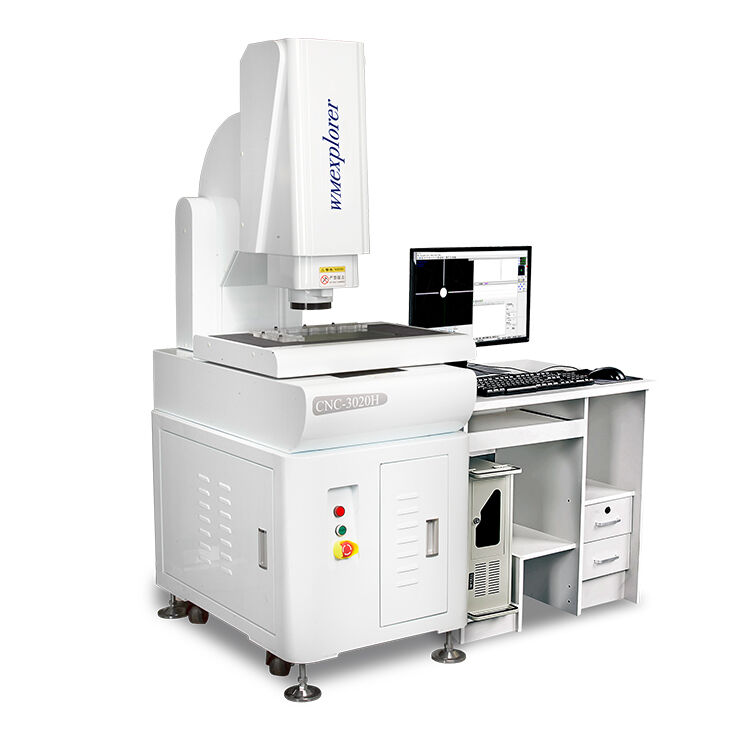

Optical CNC Vision Measuring Machine 2.5um Accuracy 200mm/S Velocity 0

Optical CNC Vision Measuring Machine 2.5um Accuracy 200mm/S Velocity 1

Model

CNC-3020H



Glass table Size



330*230



Metal table Size

350*250



Working travel X.Y

300*200



Z-axis travel lift(mm)

200 focus



X.Y.Z-axis digital display resolution

0.5um



X.Y axis value error

≤(3+L/200)L is the measured length,unit mm)



Weight(kg)

300



Dimession

750*850*1650

Motor

Three axis velocity

300mm/s



Three axis positioning accuracy

0.001mm

Image system

Camare

Sony color 1/3″CCD camera



Zoom

 coaxial optical zoom lens with a zoom lens (2 select one)



Zoom magnification

0.7-4.5X



Video total magnification

30-230X



Objector field

11.1-1.7mm



Power

AC220V/AC110V



Power consumption

100W

Insreument accessories

1Xtube(option)

0.5Xtube(option)

Working distance

Zoom lens

0.7-4.5X

0.7-4.5X



Add lens

Video magnification

Material side field(mm)



Video magnification

Material side field(mm)





0.5X option

11.8X-74X

22-3.4

5.9X-37X

44-6.8

175

Standard

23.5X-148X

11.1-1.7X

11.8X-74X

22-3.4

92

2Xoption

47X-296X

5.5-0.9

23.5X-148X

11.1-1.7

36





Main Function

1.Arbitrary axis straightened, coordinate system reset.



2.graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.



3.Set the zoom, graphics narrow, graphic print radio is selected, deselect, graphics removed.



4 .Set the gray scale image, saturation, contrast, image saved as a BMP format.



5. A variety of edge detection mode, the computer auto



6.Preset elements: point, line, circle, arc.



Optical CNC Vision Measuring Machine 2.5um Accuracy 200mm/S Velocity 2

Optical CNC Vision Measuring Machine 2.5um Accuracy 200mm/S Velocity 3

Features

1.High-precision fully automatic measurement,CNC four-axis control.

2.High-precision and high-strength machine:00-class marble base/column/workbench with high precision and good stability.

3.XYZthree-axis imported precision linear guide / imported grinding grade ball screw drive system, long life and good stability.

4.High precision metal patch ruler 0.2um.

5.The Wm0750 automatic zoom optical lens enables fully automatic measurement without the need for zoom correction.

6.HD SONY ccD camera with high quality measurement screen.

7.Autofocus measurement, optical altimetry flatness, UK RENISHAW contact probe.

8.Program-controlled five-ring eight-zone surface light source LED contour light source, coaxial light source.Different colors are added to different products.

9.The navigation cCD camera indicates the measurement position,which is quick to locate and convenient for measurement.

10.Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.

11.lt is equipped with a joystick for easy operation at any position.

Optical CNC Vision Measuring Machine 2.5um Accuracy 200mm/S Velocity 4

Optical CNC Vision Measuring Machine 2.5um Accuracy 200mm/S Velocity 5

Specifications

1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.

2. It has many features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.

4. Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.

5. Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.
6. Measurement data directly input into AutoCAD and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
7. Record user program, editing and execute command.
