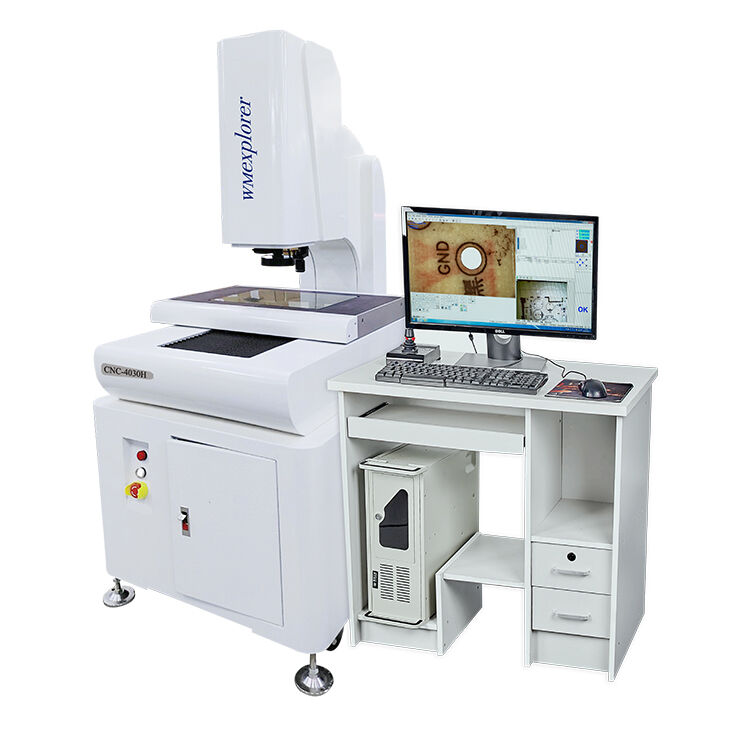

AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White

AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White

Large Image :  AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-5040H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $16,000.00/sets
Packaging Details: Factory direct sales automatic image measuring instrument CNC-5040H Wooden Cases
Delivery Time: 2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White

Description
Warranty: 1 Year Customized Support: OEM, ODM
Product Name: Factory Direct Sales Automatic Image Measuring Instrument CNC-5040H Model: CNC-5040H
Color: White General Use: Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material: Granite Usage: Measuring
Weight: 300KG Power Supply: AC 220V/50-60Hz
Type: Fully Automatic Usage: Optical System
High Light:

50Hz CNC Vision Measuring Machine

,

220V CNC Vision Measuring Machine

,

CNC Vision Measurement System

Factory direct sales automatic image measuring instrument CNC-5040H
Products Description
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White 0
Items
CNC-3020AH
CNC-4030AH
CNC-5040AH
Dimension(mm)(L×W×H)
700*850*1650
800*900*1650
900*1050*1650
Measuring range(mm)(X×Y×Z)
300*200*200
400*300*200
500*400*200
Measuring Accuracy(μm
3+L/200
3+L/200
3+L/200
Repeatability (μm)
3
3
3
Weight(kg)
300
380
450
Image and Measuring
CCD
Japanese SOnYCcD

Len
High definition zoomlens/Continuous magnification 0.7-5.0x

Magnification
40-230X( For reference only. With different camera and lens the magnification will be different. )

ptical scale resolution
x/Y/z axis o.0002mm ( 0.2um )

Working distance
108mm
Measurement software
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving system
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination
Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are
added to different products.
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White 1
Our Advantages

♥High precision and high strength machine:00 marble base / upright cloumn / worktable, high precision and good stability.

♥XYZ three axis imported precision v type guide rail / imported optic axis drive system, long service life, good stability.

♥wMContinuous zoom optical lens,d ifferent frames, different magnification, without zoom correction.

♥HD Japanese SoNY ccD camera, high quality measuring screen.

AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White 2
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White 3
Our Services
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White 4
1.Warranty within 12 months from the time of receipt 2.During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service. 3.We provide life warranty services of machine for users with cost. 01.If machine failure caused by our side, you can send back the spare parts to us and the cost by our side. 02.But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation. 4.Extra warranty period: We will provide to user after-sale long-life advisory service. 5.Our company has spare parts which can be provided for the users with cost. 6.We provided users with after-sales value added technical service by preferential price for life,
Company Information
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White 5
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White 6
Packaging & Shipping
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White 7
FAQ
AC 220V 50Hz CNC Vision Measuring Machine , Vision Measurement System White 8

Q1: What kind of equipment do you mainly produce?

A: Hello! Our main production equipment are: automatic image measuring instrument,manual image measuring instrument,large gantryimage measuring instrument,one key measuring instrument. Automatic vision screening equipment, non-standard vision detection equipment, etc.

Q2: Do you accept custom service? Can l print my logo on the machine?A: Yes, all of our products can be customized , if you have a logo requirement,we can also customize for you.

Q3: what is your delivery time? what about the packing? A: Our delivery time is 5 working days after receiving the deposit or order confirmation,and 10-20 working days for customized machines.Our packaging is wrappedand fixedwith professional machine packaging film inside, and woodenbox packaging and screwfixing are used on the outside.Ensure that theproduct arrives safely without damage.

Q4:What are the payment terms? A:T/T,L/C, western Union, etc.
