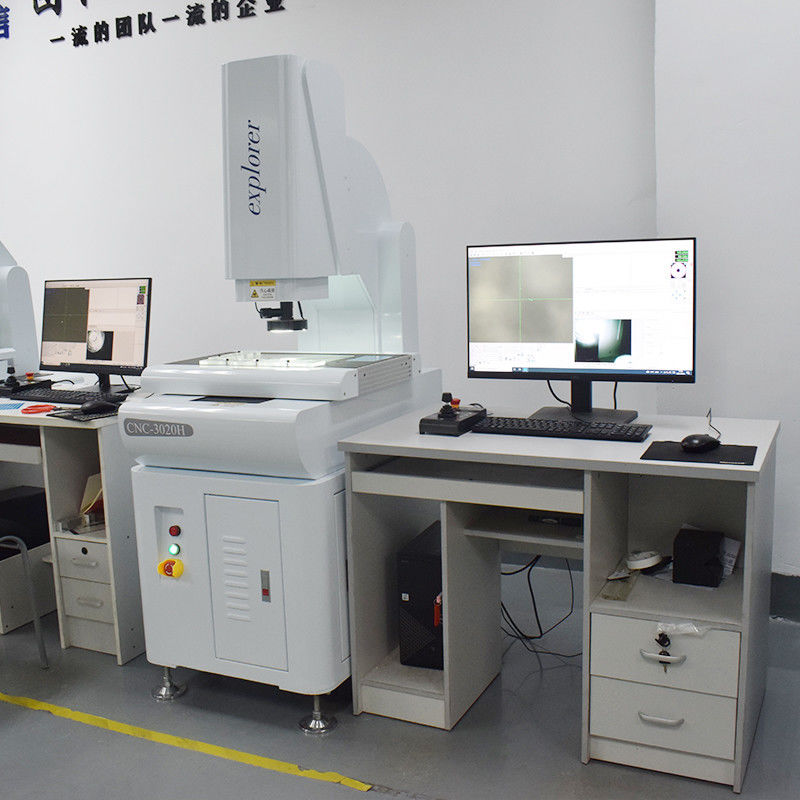

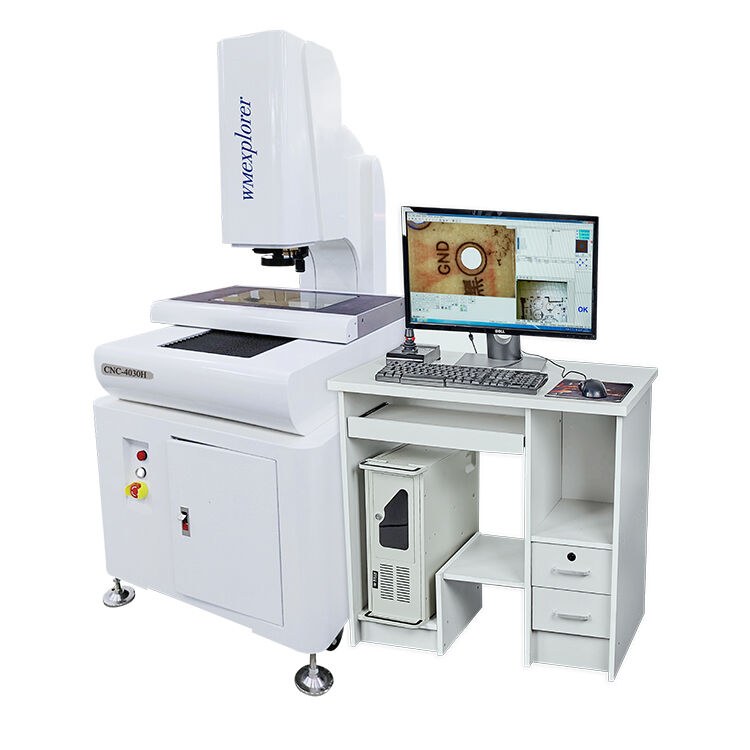

Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution

Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution

Large Image :  Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-4030H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $18,000.00/sets
Packaging Details: Factory direct sales automatic image measuring instrument CNC-4030H Wooden Cases
Delivery Time: 2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution

Description
Warranty: 1 Year Customized Support: OEM, ODM
Product Name: Factory Direct Sales Automatic Image Measuring Instrument CNC-4030H Model: CNC-4030H
Color: White General Use: Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material: Granite Usage: Measuring
Weight: 300KG Power Supply: AC 220V/50-60Hz
Type: Fully Automatic Usage: Optical System
Resolution: 0.1UM Precision: ≦2+L/200UM
High Light:

Granite Visual Measuring Machine

,

Visual Measuring Machine Automatic

,

0.1UM visual measurement machine

Factory direct sales automatic image measuring instrument CNC-4030H
Products Description
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution 0
Items
CNC-3020AH
CNC-4030AH
CNC-5040AH
Dimension(mm)(L×W×H)
700*850*1650
800*900*1650
900*1050*1650
Measuring range(mm)(X×Y×Z)
300*200*200
400*300*200
500*400*200
Measuring Accuracy(μm
≦2+L/200
≦2+L/200
≦2+L/200
Repeatability (μm)
3
3
3
Weight(kg)
300
380
450
Image and Measuring
CCD
Japanese SOnYCcD

Len
High definition zoomlens/Continuous magnification 0.7-5.0x

Magnification
40-230X( For reference only. With different camera and lens the magnification will be different. )

ptical scale resolution
x/Y/z axis o.0002mm ( 0.2um )

Working distance
108mm
Measurement software
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving system
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination
Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are
added to different products.
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution 1
Our Advantages
High-precision fully automatic measurement, CNC four-axis control.
High-precision and high-strength machine: 00-class marble base/column/workbench with high precision and good stability
XYZ three-axis imported precision linear guide / imported grinding grade ball screw drive system, long life and good stability.0.2um.High precision metal patch ruler o.2um.
The Wm0750 automatic zoom opticallens enables fully automatic measurement without the need for zoom correction. HD SONY CcD camera with high quality measurement screen Autofocus measurement, optical altimetry flatness, UK RENISHAW contact probe, Program-controlled five-ring eight-zone surace light souceLED contour light source, coaxial light source.Different colors are added to different products. It is equipped with a joystick for easy operation at any position. The navigation CCD camera indicates the measurement position, which is quick to locate and convenient for measurement. Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution 2
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution 3
Our Services
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution 4
1.Warranty within 12 months from the time of receipt 2.During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service. 3.We provide life warranty services of machine for users with cost. 01.If machine failure caused by our side, you can send back the spare parts to us and the cost by our side. 02.But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation. 4.Extra warranty period: We will provide to user after-sale long-life advisory service. 5.Our company has spare parts which can be provided for the users with cost. 6.We provided users with after-sales value added technical service by preferential price for life,
Company Information
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution 5
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution 6
Packaging & Shipping
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution 7
FAQ
Granite Material Visual Measuring Machine Fully Automatic 0.1UM Resolution 8

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your MOQ ?
A:Each size 50pcs
Q: If can be customized ?
A:Yes,we can customized according to your requirement
