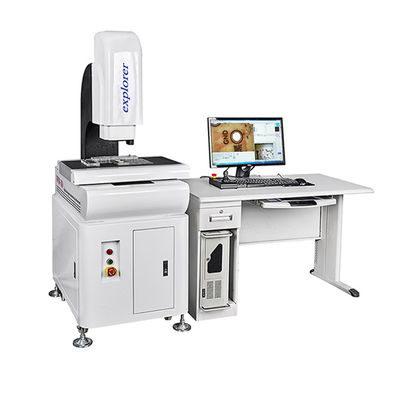

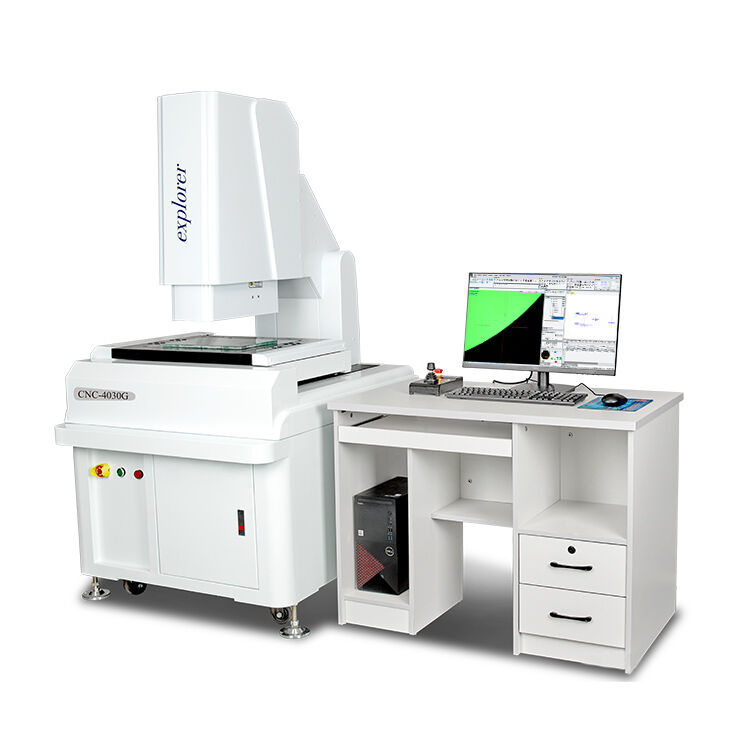

Industrial CNC video measuring machine high quality vision measuring machine image dimension measuring system
|
Items
|
CNC-3020AH
|
CNC-4030AH
|
CNC-5040AH
|
|
Dimension(mm)(L×W×H)
|
700*850*1650
|
800*900*1650
|
900*1050*1650
|
|
Measuring range(mm)(X×Y×Z)
|
300*200*200
|
400*300*200
|
500*400*200
|
|
Measuring Accuracy(μm
|
3+L/200
|
3+L/200
|
3+L/200
|
|
Repeatability (μm)
|
3
|
3
|
3
|
|
Weight(kg)
|
300
|
380
|
450
|
|
Image and Measuring
|
CCD
|
Japanese SOnYCcD
|
|
|
Len
|
High definition zoomlens/Continuous magnification 0.7-5.0x
|
|
|
Magnification
|
40-230X( For reference only. With different camera and lens the magnification will be different. )
|
|
|
ptical scale resolution
|
x/Y/z axis o.0002mm ( 0.2um )
|
|
|
Working distance
|
108mm
|
|
Measurement software
|
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
|
|
Driving system
|
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
|
|
Illumination
|
Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are added to different products.
|
Function Description:
Element measurement: Measuring points, lines, circles, arcs, angles, oval, rectangle measuring a
predetermined number of points, automatic identification points, lines, circles, arcs.
Element structure: Center construction, the intersection of structure, the midpoint structure, line structure,
round structure, angle configuration.
Preset elements: points, lines, circles, arcs. Coordinate translation, straighten the workpiece. Straighten any
axis coordinate system reset.
Graphics: Graphics zoom, graphics narrowing, graphics pan, graphics selected, select the circle, delete the
graphic, graphic print. Zoom settings, set the image gray, saturation, contrast, save, images in BMP format.
A variety of edge finder mode, the computer automatically take points, automatic identification round, arc greatly
improve mining point speed.
Our advantage
High-precision fully automatic measurement, CNC four-axis control.
High-precision and high-strength machine: 00-class marble base/column/workbench with high precision and good stability
XYZ three-axis imported precision linear guide / imported grinding grade ball screw drive system, long life and good stability.0.2um.High precision metal patch ruler o.2um.
The Wm0750 automatic zoom opticallens enables fully automatic measurement without the need for zoom correction.
HD SONY CcD camera with high quality measurement screen
Autofocus measurement, optical altimetry flatness, UK RENISHAW contact probe,
Program-controlled five-ring eight-zone surace light souceLED contour light source, coaxial light source.Different colors are added to different products.
It is equipped with a joystick for easy operation at any position.
The navigation CCD camera indicates the measurement position, which is quick to locate and convenient for measurement.
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Our Services
2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free,
except ticket and accommodation.
4. Extra warranty period: We will provide to user after-sale long-life advisory service.
5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sales value added technical service by preferential price for life,
Related products
Manual measuring instrument CNC automatic measuring instrument Tool microscope
Large gantry measuring instrument Profile projector coordinate measuring machine
certificate
1.our software through the national professional organization of standard measurement certification
2.our machines can give HSR agency of standard measurement certification
