3D Image Dimension CNC Video Measuring Machine High Precision

3D Image Dimension CNC Video Measuring Machine High Precision
3D Image Dimension CNC Video Measuring Machine High Precision
3D Image Dimension CNC Video Measuring Machine High Precision 3D Image Dimension CNC Video Measuring Machine High Precision 3D Image Dimension CNC Video Measuring Machine High Precision 3D Image Dimension CNC Video Measuring Machine High Precision 3D Image Dimension CNC Video Measuring Machine High Precision 3D Image Dimension CNC Video Measuring Machine High Precision 3D Image Dimension CNC Video Measuring Machine High Precision

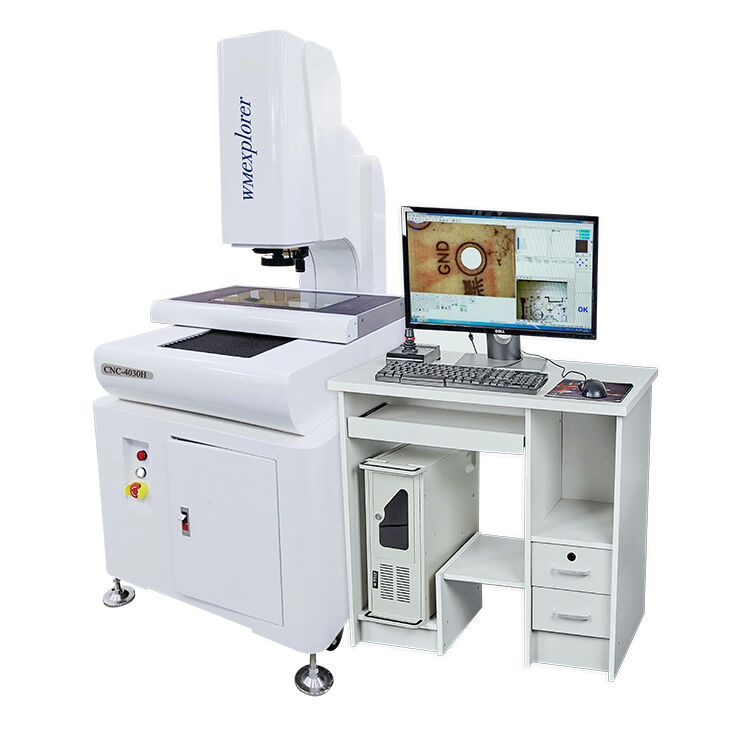

Large Image :  3D Image Dimension CNC Video Measuring Machine High Precision

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-3020
Payment & Shipping Terms:
Price: $23,000.00/sets
Packaging Details: High precision video measuring machine high quality vision measuring machine 3D image dimension measuring system<br>optical measuring instrumentSize; 700*-850*1650<br>optical measuring instrumentWeight; 300kg
Contact Now

3D Image Dimension CNC Video Measuring Machine High Precision

Description
Warranty: 1 Year Customized Support: OEM, ODM
Product Name: 3d Image Measuring Test Instrument Price Model: CNC-3020
Color: White General Use: Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material: Granite Usage: Measuring
Weight: 350KG Power Supply: AC 220V/50-60Hz
Type: Fully Automatic Usage: Optical System
High Light:

Image Dimension CNC Video Measuring Machine

,

3D CNC Video Measuring Machine

,

High Precision video measurement machine

High precision video measuring machine high quality vision measuring machine 3D image dimension measuring system

Product Description

Characteristics:

1.Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically, it makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.

2.Graph function key is black.

3.Graph constructive key is red.

4.Visual tool function key is black and green.



3D Image Dimension CNC Video Measuring Machine High Precision 0

Items

CNC-3020AH

CNC-4030AH

CNC-5040AH

Dimension(mm)(L×W×H)

700*850*1650

800*900*1650

900*1050*1650

Measuring range(mm)(X×Y×Z)

300*200*200

400*300*200

500*400*200

Measuring Accuracy(μm

3+L/200

3+L/200

3+L/200

Repeatability (μm)

3

3

3

Weight(kg)

300

380

450

Image and Measuring

CCD

Japanese SOnYCcD



Len

 High definition zoomlens/Continuous magnification 0.7-5.0x



Magnification

40-230X( For reference only. With different camera and lens the magnification will be different. )



ptical scale resolution

 x/Y/z axis o.0002mm ( 0.2um )



Working distance

108mm

Measurement software

Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.

Driving system

X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system

Illumination

Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are added to different products.
3D Image Dimension CNC Video Measuring Machine High Precision 1

Our advantage



High-precision fully automatic measurement, CNC four-axis control.

High-precision and high-strength machine: 00-class marble base/column/workbench with high precision and good stability

XYZ three-axis imported precision linear guide / imported grinding grade ball screw drive system, long life and good stability.0.2um.High precision metal patch ruler o.2um.

The Wm0750 automatic zoom opticallens enables fully automatic measurement without the need for zoom correction.

HD SONY CcD camera with high quality measurement screen

Autofocus measurement, optical altimetry flatness, UK RENISHAW contact probe,

Program-controlled five-ring eight-zone surace light souceLED contour light source, coaxial light source.Different colors are added to different products.

It is equipped with a joystick for easy operation at any position.

The navigation CCD camera indicates the measurement position, which is quick to locate and convenient for measurement.

Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.

3D Image Dimension CNC Video Measuring Machine High Precision 2



Our Services

3D Image Dimension CNC Video Measuring Machine High Precision 3

2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

3. We provide life warranty services of machine for users with cost.

01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.

02. But if needs our technician come to customer side for training, technical service is free,

except ticket and accommodation.

4. Extra warranty period: We will provide to user after-sale long-life advisory service.

5. Our company has spare parts which can be provided for the users with cost.

6. We provided users with after-sales value added technical service by preferential price for life,
