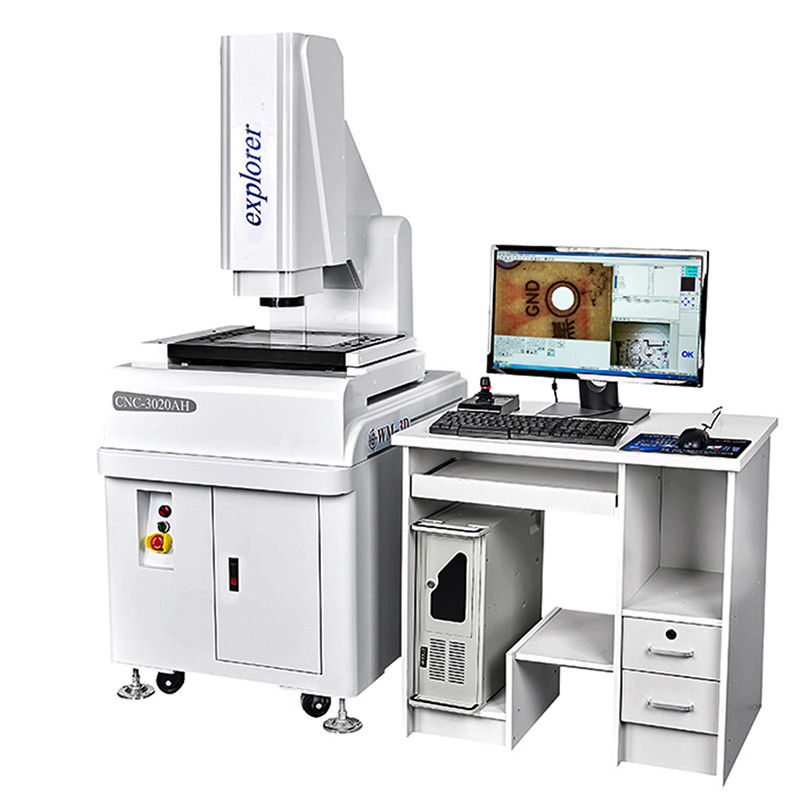

3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material
3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material
  • 3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material
  • 3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material
  • 3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material
  • 3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material
  • 3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material

3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-4030AH
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
WM-3D
Certification:
ISO9001
Model Number:
CNC-4030AH
Warranty:
1 Year
Customized Support:
OEM, ODM
Product Name:
China Manufacturer CE Certificate Optical Equipment 3d CNC Video Measuring Machine
Model:
CNC-4030AH
Color:
White
General Use:
Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material:
Granite
Usage:
Measuring
Weight:
350KG
Power Supply:
AC 220V/50-60Hz
Type:
Fully Automatic
Usage:
Optical System
Highlight:

High Light

Highlight:

Optical Image Dimension Measurement System

,

Image Dimension Measurement System CE

,

3D image measurement system

Trading Information
Minimum Order Quantity:
1
Price:
$14,000.00/sets
Packaging Details:
China Manufacturer CE Certificate Optical Equipment 3d CNC Video Measuring Machine Wooden Cases
Delivery Time:
2days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description
3D CNC Optical Image Dimension Measurement System
China Manufacturer CE Certificate Optical Equipment 3D CNC Video Measuring Machine
3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material 0
Technical Specifications
Items CNC-3020AH CNC-4030AH CNC-5040AH
Dimension (mm) (L×W×H) 700*850*1650 800*900*1650 900*1050*1650
Measuring range (mm) (X×Y×Z) 300*200*200 400*300*200 500*400*200
Measuring Accuracy (μm) 3+L/200 3+L/200 3+L/200
Repeatability (μm) 3 3 3
Weight (kg) 300 380 450
Image and Measuring System
CCD: Japanese SONY CCD
Lens: High definition zoom lens/Continuous magnification 0.7-5.0x
Magnification: 40-230X (For reference only. With different camera and lens the magnification will be different.)
Optical Scale Resolution: X/Y/Z axis 0.0002mm (0.2μm)
Working Distance: 108mm
Measurement Software
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving System
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination System
Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source. Different colors are added to different products.
Function Description
  • Graphics: Graphics zoom, graphics narrowing, graphics pan, graphics selected, select the circle, delete the graphic, graphic print. Zoom settings, set the image gray, saturation, contrast, save, images in BMP format.
  • A variety of edge finder mode, the computer automatically take points, automatic identification round, arc greatly improve mining point speed.
  • Image support S-Video, AV terminal, USB terminal input; image size of 640 * 480mm.
  • Measurement data directly into AutoCAD for statistical analysis, can draw simple Xbar-s control chart obtained various parameters Ca.
  • Multilingual interface switching.
3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material 1 3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material 2 3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material 3
Our Services
3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material 4
  • Warranty within 12 months from the time of receipt
  • During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
  • We provide life warranty services of machine for users with cost.
  • Extra warranty period: We will provide to user after-sale long-life advisory service.
  • Our company has spare parts which can be provided for the users with cost.
  • We provided users with after-sales value added technical service by preferential price for life.
Company Information
3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material 5 3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material 6
Packaging & Shipping
3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material 7
Frequently Asked Questions
3D Measurement CNC Video Measuring Machine with CE Certificate and Granite Material 8
Q1: What kind of equipment do you mainly produce?
A: Hello! Our main production equipment are: automatic image measuring instrument, manual image measuring instrument, large gantry image measuring instrument, one key measuring instrument. Automatic vision screening equipment, non-standard vision detection equipment, etc. Q2: Do you accept custom service? Can I print my logo on the machine?
A: Yes, all of our products can be customized, if you have a logo requirement, we can also customize for you. Q3: Why do you choose us?
A: 1. We have focused on the measurement of products for more than 10 years, with a professional R&D team and after-sales team.
2. It is located in Dongguan City, a world-famous manufacturing city.
3. After-sales service for 12 months, simple problems within 48 hours to deal with timely. Q4: What is your delivery time? What about the packing?
A: Our delivery time is 5 working days after receiving the deposit or order confirmation, and 10-20 working days for customized machines. Our packaging is wrapped and fixed with professional machine packaging film inside, and wooden box packaging and screw fixing are used on the outside. Ensure that the product arrives safely without damage. Q5: Is on-site training available?
A: Yes, the need for on-site training needs to confirm the specific time. Q6: What are your payment terms?
A: T/T 30% as a deposit, 70% before delivery. Before you pay the balance, we will show you the photos of the product and packaging. or 100% LC at sight. Q7: Can we test samples before placing an order?
A: Of course, we can test samples for free and provide you with a test report. If you have any difficulties, please contact our business manager.
