2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy

2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy
2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy

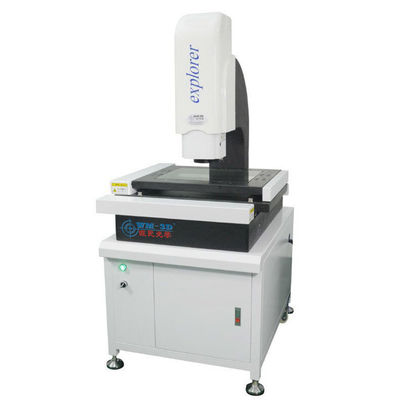

Large Image :  2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-5040
Payment & Shipping Terms:
Price: $25,000.00/sets 1-4 sets
Packaging Details: Fully automatic CNC 2D 2.5D 3D Image Instrument Optical Machine Vision Testing Equipment Video Measuring System<br>CNC-5040WM Image Test Machine <br>Wooden case size:1450*1700*2300mm
Supply Ability: 100 Set/Sets per Month

2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy

Description
Warranty: 1 Year Customized Support: OEM, ODM
Name: Low Price In India Industrial Fully Automatic Video Measuring System Accuracy: 3um
Velocity: 200mm/s Function: Measuring And Detect
General Use: Electrics,plastics,mold,machinery,connectors And Mobile Color: White
Power: 220V /50HZ Product Name: Low Price In India Industrial Fully Automatic Video Measuring System
Port: Shenzhen
High Light:

3D Image Dimension Measurement System

,

2.5D Image Dimension Measurement System

,

3d measuring instrument 3um

Fully automatic CNC 2D 2.5D 3D Image Instrument Optical Machine Vision Testing Equipment Video Measuring System

Product Description



2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 0

Model

CNC-5040



Glass table Size







530*430



Metal table Size

700*600



Working travel X.Y

500*400



Z-axis travel lift(mm)

200 focus



X.Y.Z-axis digital display resolution

0.5um



X.Y axis value error

≤(3+L/200)L is the measured length,unit mm)



Weight(kg)

720



Dimession

900*1050*1650

Motor

Three axis velocity

100mm/s



Three axis positioning accuracy

0.001mm

Image system

Camare

Sony color 1/3″CCD camera



Zoom

 coaxial optical zoom lens with a zoom lens (2 select one)



Zoom magnification

0.7-4.5X



Video total magnification

30-230X



Objector field

11.1-1.7mm



Power

AC220V/AC110V



Power consumption

100W

Insreument accessories

1Xtube(option)

0.5Xtube(option)

Working distance

Zoom lens

0.7-4.5X

0.7-4.5X



Add lens

Video magnification

Material side field(mm)

Video magnification

Material side field(mm)



0.5X option

11.8X-74X

22-3.4

5.9X-37X

44-6.8

175

Standard

23.5X-148X

11.1-1.7X

11.8X-74X

22-3.4

92

2Xoption

47X-296X

5.5-0.9

23.5X-148X

11.1-1.7

36





1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.
2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.
3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
4. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
5. With marble platform, high stability.

2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 1
2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 2
2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 3

Functions



2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 4
2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 5Mainly for metallograhpic measurement & analysis!These "Universal" models combine a measuring stand with the best of metallurgical microscope components for high resolution imaging and critical measurements. Featuring the full range of advanced infinity objectives and microscopy techniques including: brightfield,darkfield, DIC contrast, polarizing and epifluorescence.Up to five objectives may bemounted on the nosepiece.With more usages if upgraded.
Our Services

2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 6

1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free,except ticket and accommodation.
4. Extra warranty period: We will provide to user after-sale long-life advisory service

5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sale value added technical service by preferential price for life.
Company Information

2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 7

2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 8

Certifications

2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 9

1.our software through the national professional organization of standard measurement certification.

2.our machines can give HSR agency  of standard measurement certification.
Packaging & Shipping

2D 2.5D 3D Image Dimension Measurement System Instrument 3um Accuracy 10
