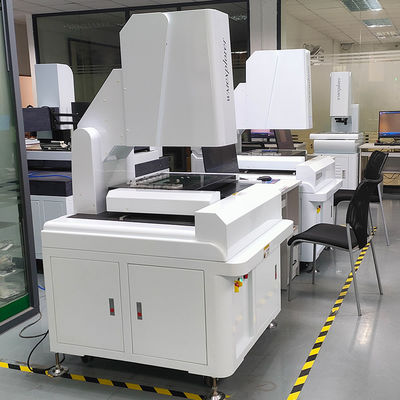

Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement
Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement
  • Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement
  • Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement
  • Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement
  • Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement
  • Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement

Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-3020AH
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
WM-3D
Certification:
ISO9001
Model Number:
CNC-3020AH
Warranty:
1 Year
Customized Support:
OEM, ODM
Product Name:
Guangdong Automatic Image Measuring Instrument CNC Video Measuring System
Model:
CNC-3020AH
Color:
White
General Use:
Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material:
Granite
Usage:
Measuring
Weight:
300KG
Power Supply:
AC 220V/50-60Hz
Type:
Fully Automatic
Usage:
Optical System
Highlight:

High Light

Highlight:

Automatic Image Dimension Measurement System

,

Image Dimension Measurement System CNC

,

CNC Video Measuring System OEM

Trading Information
Minimum Order Quantity:
1
Price:
$13,000.00/sets
Packaging Details:
Guangdong automatic image measuring instrument CNC video measuring system Wooden Cases
Delivery Time:
2days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description
Automatic Image Dimension Measurement System
CNC Video Measuring System OEM
Guangdong automatic image measuring instrument CNC video measuring system
Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement 0
Technical Specifications
Items CNC-3020AH CNC-4030AH CNC-5040AH
Dimension(mm)(L×W×H) 700*850*1650 800*900*1650 900*1050*1650
Measuring range(mm)(X×Y×Z) 300*200*200 400*300*200 500*400*200
Measuring Accuracy(μm) 3+L/200 3+L/200 3+L/200
Repeatability (μm) 3 3 3
Weight(kg) 300 380 450
Image and Measuring System
CCD: Japanese SONY CCD
Lens: High definition zoom lens/Continuous magnification 0.7-5.0x
Magnification: 40-230X (Reference only - varies with camera and lens configuration)
Optical Scale Resolution: X/Y/Z axis 0.0002mm (0.2μm)
Working Distance: 108mm
Measurement Software
Combines 3D measurement software developed with imported software functions to improve boundary resolution.
Driving System
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination System
Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source. Different colors are added to different products.
User Interface Characteristics
  • Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically
  • Enables quick and friendly communication between operator and instrument
  • Significantly improves human measurement speed
  • Graph function key: Black
  • Graph constructive key: Red
  • Visual tool function key: Black and Green
Function Description
Element Measurement
Measuring points, lines, circles, arcs, angles, oval, rectangle measuring a predetermined number of points, automatic identification points, lines, circles, arcs.
Element Structure
Center construction, intersection construction, midpoint structure, line structure, round structure, angle configuration.
Preset Elements
Points, lines, circles, arcs. Coordinate translation, workpiece straightening, any axis coordinate system reset.
Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement 1
System Advantages
  • High-precision fully automatic measurement with CNC four-axis control
  • High-precision and high-strength machine: 00-class marble base/column/workbench for superior stability
  • XYZ three-axis imported precision linear guide and grinding grade ball screw drive system
  • Long service life with excellent stability at 0.2μm precision
  • High precision metal patch ruler at 0.2μm
  • WM0750 automatic zoom optical lens enables fully automatic measurement without zoom correction
  • HD SONY CCD camera with high quality measurement screen
  • Autofocus measurement, optical altimetry flatness
  • UK RENISHAW contact probe
  • Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source
  • Equipped with joystick for easy operation at any position
  • Navigation CCD camera for quick position location and convenient measurement
  • Combined 3D measurement software with imported functions for improved boundary resolution
Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement 2 Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement 3
Service & Support
Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement 4
  • 12-month warranty from receipt date
  • Comprehensive phone and internet teaching with combined after-sales advisory service
  • Lifetime warranty services for machine users (cost-based)
  • Spare parts available for users at cost
  • Lifetime after-sales value-added technical service at preferential prices
Company Information
Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement 5 Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement 6
Packaging & Shipping
Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement 7
Frequently Asked Questions
Fully Automatic High Precision CNC Video Measuring System with Granite Material for Accurate Dimension Measurement 8
