Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring

Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring
Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring

Large Image :  Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-3020AH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $13,000.00/sets
Packaging Details: PCB Mobile measuring Inspection 2d optical video measuring machine Wooden Cases
Delivery Time: 2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

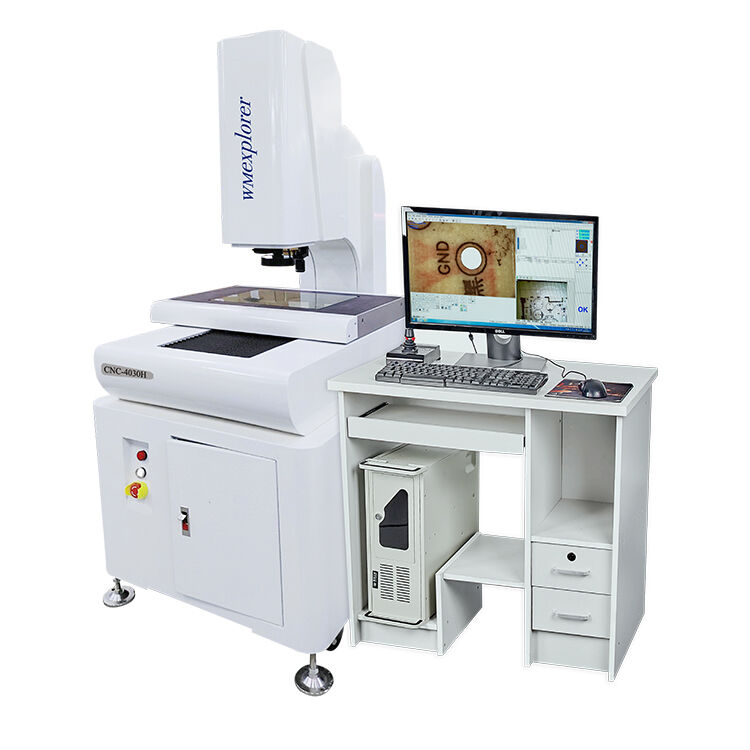

Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring

Description
Warranty: 1 Year Customized Support: OEM, ODM
Product Name: PCB Mobile Measuring Inspection 2d Optical Video Measuring Machine Model: CNC-3020AH
Color: White General Use: Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material: Granite Usage: Measuring
Weight: 300KG Power Supply: AC 220V/50-60Hz
Type: Fully Automatic Usage: Optical System
High Light:

Optical 2d Measuring Machine

,

Video 2d Measuring Machine

,

PCB 2d measuring instrument

PCB Mobile measuring Inspection 2d optical video measuring machine

Products Description
Optical Video 2D Measuring Machine Instrument For PCB Mobile Measuring 0
Items
CNC-3020AH
CNC-4030AH
CNC-5040AH
Dimension(mm)(L×W×H)
700*850*1650
800*900*1650
900*1050*1650
Measuring range(mm)(X×Y×Z)
300*200*200
400*300*200
500*400*200
Measuring Accuracy(μm
3+L/200
3+L/200
3+L/200
Repeatability (μm)
3
3
3
Weight(kg)
300
380
450
Image and Measuring
CCD
Japanese SOnYCcD

Len
High definition zoomlens/Continuous magnification 0.7-5.0x

Magnification
40-230X( For reference only. With different camera and lens the magnification will be different. )

ptical scale resolution
x/Y/z axis o.0002mm ( 0.2um )

Working distance
108mm
Measurement software
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving system
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination
Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are
added to different products.
