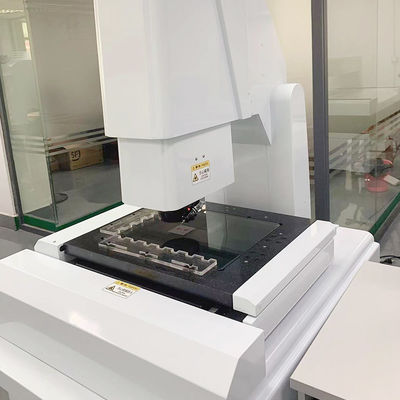

220V 50Hz High Accuracy Fully Automatic Image Dimension Measurement System and Optical Measurement Instrument

Name: 220V 50Hz High Accuracy Fully Automatic Image Dimension Measurement System and Optical Measurement Instrument
Brand: Dongguan Wang Min Optical Instrument Co., Ltd.
SKU: CNC-3020AH
Price: 6.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WM-3D
Certification:	ISO9001
Model Number:	CNC-3020AH

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

WM-3D

Certification:

ISO9001

Model Number:

CNC-3020AH

Warranty:

1 Year

Customized Support:

OEM, ODM

Product Name:

High Accuracy Easy Operation Optical CNC Machines Video Measurement Instrument

Model:

CNC-3020AH

Color:

White

General Use:

Electronices ,plastics,mold,machinery,hardware,clocks,mobile

Material:

Granite

Usage:

Measuring

Weight:

300KG

Power Supply:

AC 220V/50-60Hz

Type:

Fully Automatic

Usage:

Optical System

Highlight:

High Light

Highlight:

50hz Image Dimension Measurement System

220V Image Dimension Measurement System

Optical Measurement Instrument ODM

Trading Information

Minimum Order Quantity:

Price:

$13,000.00/sets

Packaging Details:

High Accuracy Easy Operation Optical CNC Machines Video Measurement Instrument Wooden Cases

Delivery Time:

2days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

220V 50Hz Image Dimension Measurement System - Optical Measurement Instrument ODM

High Accuracy Easy Operation Optical CNC Video Measurement Instrument

Items	CNC-3020AH	CNC-4030AH	CNC-5040AH
Dimension (mm) L×W×H	700×850×1650	800×900×1650	900×1050×1650
Measuring Range (mm) X×Y×Z	300×200×200	400×300×200	500×400×200
Measuring Accuracy (μm)	3+L/200	3+L/200	3+L/200
Repeatability (μm)	3	3	3
Weight (kg)	300	380	450

Component	Specification
Image and Measuring	CCD \| Japanese Sony CCD
Lens	High definition zoom lens / Continuous magnification 0.7-5.0x
Magnification	40-230X (Reference only - varies with camera and lens configuration)
Optical Scale Resolution	X/Y/Z axis 0.0002mm (0.2μm)
Working Distance	108mm

System Component	Specification
Measurement Software	Combines 3D measurement software with imported software functions to enhance boundary resolution
Driving System	X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination	Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source with color variations for different products

Key Characteristics

Multiple measurement methods including automatic discriminant, mining point measuring, contrast measurement, tolerance measurement comparison, and preset element functions
Single point sampling with various mouse reticle edge points and amplified point measurement
Closed perimeter measurement of cloud lines, area, and center of gravity using triple interpolation algorithm for maximum accuracy
Box selection measurement for multiple rounds - fast and accurate multi-round measurement
Data export capabilities: Save measured data as DXF files or BMP images in user program format
Measurement of 12 element types: point, line, circle, arc, ellipse, rectangle, trough, O shape, distance and angle, open cloud cloud line and closing lines

After-Sales Service Commitment

Wangmin Optical Instrument

Purchase and Consulting

From proper selection to sample testing, from installation site surveys to fixture system configuration - experienced sales and service engineers provide comprehensive guidance through nationwide service centers.

Service and Retrofit

Our measuring machine maintenance specialists provide regular system maintenance, adjustment, and calibration to ensure optimal performance while minimizing maintenance costs and extending system lifespan.

Transformation and Upgrading

Keep your measurement system in optimal technical condition through complete upgrades of control systems, measurement software, probe systems, and transmission systems.

Installation and Warranty

Nationwide service centers provide timely installation and machine acceptance using standardized processes. Product warranty services include 4-hour telephone response and 8-hour door-to-door service.

Training Services

Comprehensive training covering all customer needs from basic operation to advanced professional training, including customized special training programs.

On-site one-on-one training with qualification certification
Detailed machine usage and software function documentation
Training CDs and installation media for direct viewing
Company network teaching videos for convenient learning
Multimedia remote teaching for quick problem resolution

Company Information

Packaging & Shipping

Frequently Asked Questions

Q1: What kind of equipment do you mainly produce?

A: Our main production equipment includes: automatic image measuring instruments, manual image measuring instruments, large gantry image measuring instruments, one-key measuring instruments, automatic vision screening equipment, and non-standard vision detection equipment.

Q2: Do you accept custom service? Can I print my logo on the machine?

A: Yes, all our products can be customized, including logo printing according to your requirements.

Q3: Why do you choose us?

A1: Over 10 years of specialized measurement product experience with professional R&D and after-sales teams.

A2: Located in Dongguan City, a world-renowned manufacturing hub.

A3: 12-month after-sales service with 48-hour resolution for simple issues.

Q4: What is your delivery time? What about the packing?

A: Standard delivery: 5 working days after deposit/order confirmation. Custom machines: 10-20 working days. Professional packaging with internal film wrapping and external wooden box with screw fixing for safe delivery.

Q5: Is on-site training available?

A: Yes, on-site training is available with specific timing coordination.

Q6: What are your payment terms?

A: T/T 30% deposit, 70% before delivery with product photos provided. Alternatively, 100% LC at sight.

Q7: Can we test samples before placing an order?

A: Yes, we provide free sample testing with detailed test reports. Contact our business manager for assistance.
