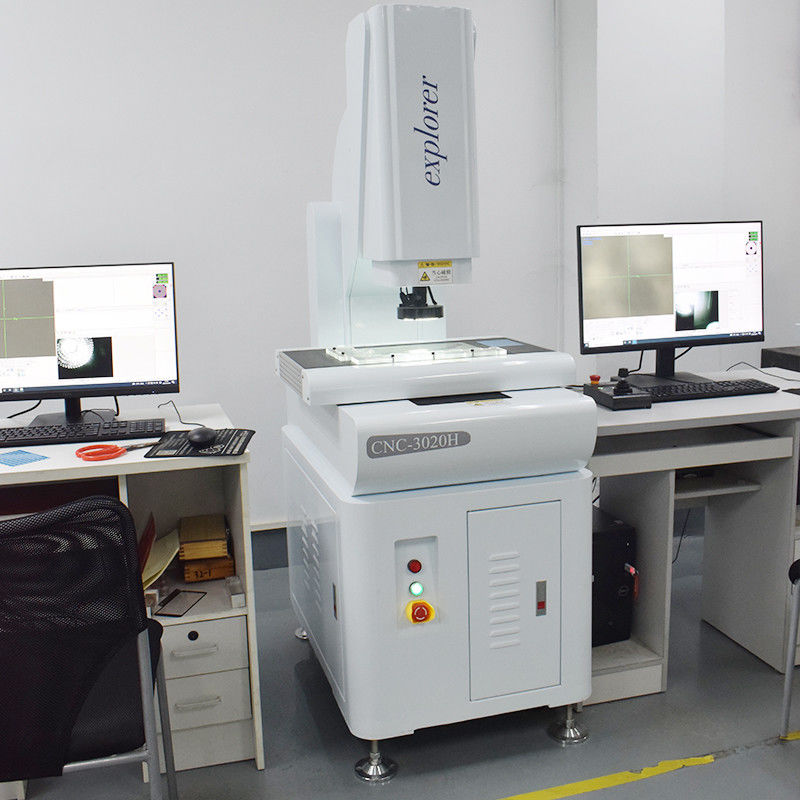

Fully Auto Image Dimension Measurement System ISO9001 Certified
CNC-5040AH Vision Measurement Machine Manufacturer
Product Overview
The image measuring instrument accurately measures points, lines, circles, and other geometric elements with powerful report output functionality. This system is particularly suitable for high-volume production environments requiring precise dimensional verification across a wide range of products.
Industry Applications
Widely used in machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision hardware, precision stamping, connectors, terminals, mobile phones, home appliances, computers, LCD televisions, printed circuit boards (PCB), automotive, medical equipment, clocks, instruments, and various other industrial sectors.
Measurement Objects
LCD panels, FPC, PCB, circuit boards, screws, springs, watches, meters, connectors, terminals, gears, cams, threads, radius templates, thread templates, wires and cables, tools, bearings, hardware components, stamping parts, screens, test screens, cement screens, mesh panels, and SMT templates.
Measurable Elements
Length, width, height, hole distance, spacing, pin spacing, thickness, arc, diameter, radius, groove, angle, and R angle measurements.
Technical Specifications
| Items |
CNC-3020AH |
CNC-4030AH |
CNC-5040AH |
| Dimension (mm) (L×W×H) |
700×850×1650 |
800×900×1650 |
900×1050×1650 |
| Measuring Range (mm) (X×Y×Z) |
300×200×200 |
400×300×200 |
500×400×200 |
| Measuring Accuracy (μm) |
3+L/200 |
3+L/200 |
3+L/200 |
| Repeatability (μm) |
3 |
3 |
3 |
| Weight (kg) |
300 |
380 |
450 |
Imaging & Measurement System
CCD: Japanese SONY CCD
Lens: High definition zoom lens with continuous magnification 0.7-5.0x
Magnification: 40-230X (Reference only - varies with camera and lens configuration)
Optical Scale Resolution: X/Y/Z axis 0.0002mm (0.2μm)
Working Distance: 108mm
Measurement Software
Combines 3D measurement software developed with imported software functionality to improve boundary resolution and measurement accuracy.
Driving System
X/Y/Z three-axis high-performance Taiwan servo motor with double closed-loop control system for precise positioning.
Illumination System
Program-controlled five-ring eight-zone surface light source, LED contour light source, and coaxial light source. Different colors are available for various product measurement requirements.
Our Advantages
- High-precision fully automatic measurement with CNC four-axis control
- High-precision, high-strength machine construction with 00-class marble base/column/workbench for superior stability
- XYZ three-axis imported precision linear guides and grinding-grade ball screw drive system
- 0.2μm high precision metal patch ruler
- WM0750 automatic zoom optical lens enables fully automatic measurement without zoom correction
- HD SONY CCD camera with high-quality measurement screen and autofocus capability
- Optical altimetry flatness measurement
- UK RENISHAW contact probe integration
- Program-controlled five-ring eight-zone surface light source, LED contour light source, and coaxial light source
- Joystick control for convenient operation from any position
- Navigation CCD camera for quick position location and measurement efficiency
- Advanced 3D measurement software with enhanced boundary resolution
Our Services
- 12-month warranty from date of receipt
- Comprehensive phone and internet technical support with combined after-sales advisory service
- Lifetime warranty services for machine components (cost-based)
- Free technical service for machine failures caused by manufacturer (excluding travel and accommodation)
- Lifetime after-sales advisory service
- Cost-based spare parts availability
- Lifetime value-added technical services at preferential prices
