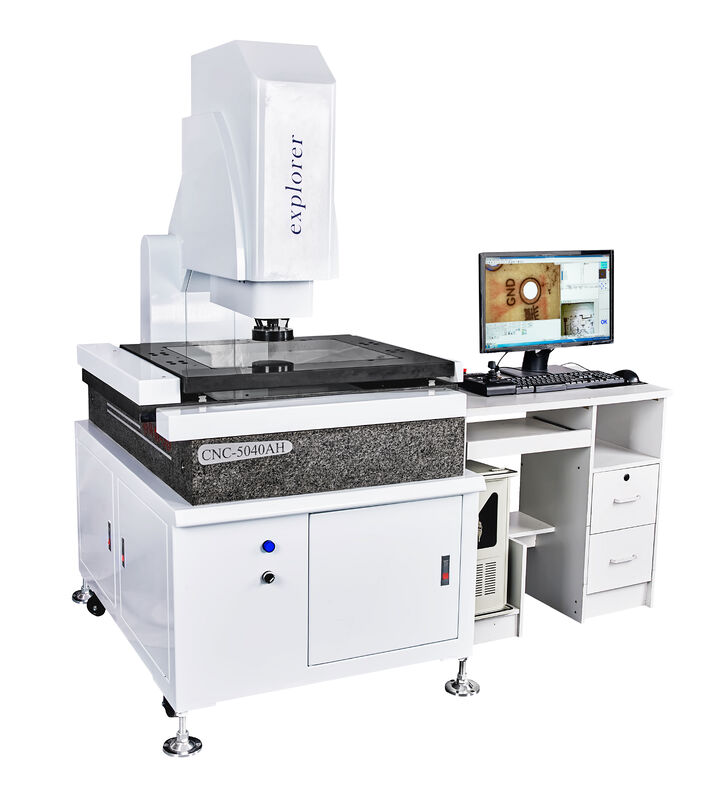

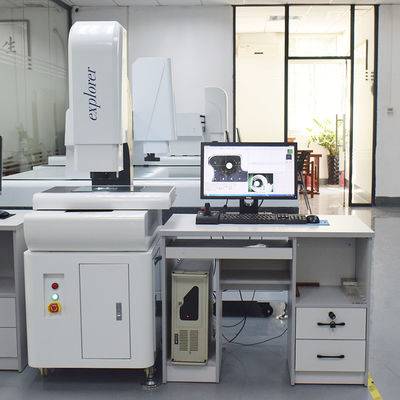

Granite CNC Vision Measuring Machine For Plastics Mold Multifunctional

Large Image : Granite CNC Vision Measuring Machine For Plastics Mold Multifunctional

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WM-3D
Certification:	ISO9001
Model Number:	CNC-3020AH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$13,000.00/sets
Packaging Details:	CNC-3020AH Manufacturer Vision measurement machine Wooden Cases
Delivery Time:	2days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Granite CNC Vision Measuring Machine For Plastics Mold Multifunctional

Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Product Name:	CNC-3020AH Manufacturer Vision Measurement Machine	Model:	CNC-3020AH
Color:	White	General Use:	Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material:	Granite	Usage:	Measuring
Weight:	300KG	Power Supply:	AC 220V/50-60Hz
Type:	Fully Automatic	Usage:	Optical System
High Light:	Granite CNC Vision Measuring Machine , Plastics CNC Vision Measuring Machine , Multifunctional vision measurement system

CNC-3020AH Manufacturer Vision measurement machine

Products Description

Items	CNC-3020AH	CNC-4030AH	CNC-5040AH
Dimension(mm)(L×W×H)	7008501650	8009001650	90010501650
Measuring range(mm)(X×Y×Z)	300200200	400300200	500400200
Measuring Accuracy(μm	3+L/200	3+L/200	3+L/200
Repeatability (μm)	3	3	3
Weight(kg)	300	380	450

Image and Measuring	CCD	Japanese SOnYCcD
		Len	High definition zoomlens/Continuous magnification 0.7-5.0x
		Magnification	40-230X( For reference only. With different camera and lens the magnification will be different. )
		ptical scale resolution	x/Y/z axis o.0002mm ( 0.2um )
		Working distance	108mm

Measurement software	Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving system	X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination	Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are added to different products.

Our Advantages

High-precision fully automatic measurement, CNC four-axis control.

High-precision and high-strength machine: 00-class marble base/column/workbench with high precision and good stability

XYZ three-axis imported precision linear guide / imported grinding grade ball screw drive system, long life and good stability.0.2um.High precision metal patch ruler o.2um.

The Wm0750 automatic zoom opticallens enables fully automatic measurement without the need for zoom correction. HD SONY CcD camera with high quality measurement screen Autofocus measurement, optical altimetry flatness, UK RENISHAW contact probe, Program-controlled five-ring eight-zone surace light souceLED contour light source, coaxial light source.Different colors are added to different products. It is equipped with a joystick for easy operation at any position. The navigation CCD camera indicates the measurement position, which is quick to locate and convenient for measurement. Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
