High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement
  • High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement
  • High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement
  • High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement
  • High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement
  • High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement
  • High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement

High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-4030AH
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
WM-3D
Certification:
ISO9001
Model Number:
CNC-4030AH
Warranty:
1 Year
Customized Support:
OEM, ODM
Product Name:
High Precision Image Dimension Measurement System
Model:
CNC-4030AH
Color:
White
General Use:
Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material:
Granite
Usage:
Measuring
Weight:
380KG
Power Supply:
AC 220V/50-60Hz
Type:
Fully Automatic
Usage:
Optical System
Highlight:

High Light

Highlight:

Optical 3D Measuring Instrument

,

3D Measuring Instrument OEM

,

3d measuring equipment ODM

Trading Information
Minimum Order Quantity:
1
Price:
$13,000.00/sets
Packaging Details:
WM-3D second-generation software is used to measure plastic molds quickly and efficiently video measuring machine
optical measuring instrumentSize; 700*-850*1650
optical measuring instrumentWeight; 300kg
Delivery Time:
2days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description
Optical 3D Measuring Instrument Equipment - High Precision OEM ODM
Advanced 3D Image Dimension Measurement System for industrial applications

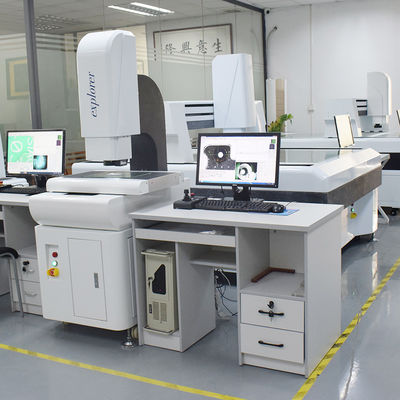

High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement 0
Technical Specifications
Items CNC-3020AH CNC-4030AH CNC-5040AH
Dimension (mm) L×W×H 700×850×1650 800×900×1650 900×1050×1650
Measuring Range (mm) X×Y×Z 300×200×200 400×300×200 500×400×200
Measuring Accuracy (μm) 3+L/200 3+L/200 3+L/200
Repeatability (μm) 3 3 3
Weight (kg) 300 380 450
Image and Measuring System
  • CCD: Japanese SONY CCD
  • Lens: High definition zoom lens with continuous magnification 0.7-5.0x
  • Magnification: 40-230X (Reference only - varies with camera and lens configuration)
  • Optical Scale Resolution: X/Y/Z axis 0.0002mm (0.2μm)
  • Working Distance: 108mm
Measurement Software
Combines 3D measurement software developed with imported software functionality to enhance boundary resolution.
Driving System
X/Y/Z three-axis high performance Taiwan servo motor with double closed loop control system
Illumination System
Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source. Different colors available for various products.
High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement 1
Key Advantages
  • High-precision fully automatic measurement with CNC four-axis control
  • High-precision, high-strength machine construction with 00-class marble base/column/workbench
  • XYZ three-axis imported precision linear guide and grinding grade ball screw drive system
  • 0.2μm high precision metal patch ruler
  • WM0750 automatic zoom optical lens enables fully automatic measurement without zoom correction
  • HD SONY CCD camera with high quality measurement screen
  • Autofocus measurement with optical altimetry flatness
  • UK RENISHAW contact probe compatibility
  • Navigation CCD camera for quick position location and convenient measurement
  • Joystick control for easy operation from any position
High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement 2
Industry Applications
Widely used in hardware products, stamping products, electronic products, machining products, molds, connectors, wires, plastic products, clocks and watches, mobile phones, LCD TV, home appliances, printed circuit boards (PCB), automotive, aviation, and other industrial sectors.
Software Development
Our automatic measurement software combines over 10 years of industry experience with carefully researched professional 2D measuring software. Designed for simple operation, powerful functionality, stability, reliability, and easy maintenance. Incorporates best practices from leading international software solutions including US OGP MeasureMindPlus multi-sensor software and MicroVu measuring software.
Service & Support
High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement 3
  • 12-month warranty from receipt date
  • Comprehensive phone and internet teaching with combined after-sales advisory service
  • Lifetime warranty services available (cost-based)
  • Free technical service for machine failures caused by our side
  • Lifetime after-sales advisory service
  • Spare parts available for purchase
  • Lifetime value-added technical services at preferential prices
Company Information
High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement 4 High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement 5
Packaging & Shipping
High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement 6
Frequently Asked Questions
High Precision Fully Automatic CNC Vision Measuring Machine with Granite Material for Optical 3D Measurement 7
