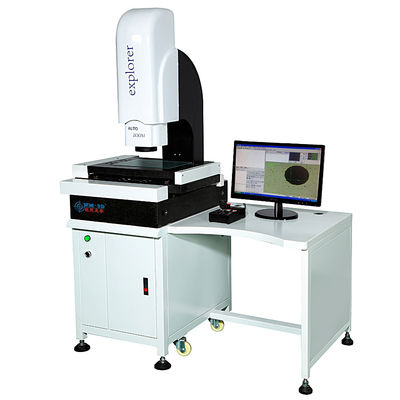

Large Image :  China Supplier optical image measuring instrument

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-4030AH
Payment & Shipping Terms:
Price: $20,000.00/sets 1-4 sets
Packaging Details: China Supplier optical image measuring instrument CNC dimens measur automat machine bevel gear dimension inspection machine<br>Lab equipment video measuring machine<br>Export wooden box packaging

China Supplier optical image measuring instrument

Description
Warranty: 1year Customized Support: OEM, ODM
Color: White Material: Granite
Weight: 380kg Model: CNC-4030AH
Business Type: Maufacturer X/Y Axis Travel: 400*300
Metal Table Size: 550*450 Glass Table Size: 430*330
Transmission Type: X/Y/Z Axis Precision Linear Guide / Grinding Machine Ball Screw Port: Shenzhen

China Supplier optical image measuring instrument CNC dimens measur automat machine bevel gear dimension inspection machine

Product Description

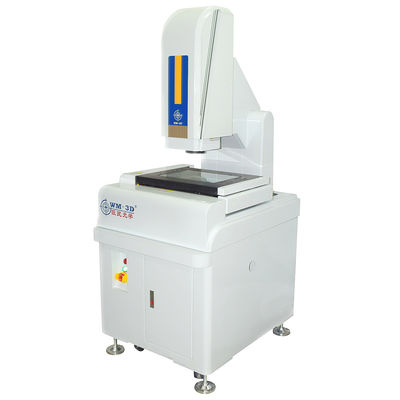

China Supplier optical image measuring instrument 0

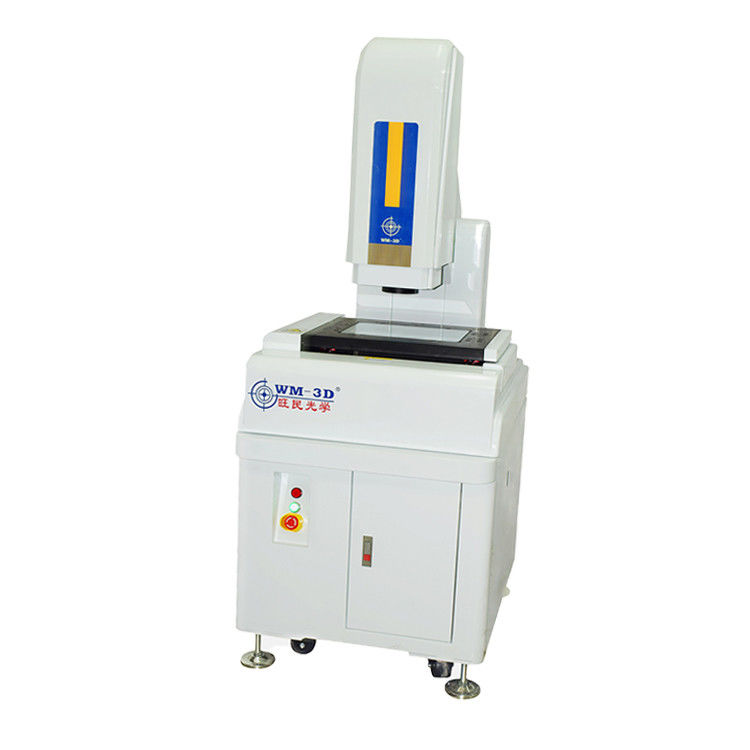

China Supplier optical image measuring instrument 1

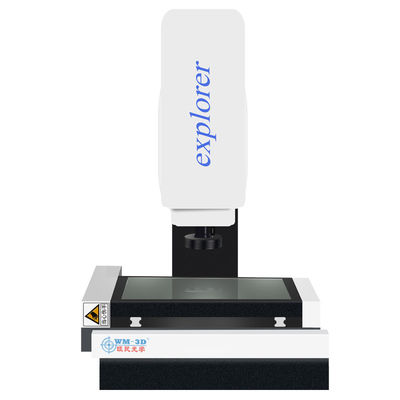

China Supplier optical image measuring instrument 2

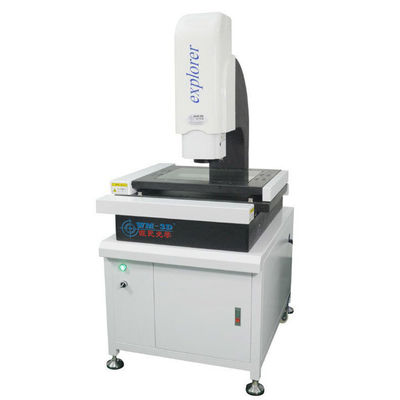

China Supplier optical image measuring instrument 3

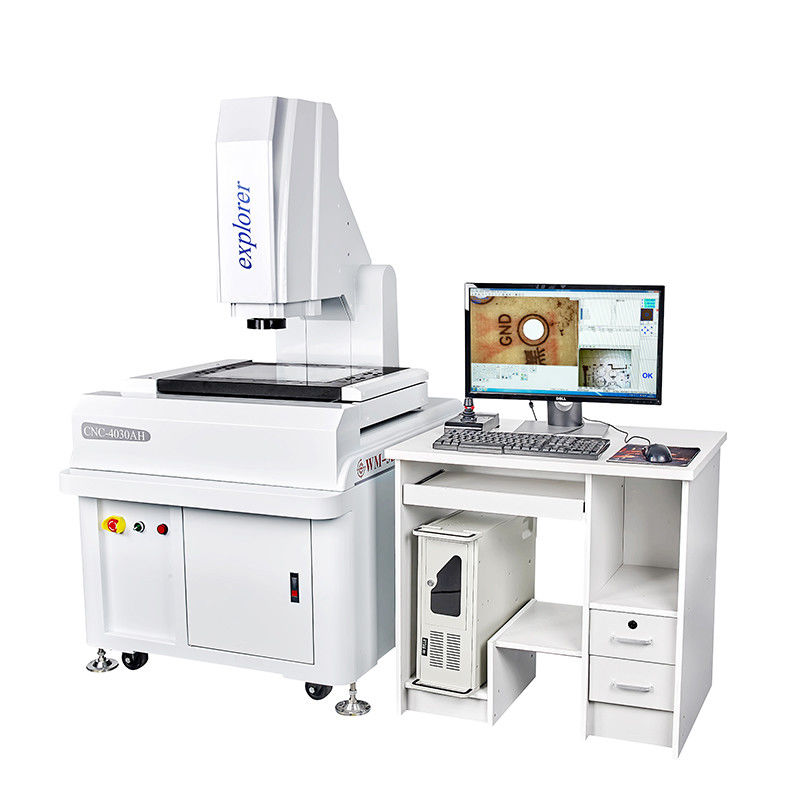

China Supplier optical image measuring instrument 4

Model

CNC-4030



Glass table Size(mm)







430*330



Metal table Size(mm)

550*450



Working travel X.Y

400*300



Z-axis travel lift(mm)

200 focus



X.Y.Z-axis digital display resolution

0.5um



X.Y axis value error

≤(3+L/200)L is the measured length,unit mm)



Weight(KG)

500



Dimession(mm)

800*900*1650

Motor

Three axis velocity

100mm/s



Three axis positioning accuracy

0.001mm

Image system

Camare

Sony color 1/3″CCD camera



Zoom

 coaxial optical zoom lens with a zoom lens (2 select one)



Zoom magnification

0.7-4.5X



Video total magnification

30-230X



Objector field

11.1-1.7mm



Power

AC220V/AC110V



Power consumption

100W

Insreument accessories

1Xtube(option)

0.5Xtube(option)

Working distance

Zoom lens

0.7-4.5X

0.7-4.5X



Add lens

Video magnification

Material side field(mm)

Video magnification

Material side field(mm)















0.5X option

11.8X-74X

22-3.4

5.9X-37X

44-6.8

175

Standard

23.5X-148X

11.1-1.7X

11.8X-74X

22-3.4

92

2Xoption

47X-296X

5.5-0.9

23.5X-148X

11.1-1.7

36

 Automaticimage measuring instrumentis a high performance pricemeasuring  equipment developed by our company. It can realize high efficiency and accurate measure large quantities of workpieces. It is suitable for the inspection and quality control of precision parts. In the machinery, electronics, hardware, plastics and other industries have been widely used.



Features

1.High-precision fully automatic measurement, CNC four-axis control.
2.High-precision and high-strength machine: 00-class marble base/column/workbench with high precision and good stability
3.XYZ three-axis imported precision linear guide /imported grinding grade ball screw drive system, long life and good stability
4.The Wm0750 automatic zoom optical lens enables fully automatic measurement without the need for zoom correction.
5.HD SONY CCD camera with high quality measurement screen.
6.Autofocus measurement, optical altimetry flatness, UK RENISHAW contact probe.
7.Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source. Different colors are added to different products.
8.It is equipped with a joystick for easy operation at any position.
9.The navigation CCD camera indicates the measurement position, which is quick to locate and convenient for measurement
10.Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
11.Available in a variety of specifications: such as CNC-3020AH, CNC-4030AH, CNC-5040AH.

feature

1. Double closed-loop motion control, motor in high-speed movement with precise positioning        performance.

2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.

3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.

4. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.

5. With marble platform, high stability.

Functions

specification:
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. It has many features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
4. Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.
5. Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.
6. Measurement data directly input into AutoCAD and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
7. Record user program, editing and execute command.
