Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-3020AH
Payment & Shipping Terms:
Price: $18,000.00/sets 1-4 sets
Packaging Details: Low price 3D CNC optical measuring machine optical machinery measure machine<br>CNC-3020WM Image Test Machine <br>Wooden case size:1250*1350*2150mm

200mm/S Image Dimension Measurement System , 3um Optical Measuring Machine ISO9001

Description
Warranty: 1 Year Customized Support: OEM, ODM

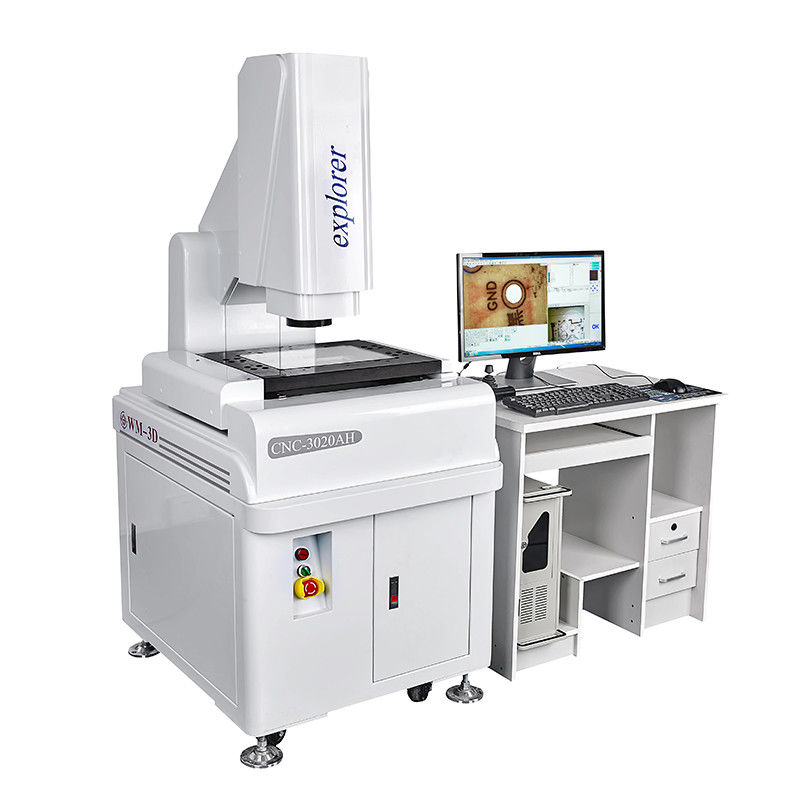

Name: Low Price 3D CNC Optical Measuring Machine Accuracy: 3um
Velocity: 200mm/s Function: Measuring And Detect
General Use: Electrics,plastics,mold,machinery,connectors And Mobile Color: White
Power: 220V /50HZ Product Name: Low Price 3D CNC Optical Measuring Machine
High Light:

200mm/S Image Dimension Measurement System

,

Image Dimension Measurement System ISO9001

,

3um Optical Measuring Machine

Low price 3D CNC optical measuring machine optical machinery measure machine

Product Description



200mm/S Image Dimension Measurement System , 3um Optical Measuring Machine ISO9001 0

200mm/S Image Dimension Measurement System , 3um Optical Measuring Machine ISO9001 1



1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.
2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.
3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
4. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
5. With marble platform, high stability.

Model

CNC-3020



Glass table Size



330*230



Metal table Size

350*250



Working travel X.Y

300*200



Z-axis travel lift(mm)

200 focus



X.Y.Z-axis digital display resolution

0.5um



X.Y axis value error

≤(3+L/200)L is the measured length,unit mm)



Weight(kg)

720



Dimession

700*900*1650

Motor

Three axis velocity

100mm/s



Three axis positioning accuracy

0.001mm

Image system

Camare

Sony color 1/3″CCD camera



Zoom

 coaxial optical zoom lens with a zoom lens (2 select one)



Zoom magnification

0.7-4.5X



Video total magnification

30-230X



Objector field

11.1-1.7mm



Power

AC220V/AC110V



Power consumption

100W

Insreument accessories

1Xtube(option)

0.5Xtube(option)

Working distance

Zoom lens

0.7-4.5X

0.7-4.5X



Add lens

Video magnification

Material side field(mm)



Video magnification

Material side field(mm)





0.5X option

11.8X-74X

22-3.4

5.9X-37X

44-6.8

175

Standard

23.5X-148X

11.1-1.7X

11.8X-74X

22-3.4

92

2Xoption

47X-296X

5.5-0.9

23.5X-148X

11.1-1.7

36

Functions



200mm/S Image Dimension Measurement System , 3um Optical Measuring Machine ISO9001 2
200mm/S Image Dimension Measurement System , 3um Optical Measuring Machine ISO9001 3Mainly for metallograhpic measurement & analysis!These "Universal" models combine a measuring stand with the best of metallurgical microscope components for high resolution imaging and critical measurements. Featuring the full range of advanced infinity objectives and microscopy techniques including: brightfield,darkfield, DIC contrast, polarizing and epifluorescence.Up to five objectives may bemounted on the nosepiece.With more usages if upgraded.
Specifications

1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.

2. It has many features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.

4. Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.

5. Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.

6. Measurement data directly input into AutoCAD and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
7. Record user program, editing and execute command.
