Image Dimension Measurement System
>

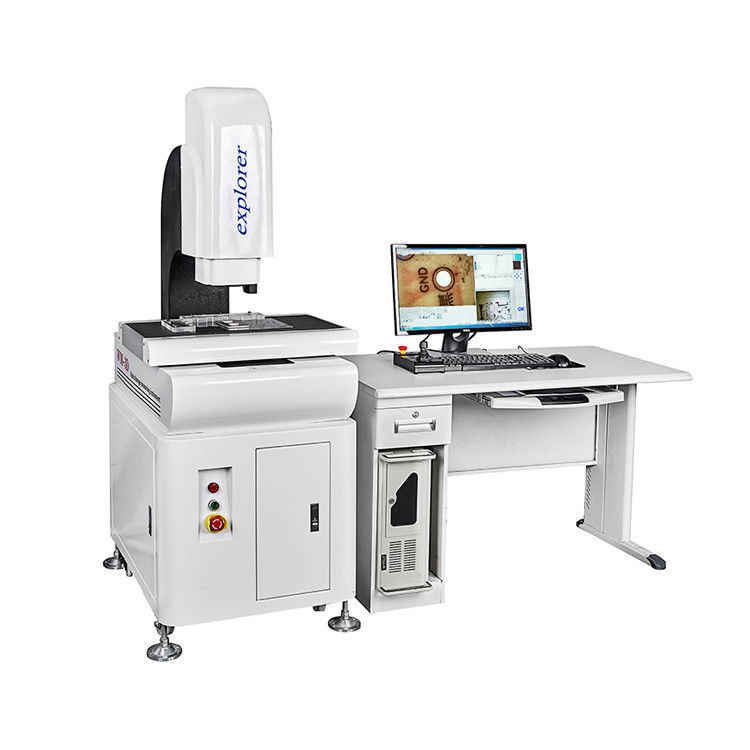

3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis
3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis
  • 3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis
  • 3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis
  • 3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis

3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-3020AH
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
WM-3D
Certification:
ISO9001
Model Number:
CNC-3020AH
Warranty:
1 Year
Customized Support:
OEM, ODM
Name:
Auto CNC Pad Accessories Measuring And Analysing Machine
Accuracy:
3um
Velocity:
200mm/s
Function:
Measuring And Detect
General Use:
Electrics,plastics,mold,machinery,connectors And Mobile
Color:
White
Power:
220V /50HZ
Product Name:
Auto CNC Pad Accessories Measuring And Analysing Machine
Highlight:

High Light

Highlight:

3um Image Dimension Measurement System

,

Image Dimension Measurement System Optical

,

Optical Measuring Machine 200mm/S

Trading Information
Price:
$18,000.00/sets 1-4 sets
Packaging Details:
Auto CNC Pad Accessories Measuring and Analysing Machine
CNC-3020WM Image Test Machine
Wooden case size:1250*1350*2150mm
Product Description
3μm Image Dimension Measurement System
Optical Measuring Machine with 200mm/s Speed
Product Overview
Auto CNC Pad Accessories Measuring and Analyzing Machine - Advanced optical measurement system for precision dimensional analysis.
3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 0 3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 1
Technical Specifications
Model CNC-3020
Glass Table Size 330×230mm
Metal Table Size 350×250mm
Working Travel X.Y 300×200mm
Z-axis Travel Lift 200mm focus
X.Y.Z-axis Digital Display Resolution 0.5μm
X.Y Axis Value Error ≤(3+L/200) where L is measured length in mm
Weight 720kg
Dimensions 700×900×1650mm
Motor Specifications
Three Axis Velocity 100mm/s
Three Axis Positioning Accuracy 0.001mm
Image System
Camera Sony color 1/3″ CCD camera
Zoom Coaxial optical zoom lens with zoom lens (2 select one)
Zoom Magnification 0.7-4.5X
Video Total Magnification 30-230X
Object Field 11.1-1.7mm
Power AC220V/AC110V
Power Consumption 100W
Instrument Accessories
Accessory Video Magnification Material Side Field (mm) Video Magnification Material Side Field (mm) Working Distance
0.5X Option 11.8X-74X 22-3.4 5.9X-37X 44-6.8 175
Standard 23.5X-148X 11.1-1.7X 11.8X-74X 22-3.4 92
2X Option 47X-296X 5.5-0.9 23.5X-148X 11.1-1.7 36
Key Features
  • Double closed-loop motion control for high-speed movement with precise positioning performance
  • Embedded motor control modules with USB and S-Video connectivity
  • Integrated CNC measurement software with SPC data analysis capabilities
  • Advanced surface light source with 24 independent groups and 200-step continuous variable control
  • Marble platform construction for enhanced stability and precision
Measurement Functions
3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 2 3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 3
Primarily designed for metallographic measurement and analysis, these universal models combine a measuring stand with premium metallurgical microscope components for high-resolution imaging and critical measurements. Features include advanced infinity objectives and microscopy techniques: brightfield, darkfield, DIC contrast, polarizing, and epifluorescence. Accommodates up to five objectives on the nosepiece with expanded usage capabilities when upgraded.
Technical Capabilities
Geometric Measurement
Precise measurement of points, lines, circles, arcs, ovals, and rectangles with multi-point positioning for enhanced accuracy.
Advanced Construction Features
Combination measurements, center structure, intersection of structure, midpoint construction, line structure, round structure, and angular point construction.
Efficiency Tools
Coordinate translation and straightening functions, macro programming for batch measurements, and automated data processing.
Software Integration
Direct data export to AutoCAD, Excel, and Word for comprehensive statistical analysis and reporting.
Warranty & Services
3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 4
  • 12-month comprehensive warranty with confidence guarantee
  • Coverage extends 12 months from assembly/acceptance or 15 months from shipment date
  • Phone and internet-based technical training and advisory services
  • Lifetime machine warranty with cost-based services
  • Free technical service visits (excluding travel and accommodation)
  • Lifetime after-sale advisory services and value-added technical support
  • Comprehensive spare parts availability
Company Information
3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 5 3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 6
Certifications
3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 7
  • Software certified by national professional standard measurement organizations
  • Machines compliant with HSR agency standard measurement certification requirements
Packaging & Shipping
3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 8
Frequently Asked Questions
3um Accuracy 200mm/s Velocity Optical Measuring Machine with SPC Data Analysis 9

Tags:

Image Dimension Measurement System Optical,

Electronics vmm measuring machine,

VMM Video Measuring Machine Automatic

similar products
Fully Automatic Granite High Precision 3um Image Dimension Measurement System CNC Video Measuring Machine

Fully Automatic Granite High Precision 3um Image Dimension Measurement System CNC Video Measuring Machine

Get Best Price
High Precision Fully Automatic Vision Measurement System with Granite Material for Metal Detection

High Precision Fully Automatic Vision Measurement System with Granite Material for Metal Detection

Get Best Price
Fully Automatic High Precision 0.1um Auto CNC Image Dimension Measurement System with Granite Material

Fully Automatic High Precision 0.1um Auto CNC Image Dimension Measurement System with Granite Material

Get Best Price
High Precision Optical Measuring Machine with 0.1um Resolution Fully Automatic CNC Video Measuring System in Granite Material Video

High Precision Optical Measuring Machine with 0.1um Resolution Fully Automatic CNC Video Measuring System in Granite Material

Get Best Price
220V 50Hz High Accuracy Fully Automatic Image Dimension Measurement System and Optical Measurement Instrument

220V 50Hz High Accuracy Fully Automatic Image Dimension Measurement System and Optical Measurement Instrument

Get Best Price
Fully Automatic CNC Optical Video Measuring System with High Precision 0.1um and Granite Material for Electronics and Plastics

Fully Automatic CNC Optical Video Measuring System with High Precision 0.1um and Granite Material for Electronics and Plastics

Get Best Price
Fully Automatic CNC Video Measuring Machine with High Precision 3+L/200μm and Granite Base for Optical Dimension Measurement

Fully Automatic CNC Video Measuring Machine with High Precision 3+L/200μm and Granite Base for Optical Dimension Measurement

Get Best Price
