Flatness Measuring Machine
>
Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement
Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement
  • Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement
  • Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement
  • Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement
  • Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement
  • Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement
  • Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement
  • Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement

Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-5040J
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
WM-3D
Certification:
ISO9001
Model Number:
CNC-5040J
Warranty:
1 Year
Customized Support:
OEM, ODM
Product Name:
Series Automatic Optical Image Measuring Test Equipment Tester Instrument
Model:
CNC-4030J
Color:
White
General Use:
Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material:
Granite
Usage:
Measuring
Weight:
350KG
Power Supply:
AC 220V/50-60Hz
Type:
Fully Automatic
Usage:
Optical System
Highlight:

High Light

Highlight:

Digital Flatness Measuring Machine

,

Flatness Measuring Machine OMM

,

Automatic OMM Optical Measurement Machine

Trading Information
Minimum Order Quantity:
1
Price:
$30,000.00/sets
Packaging Details:
Series Automatic Optical Image Measuring Test Equipment Tester Instrument Wooden Cases
Delivery Time:
2days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description
Digital Flatness Measuring Machine & Automatic OMM Optical Measurement Machine
Series Automatic Optical Image Measuring Test Equipment Tester Instrument

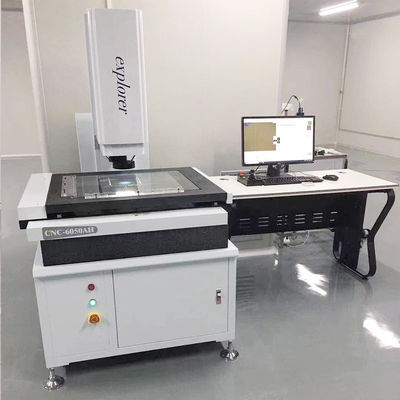

Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement 0
Technical Specifications
Items CNC-3020J CNC-4030J CNC-5040J
Dimension (mm) (L×W×H) 700×850×1650 800×900×1650 900×1050×1650
Measuring Range (mm) (X×Y×Z) 300×200×200 400×300×200 500×400×200
Measuring Accuracy (μm) 3+L/200 3+L/200 3+L/200
Repeatability (μm) 3 3 3
Weight (kg) 300 380 450
Image and Measuring System
CCD Japanese Sony CCD
Lens High definition zoom lens / Continuous magnification 0.7-5.0x
Magnification 40-230X (Reference only. Varies with camera and lens configuration)
Optical Scale Resolution X/Y/Z axis 0.0002mm (0.2μm)
Working Distance 108mm
Measurement Software
Combines 3D measurement software developed with imported software functions to improve boundary resolution.
Driving System
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination System
Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source. Different colors are added to different products.
Key Features
  • High precision and high strength machine: 00 marble base / upright column / worktable, high precision and good stability
  • XYZ three axis imported precision V type guide rail / imported optic axis drive system, long service life, good stability
  • Continuous zoom optical lens, different frames, different magnification, without zoom correction
  • HD Japanese Sony CCD camera, high quality measuring screen
  • Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe
  • Surface light, LED profile light, coaxial light - choose match programmable three ring eight area light
  • Laser pointer indicates the position of measuring, rapid positioning and convenient measurement
  • Can match foot switch, easy to operate at any place
User Interface Characteristics
  • Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically
  • Enables quick and friendly communication between operator and instrument
  • Significantly improves human measurement speed
  • Graph function key is black
  • Graph constructive key is red
  • Visual tool function key is black and green
Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement 1 Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement 2 Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement 3
Our Services
Fully Automatic High Precision Flatness Measuring Machine with Granite Material for Optical Measurement 4
  • 12-month warranty from time of receipt
  • Phone and internet teaching with comprehensive after-sale advisory service
  • Lifetime warranty services for machine (cost-based)
  • Free technical service for machine failures caused by our side (spare parts cost covered by us)
  • Free technician visits for training and technical service (excluding travel and accommodation)
  • Lifetime after-sale advisory service
  • Available spare parts for users at cost
