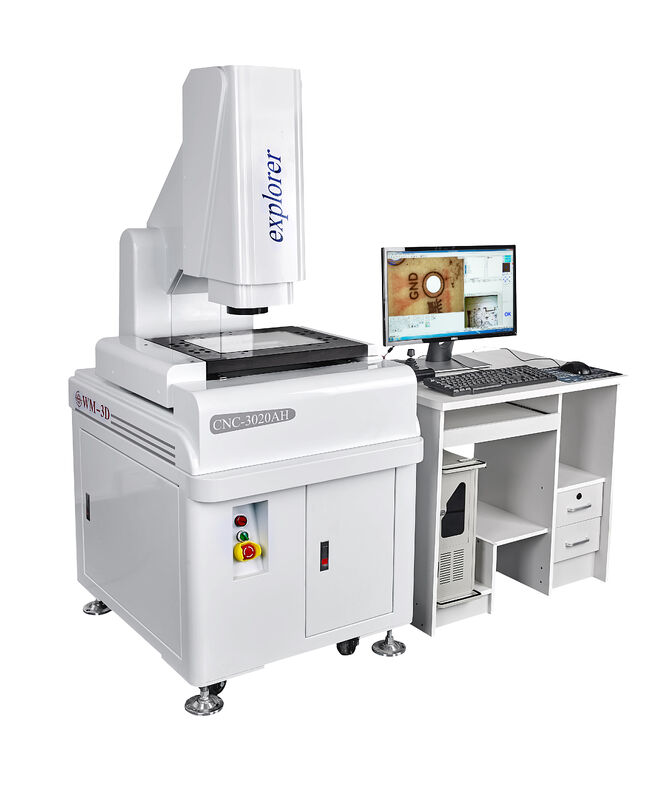

Optical Laboratory CNC Video Measuring Machine System
High Precision ISO9001 Certified laboratory equipment for quality assurance applications
Model Specifications
| Items |
CNC-3020J |
CNC-4030J |
CNC-5040J |
| Dimension (mm) (L×W×H) |
700×850×1650 |
800×900×1650 |
900×1050×1650 |
| Measuring range (mm) (X×Y×Z) |
300×200×200 |
400×300×200 |
500×400×200 |
| Measuring Accuracy (μm) |
3+L/200 |
3+L/200 |
3+L/200 |
| Repeatability (μm) |
3 |
3 |
3 |
| Weight (kg) |
300 |
380 |
450 |
Imaging & Measurement System
CCD Camera: Japanese SONY CCD
Lens: High definition zoom lens with continuous magnification 0.7-5.0x
Magnification: 40-230X (Reference only - varies with camera and lens configuration)
Optical Scale Resolution: X/Y/Z axis 0.0002mm (0.2μm)
Working Distance: 108mm
Measurement Software
Combines 3D measurement software developed with imported software functions to improve boundary resolution.
Driving System
X/Y/Z three-axis high performance Taiwan servo motor with double closed loop control system
Illumination System
Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source. Different colors are added for different products.
Key Advantages
- High-precision fully automatic measurement with CNC four-axis control
- High-precision, high-strength machine: 00-class marble base/column/workbench for superior stability
- XYZ three-axis imported precision linear guide / imported grinding grade ball screw drive system
- 0.2μm high precision metal patch ruler
- WM0750 automatic zoom optical lens enables fully automatic measurement without zoom correction
- HD SONY CCD camera with high quality measurement screen
- Autofocus measurement, optical altimetry flatness
- UK RENISHAW contact probe
- Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source
- Equipped with joystick for easy operation at any position
- Navigation CCD camera for quick position location and convenient measurement
Service & Support
- 12-month warranty from receipt of equipment
- Phone and internet teaching with comprehensive after-sales advisory service
- Lifetime warranty services for machines (cost-based)
- Free technical service for machine failures caused by manufacturer (excluding travel and accommodation)
- Lifetime after-sales advisory service
- Cost-based spare parts availability
- Lifetime value-added technical services at preferential prices
Company Information
Packaging & Shipping
Frequently Asked Questions
Q1: What kind of equipment do you mainly produce?
A: We specialize in automatic image measuring instruments, manual image measuring instruments, large gantry image measuring instruments, one-key measuring instruments, automatic vision screening equipment, and non-standard vision detection equipment.
Q2: Do you accept custom service? Can I print my logo on the machine?
A: Yes, all our products can be customized, including logo printing.
Q3: Why should I choose your company?
A: We have over 10 years of measurement expertise, a professional R&D team, and after-sales support. Located in Dongguan City, a major manufacturing hub. 12-month after-sales service with 48-hour response for simple issues.
Q4: What is your delivery time and packaging method?
A: Standard delivery: 5 working days after deposit/order confirmation. Custom machines: 10-20 working days. Professional machine packaging film internally, wooden box packaging with screw fixing externally to ensure safe arrival.
Q5: Is on-site training available?
A: Yes, on-site training is available with specific timing coordination.
Q6: What are your payment terms?
A: T/T 30% deposit, 70% before delivery (with product photos provided). Or 100% LC at sight.
Q7: Can we test samples before placing an order?
A: Yes, we provide free sample testing with detailed test reports.
