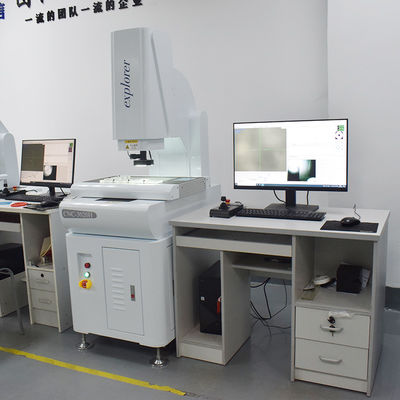

2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V

2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V
2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V 2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V 2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V 2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V 2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V

Large Image :  2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-3020AH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $11,000.00/sets
Packaging Details: 2D/3D Automatic Video Measuring Machines Wooden Cases
Delivery Time: 2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V

Description
Warranty: 1 Year Customized Support: OEM, ODM
Product Name: 2D/3D Automatic Video Measuring Machines Model: CNC-3020AH
Color: White General Use: Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material: Granite Usage: Measuring
Weight: 280KG Power Supply: AC 220V/50-60Hz
Type: Fully Automatic Usage: Optical System
High Light:

3D Automatic Flatness Measuring Machine

,

Automatic Flatness Measuring Machine

,

Video Measuring Equipment 220V

2D/3D Automatic Video Measuring Machines

Products Description
2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V 0
Items
CNC-3020AH
CNC-4030AH
CNC-5040AH
Dimension(mm)(L×W×H)
700*850*1650
800*900*1650
900*1050*1650
Measuring range(mm)(X×Y×Z)
300*200*200
400*300*200
500*400*200
Measuring Accuracy(μm
3+L/200
3+L/200
3+L/200
Repeatability (μm)
3
3
3
Weight(kg)
300
380
450
Image and Measuring
CCD
Japanese SOnYCcD

Len
High definition zoomlens/Continuous magnification 0.7-5.0x

Magnification
40-230X( For reference only. With different camera and lens the magnification will be different. )

ptical scale resolution
x/Y/z axis o.0002mm ( 0.2um )

Working distance
108mm
Measurement software
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving system
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination
Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are
added to different products.
2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V 1
Our Advantages
High-precision fully automatic measurement, CNC four-axis control.
High-precision and high-strength machine: 00-class marble base/column/workbench with high precision and good stability
XYZ three-axis imported precision linear guide / imported grinding grade ball screw drive system, long life and good stability.0.2um.High precision metal patch ruler o.2um.
The Wm0750 automatic zoom opticallens enables fully automatic measurement without the need for zoom correction. HD SONY CcD camera with high quality measurement screen Autofocus measurement, optical altimetry flatness, UK RENISHAW contact probe, Program-controlled five-ring eight-zone surace light souceLED contour light source, coaxial light source.Different colors are added to different products. It is equipped with a joystick for easy operation at any position. The navigation CCD camera indicates the measurement position, which is quick to locate and convenient for measurement. Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V 2
2D 3D Automatic Flatness Measuring Machine , Video Measuring Equipment 220V 3
Our Services

PURCHASE AND CONSULTING

From the right selection to sample test,from the installation site to installation site survey to the fixture system configuration,experienced sales and service engineers, through all over the country sales and service center,correct selection provides guidance for the customer.

SERVICE AND RETROFIT

Our measuring machine maintenance specialists,can provide maintenance regularly for measuring system,adjustment and calibration, determine the system always work in the best condition, and try to eliminate the faults in the bud,thereby reducing maintenance costs,prolong the service life of measurement system significantly.

TRANSFORMATION AND UPGRADING

Keep your measurement system is always the most optimal technical condition, through the control system,measurement software,completely upgraded probe system and transmission system,the technology of measuring machine increase greatly.

INSTALLATION AND WARRANTY

Nationwide sales and service center,by the method of the standard process,to provide customers with timely and fast installation and acceptance of machine, product warranty services,training and equipment use problems,4 hour telephone

response processing,8 hours door-to-door service, to solve customer's worries INSTALLATION AND WARRANTY

We have to training covers every aspect of customer needs,ranging from primary operation training to the professional training of senior training phase,and can be made according to customer needs to provide special training.

To provide up to five:

The door one-on-one training,to learn is to,to sign for training qualifiedlist Paper release notes,detailed machine use,the software function is introduced Random distribution teaching CD,installation CD,watch directly, more specific and convenient

The company network teaching video,direct knowledge,convenient measurement Multimedia remote teaching,quickly resolve customer problems
