Fully Automatic Granite CNC Vision Measuring Machine ISO9001 Certified Video Measuring System

Name: Fully Automatic Granite CNC Vision Measuring Machine ISO9001 Certified Video Measuring System
Brand: Dongguan Wang Min Optical Instrument Co., Ltd.
SKU: CNC-5040AH
Price: 6.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WM-3D
Certification:	ISO9001
Model Number:	CNC-5040AH

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

WM-3D

Certification:

ISO9001

Model Number:

CNC-5040AH

Warranty:

1 Year

Customized Support:

OEM, ODM

Product Name:

Granite Dimension Surface Measuring Cnc Optical Video Measuring System

Model:

CNC-5040AH

Color:

White

General Use:

Electronices ,plastics,mold,machinery,hardware,clocks,mobile

Material:

Granite

Usage:

Measuring

Weight:

400KG

Power Supply:

AC 220V/50-60Hz

Type:

Fully Automatic

Usage:

Optical System

Highlight:

High Light

Highlight:

Granite VMM Video Measuring Machine

VMM Video Measuring Machine Fully Automatic

ISO9001 vmm measuring machine

Trading Information

Minimum Order Quantity:

Price:

$13,000.00/sets

Packaging Details:

Granite dimension surface measuring cnc optical video measuring system Wooden cases

Delivery Time:

2days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

Granite VMM Video Measuring Machine - Fully Automatic ISO9001 Certified

High-precision granite dimension surface measuring CNC optical video measuring system designed for industrial applications requiring exceptional accuracy and reliability.

Technical Specifications

Model Comparison

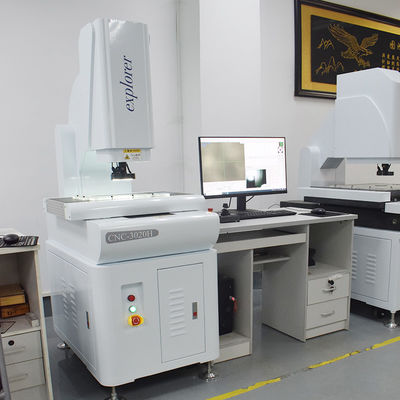

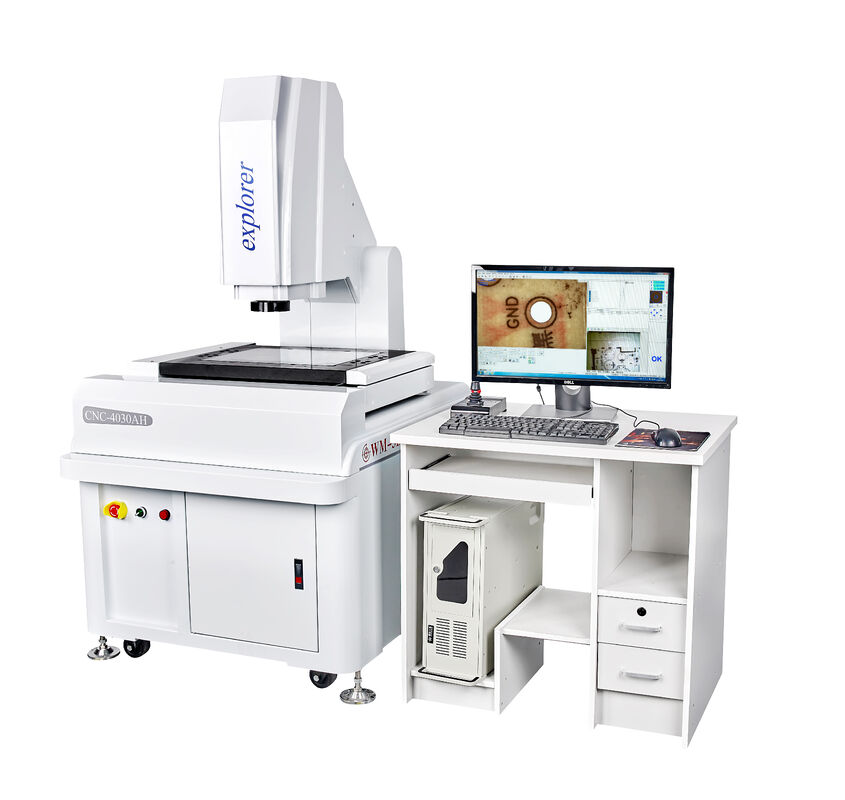

Items	CNC-3020AH	CNC-4030AH	CNC-5040AH
Dimension (mm) (L×W×H)	700×850×1650	800×900×1650	900×1050×1650
Measuring Range (mm) (X×Y×Z)	300×200×200	400×300×200	500×400×200
Measuring Accuracy (μm)	3+L/200	3+L/200	3+L/200
Repeatability (μm)	3	3	3
Weight (kg)	300	380	450

Image and Measuring System

CCD	Japanese SONY CCD
Lens	High definition zoom lens / Continuous magnification 0.7-5.0x
Magnification	40-230X (Reference only - varies with camera and lens configuration)
Optical Scale Resolution	X/Y/Z axis 0.0002mm (0.2μm)
Working Distance	108mm

Measurement Software

Advanced 3D measurement software combining imported software functionality with enhanced boundary resolution capabilities.

Driving System

X/Y/Z three-axis high-performance Taiwan servo motor with double closed-loop control system.

Illumination System

Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source. Different colors available for various product applications.

Key Advantages

High Precision Automation

Fully automatic measurement with CNC four-axis control for superior accuracy and efficiency.

Premium Construction

00-class granite base, column, and workbench providing exceptional stability and precision.

Advanced Drive System

XYZ three-axis imported precision linear guides and grinding grade ball screw drive system with 0.2μm high precision metal patch ruler.

Optical Excellence

WM0750 automatic zoom optical lens enables fully automatic measurement without zoom correction requirements.

Imaging Quality

HD SONY CCD camera with high-quality measurement screen and autofocus measurement capabilities.

Enhanced Functionality

Optical altimetry flatness measurement, UK RENISHAW contact probe integration.

Equipped with joystick for convenient operation from any position. Navigation CCD camera provides quick position location for efficient measurement workflows.

Service & Support

12-month warranty period from receipt of equipment
Comprehensive phone and internet-based user training with combined after-sales advisory services
Lifetime warranty services available (cost-based)
Machine failures caused by manufacturer: spare parts replacement at our cost
On-site technician training available (travel and accommodation expenses apply)
Long-term after-sale advisory service beyond warranty period
Cost-based spare parts availability for all users
Lifetime after-sales value-added technical services at preferential pricing

Company Information

Packaging & Shipping

Frequently Asked Questions

Q1: What kind of equipment do you mainly produce?

A: Our main production equipment includes: automatic image measuring instruments, manual image measuring instruments, large gantry image measuring instruments, one-key measuring instruments, automatic vision screening equipment, and non-standard vision detection equipment.

Q2: Do you accept custom service? Can I print my logo on the machine?

A: Yes, all of our products can be customized. We can also customize logo placement according to your requirements.

Q3: Why should I choose your company?

A: 1. Over 10 years of specialized experience in product measurement with professional R&D and after-sales teams. 2. Strategically located in Dongguan City, a world-renowned manufacturing hub. 3. Comprehensive 12-month after-sales service with 48-hour resolution for simple issues.

Q4: What is your delivery time and packaging method?

A: Standard delivery time is 5 working days after deposit or order confirmation. Custom machines require 10-20 working days. Professional machine packaging film internally, with external wooden box packaging and screw fixing to ensure safe arrival without damage.

Q5: Is on-site training available?

A: Yes, on-site training is available. Specific timing needs to be confirmed with our team.

Q6: What are your payment terms?

A: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment. 100% LC at sight also accepted.

Q7: Can we test samples before placing an order?

A: Yes, we provide free sample testing and detailed test reports. Contact our business manager for assistance with any testing requirements.
