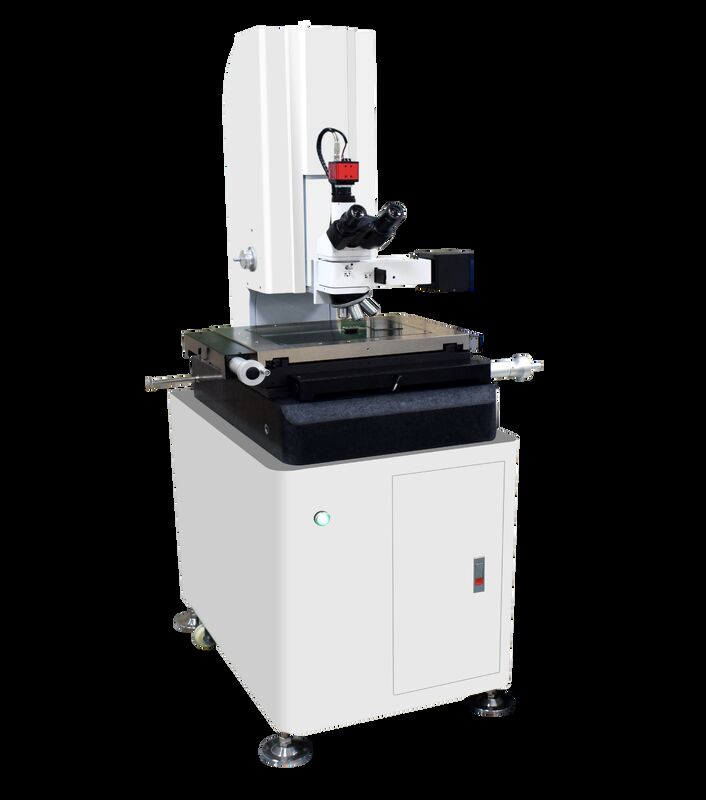

Digital PCB Industrial Measuring Microscope with Trinocular Drawtube 2800x Magnification and Granite Base

Name: Digital PCB Industrial Measuring Microscope with Trinocular Drawtube 2800x Magnification and Granite Base
Brand: Dongguan Wang Min Optical Instrument Co., Ltd.
SKU: VMT-3020
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WM-3D
Certification:	ISO9001, CE
Model Number:	VMT-3020

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

WM-3D

Certification:

ISO9001, CE

Model Number:

VMT-3020

Warranty:

1 Years, 12months

Theory:

Metallurgical Microscope

Drawtube:

Trinocular

Name:

Cheapest Toolmaker Measuring Microscope

Material:

Granite

Usage:

Inspection

Weight:

260kg

Color:

White

Port:

Shenzhen

Highlight:

High Light

Highlight:

PCB Industrial Measuring Microscope

Digital Industrial Measuring Microscope

Trinocular digital measuring microscope

Trading Information

Price:

$7,000.00/sets 1-4 sets

Packaging Details:

WM-3D Software Toolmakers pcb microscope Measuring Microscope
Vacuum packing & Free fumigation wooden case
Wooden case size: 850*600*1200mm

Product Description

Digital PCB Industrial Measuring Microscope Trinocular Drawtube

WM-3D Software Toolmakers PCB Measuring Microscope

The Large Tool-Maker Microscope is a precision optical measuring instrument designed for industrial applications. With its simple structure and user-friendly operation, it serves multiple functions across various industries.

Key Functions & Applications

Cartesian Coordinate Measurement: Precise measurement of pitch, base surface distance, engraved line dimensions, slot widths, slit widths, and through-hole outer diameters
Angle Measurement: Accurate angle measurement for dials, templates, gauges, drilling templates, and complex structural components
Surface Inspection: Comparative analysis of workpiece surface finish, metallurgical sample identification, photomechanical print testing, and textile fiber inspection
Advanced Data Processing: Enhanced capabilities with WM-3D data processor for comprehensive measurement analysis

Technical Features

Bright-field view investigation with WM-3D positive imaging for clear, wide-market pictures
Powerful WM-3D software for advanced measurement and analysis capabilities
Long working distance lens with magnification up to 2800x
Precision screw-driven positioning for enhanced accuracy
Optimized for large-size measurement with fast-moving loading platform
Z-axis hand wheel with large coarse tuning for accurate workpiece focusing
X and Y axes with built-in zero switching
Video device compatibility for system upgrade to video measurement
Naturally aged treatment table with Taiwan LB components for long-term precision

Technical Specifications

MODEL	VMT-4030
Working Travel (XYZ axis)	400300200mm
Dimension (mm)	700x9001150 (LW*H)
Deviation	(3+L/200)μm, L be regarded as length of measurement in unit mm
Resolution	1μm
Image Processor	SONY 1/3" color CCD camera
Eyepiece	PL 10X/Ø22mm
Objective	Standard: LMPlan 5X,10X,20X DIC Optional: PL L 5X,10X,20X 50X,100X
Nosepiece	Intilted quintuple nosepiece for bright field, with DIC slot
Max. Magnification	2800x (Objective*1/3'' CCD)
Max. Work load	35kg
Max. Working Height	200mm
G.W.	260kg
Power Supply	AC110V/60Hz; 220V/50Hz
Optional Accessories	Powerful Measuring Software WM-3D DC-3000 Data Terminal Granite Work Desk PC & 19'' LCD Monitor

Warranty & Services

12 Months Warranty - Buy with Confidence!

12-month warranty from date of assembly and acceptance, not exceeding 15 months from shipment date
Comprehensive phone and internet teaching with combined after-sales advisory service
Lifetime warranty services for machine components (cost-based)
Free technical service for machine failures caused by manufacturer (excluding travel and accommodation)
Lifetime after-sales advisory service and technical support
Cost-based spare parts availability
Lifetime value-added technical services at preferential prices
