USB Video Industrial Measuring Microscope with 10X Binoculars Eyepiece 0.0005mm Resolution and 2800X Magnification

Name: USB Video Industrial Measuring Microscope with 10X Binoculars Eyepiece 0.0005mm Resolution and 2800X Magnification
Brand: Dongguan Wang Min Optical Instrument Co., Ltd.
SKU: WMT-3020
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WM-3D
Certification:	ISO9001
Model Number:	WMT-3020

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

WM-3D

Certification:

ISO9001

Model Number:

WMT-3020

Warranty:

1 Year

Customized Support:

OEM, ODM

Theory:

Metallurgical Microscope

Drawtube:

BINOCULAR

Name:

Industry Measuring Toolmaker Microscope

Material:

Granite

Usage:

Inspection

Weight:

150kg

Color:

White

Product Name:

Industry Measuring Toolmaker Microscope

Magnification:

5X10X20X50X

Optical Scale Resolution:

X/Y/Z Axis 0.0005mm

Eyepiece Group:

10X Binoculars

Total Magnification:

50X-500X

Port:

Shenzhen

Highlight:

High Light

Highlight:

Video Industrial Measuring Microscope

USB Industrial Measuring Microscope

10X video measuring microscope

Trading Information

Price:

$5,000.00/sets 1-4 sets

Packaging Details:

Vacuum packing & Free fumigation wooden case
Wooden case size: 650*450*1150mm

Product Description

USB Video Industrial Measuring Microscope with 10X Binoculars Eyepiece Group

Developed using semi-removal technology, this USB industrial microscope camera with LED light is ideal for repair, soldering, and chip inspection applications.

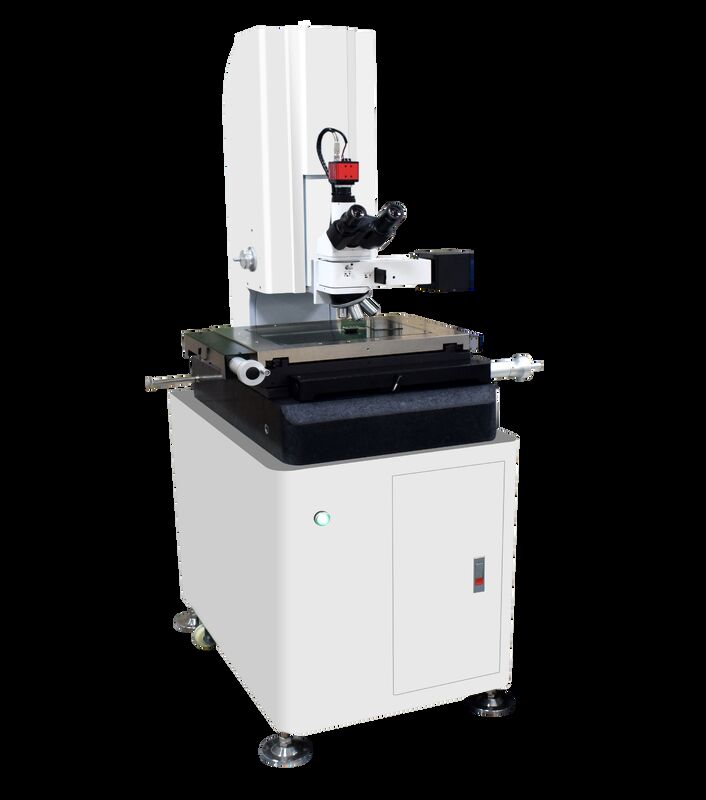

USB Video Industrial Measuring Microscope with 10X Binoculars Eyepiece 0.0005mm Resolution and 2800X Magnification 0

Key Features

Bright-field view investigation with WM-3D positive imaging for clear, wide-market pictures
Powerful WM-3D software for comprehensive measurement and analysis capabilities
Long working distance lens with magnification up to 2800x
Precision screw-driven positioning for enhanced accuracy
Large-size measurement platform with fast-moving body
Z-axis hand wheel with large coarse tuning for accurate workpiece focusing
X and Y axes with built-in zero switching
Video device compatibility for system upgrade to video measurement
Natural aging treated table with Taiwan LB components for long-term precision

Technical Specifications

Model	VMT-2010
Working Travel (XYZ axis)	200100200mm
Dimensions (LWH)	600x400x1100mm
Deviation	(3+L/200)μm (L = measurement length in mm)
Resolution	1μm
Image Processor	SONY 1/3" color CCD camera
Eyepiece	PL 10X/Ø22mm
Objective	Standard: LMPlan 5X,10X,20X DIC Optional: PL L 5X,10X,20X 50X,100X
Nosepiece	Intilted quintuple nosepiece for bright field, with DIC slot
Maximum Magnification	2800x (Objective*1/3" CCD)
Maximum Work Load	25kg
Maximum Working Height	200mm
Gross Weight	150kg
Power Supply	AC110V/60Hz; 220V/50Hz
Optional Accessories	Powerful Measuring Software WM-3D, DC-3000 Data Terminal, Granite Work Desk, PC & 19" LCD Monitor

Warranty & Services

12 months warranty. Buy with confidence!

12 months from date of assembly and acceptance, not exceeding 15 months from shipment date
Phone and internet teaching with comprehensive after-sale advisory service
Lifetime warranty services for machine users (cost-based)
Machine failures caused by manufacturer: return spare parts at our cost
Technical service at customer site is free (excluding travel and accommodation)
Lifetime after-sale advisory service
Cost-based spare parts available
Lifetime value-added technical service at preferential prices
Logistics consultation available through our business manager
