Granite Material Industrial Measuring Microscope with 2800x Magnification and 400x300x200mm Working Travel

Name: Granite Material Industrial Measuring Microscope with 2800x Magnification and 400x300x200mm Working Travel
Brand: Dongguan Wang Min Optical Instrument Co., Ltd.
SKU: VMT-4030
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WM-3D
Certification:	iso9001
Model Number:	VMT-4030

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

WM-3D

Certification:

iso9001

Model Number:

VMT-4030

Warranty:

1 Year

Customized Support:

OEM, ODM

Theory:

Metallurgical Microscope

Drawtube:

BINOCULAR

Name:

High Quality Toolmaker Microscope For Sale

Material:

Granite

Usage:

Inspection

Weight:

260kg

Color:

White

Product Name:

High Quality Toolmaker Microscope For Sale

Port:

Shenzhen

Highlight:

High Light

Highlight:

Inspection Industrial Measuring Microscope

Metallurgical Industrial Measuring Microscope

Trading Information

Price:

$7,000.00/sets 1-4 sets

Packaging Details:

High Quality Toolmaker Microscope For Sale
Vacuum packing & Free fumigation wooden case
Wooden case size: 750*950*1200mm

Product Description

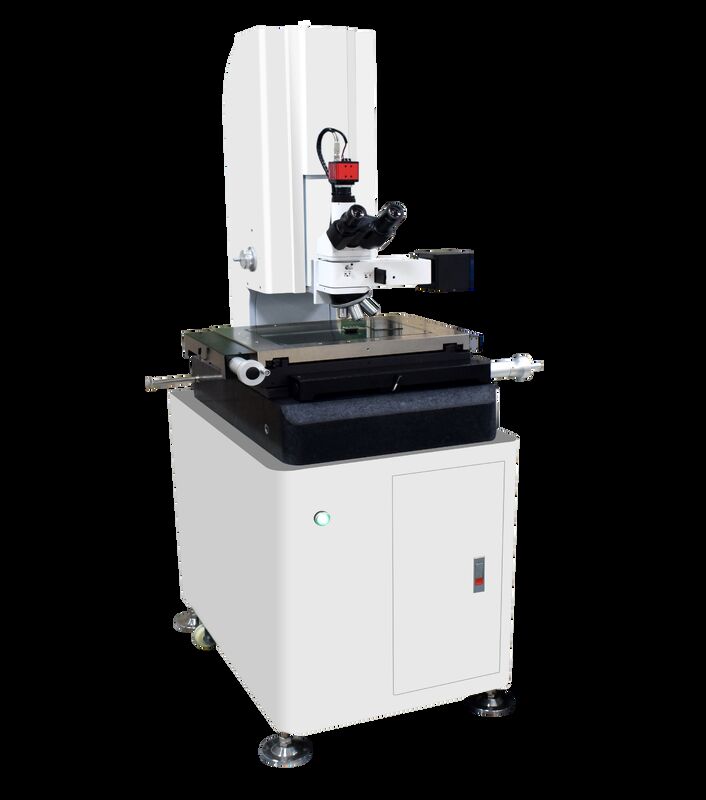

Granite Metallurgical Industrial Measuring Microscope

High precision toolmaker microscope designed for industrial inspection and measurement applications.

Key Features

Bright-field view with WM-3D positive imaging for clear, wide-market pictures
Powerful WM-3D software for advanced measurement and analysis capabilities
Long working distance lens with up to 2800x magnification
Precision screw-driven positioning for enhanced accuracy
Optimized for large-size measurement with fast-moving loading platform
Z-axis hand wheel with large coarse tuning for precise workpiece focusing
X and Y axes with built-in zero switching
Video device compatibility for system upgrade to video measurement
Natural aging treated table with Taiwan LB components for long-term precision

Technical Specifications

Model	VMT-4030
Working Travel (XYZ axis)	400300200mm
Dimensions (LWH)	700x900x1150mm
Deviation	(3+L/200)μm (L = measurement length in mm)
Resolution	1μm
Image Processor	SONY 1/3" color CCD camera
Eyepiece	PL 10X/Ø22mm
Objective (Standard)	LMPlan 5X, 10X, 20X DIC
Objective (Optional)	PL L 5X, 10X, 20X, 50X, 100X
Nosepiece	Inclined quintuple nosepiece for bright field with DIC slot
Maximum Magnification	2800x (Objective*1/3" CCD)
Maximum Workload	35kg
Maximum Working Height	200mm
Gross Weight	260kg
Power Supply	AC110V/60Hz; 220V/50Hz
Optional Accessories	Powerful Measuring Software WM-3D, DC-3000 Data Terminal, Granite Work Desk, PC & 19" LCD Monitor

Warranty & Services

12-month warranty with comprehensive after-sales support:

12 months from date of assembly and acceptance (not exceeding 15 months from shipment)
Phone and internet teaching with comprehensive after-sale advisory service
Lifetime warranty services (cost-based for machine components)
Free technical service (excluding travel and accommodation)
Lifetime after-sale advisory service
Spare parts available at cost
Lifetime value-added technical service at preferential prices
