0.1um CNC Optical Measurement Machine

Image Dimension Measurement System
December 26, 2025
Category Connection: Image Dimension Measurement System
Chat Now Contact Us
Tags:
#Image Dimension Measurement System Optical #Electronics vmm measuring machine #VMM Video Measuring Machine Automatic
Brief: Thinking about an upgrade? This short demo helps you evaluate the fit. Watch as we demonstrate the fully automatic operation of the High Precision Optical Measuring Machine, showcasing its 0.1μm resolution, CNC four-axis control, and multi-zone lighting system for precise measurement of pad accessories.
Related Product Features:
  • Achieves ultra-high precision with 0.1μm resolution and fully automatic CNC control for accurate measurements.
  • Built with a stable 00-class granite base and column to ensure long-term measurement reliability.
  • Features XYZ three-axis imported precision linear guides and grinding grade ball screw drive system.
  • Equipped with a WM0750 automatic zoom optical lens for measurements without manual zoom correction.
  • Utilizes a high-definition SONY CCD camera for clear, high-quality measurement imaging.
  • Includes autofocus measurement capability with optical altimetry for flatness assessment.
  • Offers a program-controlled multi-zone LED lighting system for versatile illumination needs.
  • Provides easy operation with a joystick and navigation CCD camera for quick positioning.
FAQs:
  • How do I choose the appropriate specification for my needs?
    Our professional team will provide optimal solutions based on your requirements, using catalog specifications, demonstration videos, or other tailored methods to ensure the right fit.
  • What support is available for installation and usage?
    We provide English operating instructions and videos. For areas near our agents, on-site service is available, or we can send engineers to your location for installation and training, with additional costs for airfare and accommodation.
  • Are customized OEM services available?
    Yes, we welcome and provide OEM services to meet specific customer requirements and applications.
Related Videos

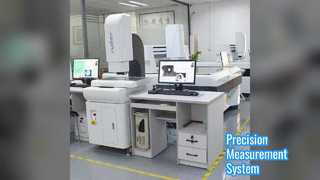

Precision CNC Video Machine for Industrial Measurement 00:12
