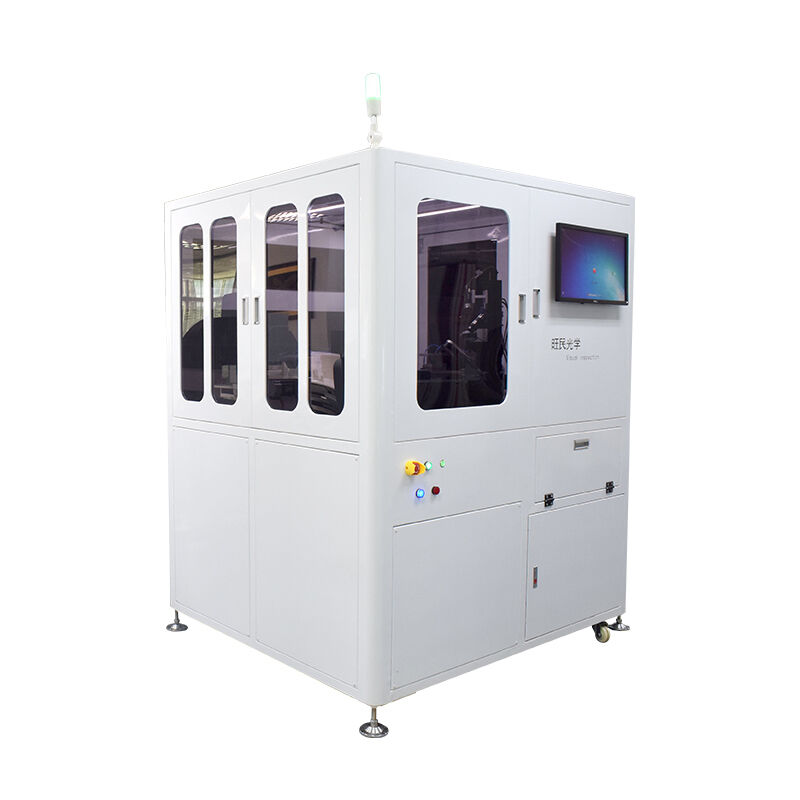

220V Fully Automatic High Speed AOI Testing Machine for PCB Quality Inspection

Name: 220V Fully Automatic High Speed AOI Testing Machine for PCB Quality Inspection
Brand: Dongguan Wang Min Optical Instrument Co., Ltd.
SKU: WM-02
Price: 21000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WM-3D
Certification:	ISO9001
Model Number:	WM-02

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

WM-3D

Certification:

ISO9001

Model Number:

WM-02

Warranty:

1 Year

Product Name:

AOI Testing Machine For PCB Quality Inspection

Model:

WM-02

Color:

White

General Use:

Electronices ,plastics,mold,machinery,hardware,clocks,mobile

Material:

Sheet Metal

Usage:

Measuring

Weight:

160KG

Power Supply:

220V

Type:

Fully Automatic

Highlight:

High Light

Highlight:

Automatic PCB AOI Machine

220V PCB AOI Machine

Inspection aoi pcb machine

Trading Information

Minimum Order Quantity:

Price:

$21000.00/sets

Packaging Details:

AOI Testing Machine for PCB Quality Inspection

Delivery Time:

1days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

5sets/3days

Product Description

220V Automatic PCB AOI Machine For Inspection Measuring Multifunctional

AOI Testing Machine for PCB Quality Inspection

You have selected: Visual screening machine length unit: MM

Technical Parameters

Machine Size	11009001900mm
Working Power Supply	220V
Air Source Pressure	0.5 Pa
Sorting Rate	About 80-100Pcs/min

Function Overview

Transfer the product from the specific vibration disc to the detection machine detection turntable
Each camera module of the inspection equipment detects various defects of the product
After testing, products are sorted into OK, NG, oversized, and undersized discharge ports

Features and Key Technologies

Glass plate dividing material, fast speed, stable machine, simple operation and easy maintenance
Camera module detects product characteristics at corresponding stations
Automatic feeding and receiving of materials

Program Expectations

Efficiency: about 4800-6000PCS/H
Estimated cost: refer to market quotation
Operation manpower: 1 person
Development cycle: 20 days

Our Advantages

High Speed AOI Testing Machine for Quality Control video measuring machine

Professional customized products, tailor-made solutions, one-on-one problem solving
Quickly measure and screen out small defects of various hardware, electronics, plastic and other products
Mechanization instead of manual, high efficiency, fast speed, low misjudgment rate

Our Services

12-month warranty from time of receipt
Phone and internet teaching with comprehensive after-sale advisory service
Life warranty services for machines (cost-based)
Spare parts available for users at cost
Lifetime after-sales value added technical service at preferential prices

Company Information

Packaging & Shipping

Frequently Asked Questions

Q1: What kind of equipment do you mainly produce?

Hello! Our main production equipment includes: automatic image measuring instrument, manual image measuring instrument, large gantry image measuring instrument, one key measuring instrument, automatic vision screening equipment, and non-standard vision detection equipment.

Q2: Do you accept custom service? Can I print my logo on the machine?

Yes, all of our products can be customized. If you have logo requirements, we can customize it for you.

Q3: Why do you choose us?

Over 10 years of experience in product measurement with professional R&D and after-sales teams
Located in Dongguan City, a world-famous manufacturing hub
12-month after-sales service with simple problems resolved within 48 hours

Q4: What is your delivery time? What about the packing?

Our delivery time is 5 working days after receiving deposit or order confirmation, and 10-20 working days for customized machines. Packaging includes professional machine packaging film inside, with wooden box packaging and screw fixing externally to ensure safe arrival without damage.

Q5: Is on-site training available?

Yes, on-site training is available. Specific timing needs to be confirmed.

Q6: What are the payment terms?

T/T, L/C, Western Union, etc.

Q7: What are your payment terms?

T/T 30% as deposit, 70% before delivery. We will show you product and packaging photos before balance payment. Or 100% LC at sight.

Q8: Can we test samples before placing an order?

Of course, we can test samples for free and provide you with a test report. If you have any difficulties, please contact our business manager.
