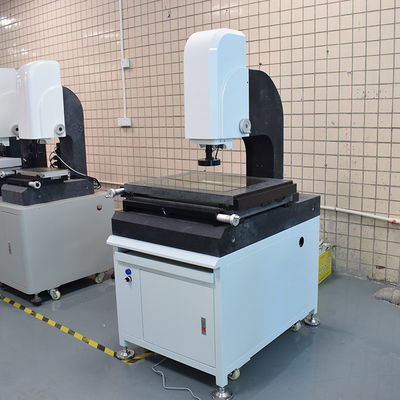

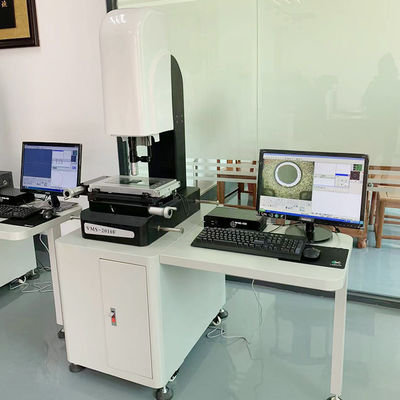

Optical Manual Coordinate Measuring Machine
High-precision 3μm accuracy video measuring system specifically designed for metal gears size measurements
Key Features
- Z-axis auto focus video measuring machine with multipoint positioning function
- Measures points, lines, circles, arcs, ovals, and rectangles with advanced construction capabilities
- Comprehensive data processing with direct output to Word, Excel, and AutoCAD formats
- Digital measurement system with optical grating and SDK-3000 data card
- RS232 computer interface with specialized measurement software for circular mapping
- Motorized Z-axis for automatic focus and optimal image clarity
Metallographic Measurement & Analysis
Universal models combining measuring stands with advanced metallurgical microscope components for high-resolution imaging and critical measurements. Features infinity objectives and microscopy techniques including brightfield, darkfield, DIC contrast, polarizing, and epifluorescence.
Technical Specifications
| Model |
WM-2010F |
WM-3020F |
WM-4030F |
WM-5040F |
| Metal Table Size (mm) |
350×220 |
450×350 |
550×450 |
700×600 |
| Glass Table Size (mm) |
230×130 |
330×230 |
430×330 |
530×430 |
| Three Axis Travel (mm) |
200×100 |
300×200 |
400×300 |
500×400 |
| Weight (kg) |
170 |
260 |
300 |
500 |
| Dimensions L×W×H (mm) |
500×700×1100 |
600×750×1100 |
700×900×1150 |
850×1050×1200 |
Standard Measuring System: SONY 1/3" Color CCD Camera, Lens magnification: 0.7-4.5X, Working distance: 95mm, Total magnification: 30-230X, Object view: 7-1.1mm, Double Cross Line Generator, Data Resolution: 0.001mm, Z-axis lifting travel: 150mm (Auto Focus), X,Y-axis indication error: ≤(3+L/200)μm, LED surface and transmission lighting, Power: 220/110V AC, 50HZ 30W
Warranty & Services
- 12-month comprehensive warranty with extended advisory services
- Phone and internet teaching support with combined after-sales advisory service
- Lifetime warranty services with cost-based support
- Free technical service with customer covering travel and accommodation
- Long-term after-sales advisory service and technical support
- Available spare parts provision at preferential pricing
Company Information
Certifications
Our measurement software is certified by national professional standard measurement organizations. Machines can provide HSR agency standard measurement certification.
Packaging & Shipping
Frequently Asked Questions
Q1: What kind of equipment do you mainly produce?
We specialize in automatic image measuring instruments, manual image measuring instruments, large gantry image measuring instruments, one-key measuring instruments, automatic vision screening equipment, and non-standard vision detection equipment.
Q2: Do you accept custom service? Can I print my logo on the machine?
Yes, all our products can be customized, including logo printing according to your requirements.
Q3: Why should I choose your company?
With over 10 years of measurement expertise, professional R&D and after-sales teams, strategic location in Dongguan manufacturing hub, and comprehensive 12-month warranty with 48-hour response time for simple issues.
Q4: What is your delivery time and packaging method?
Standard delivery: 5 working days after deposit. Custom machines: 10-20 working days. Professional packaging with internal protective film and external wooden box with screw fixing for secure transportation.
Q5: Is on-site training available?
Yes, on-site training is available with specific timing arrangements.
Q6: What are your payment terms?
T/T (30% deposit, 70% before delivery), L/C, Western Union. Product photos provided before final payment.
Q7: Can we test samples before placing an order?
Yes, we provide free sample testing with comprehensive test reports.
