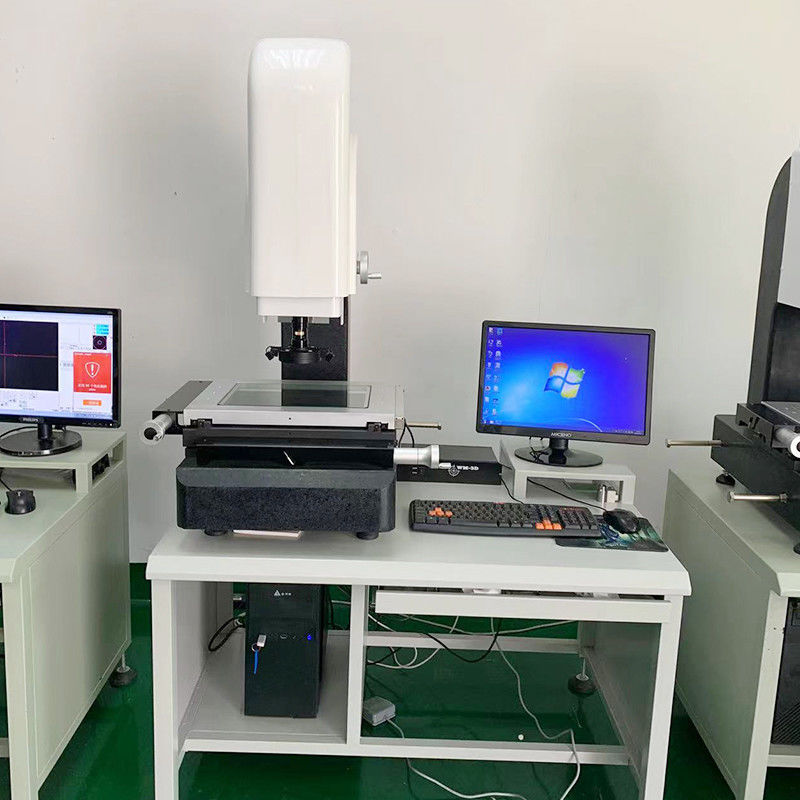

2D Optical Vision Measurement Machine
High-precision CMM measuring equipment with 3μm accuracy for industrial metrology applications
Key Features & Capabilities
- Z-axis auto focus system for precise video measurement of points, lines, circles, arcs, ovals, and rectangles
- Advanced multipoint positioning with combination measurements, center structure, intersection construction, midpoint construction, line structure, and round structure functions
- Comprehensive data processing with display, input, and output capabilities
- Direct measurement data export to Word, Excel, and AutoCAD formats for statistical analysis
- Integrated workpiece straightening function for enhanced measurement accuracy
- Digital measurement system with coordinate studio, optical grating, and SDK-3000 data card
- RS232 computer interface with specialized measurement software for circular mapping processing
- Motorized Z-axis for automatic focus adjustment to achieve optimal image clarity
Metallographic Measurement & Analysis
Universal models combine measuring stands with premium metallurgical microscope components for high-resolution imaging and critical measurements. Features include advanced infinity objectives and comprehensive microscopy techniques: brightfield, darkfield, DIC contrast, polarizing, and epifluorescence. Supports up to five objectives on the nosepiece with upgrade options for expanded functionality.
Technical Specifications
| Model |
WM-2010F |
WM-3020F |
WM-4030F |
WM-5040F |
| Worktable - Metal (mm) |
350×220 |
450×350 |
550×450 |
700×600 |
| Worktable - Glass (mm) |
230×130 |
330×230 |
430×330 |
530×430 |
| Three Axis Travel (mm) |
200×100 |
300×200 |
400×300 |
500×400 |
| Weight (kg) |
170 |
260 |
300 |
500 |
| Dimensions L×W×H (mm) |
500×700×1100 |
600×750×1100 |
700×900×1150 |
850×1050×1200 |
Standard Measuring System
Camera: SONY 1/3" Color CCD Camera
Lens Magnification: 0.7-4.5X (WD: 95mm)
Total Magnification: 30-230X (Object View: 7-1.1mm)
Double Cross Line Generator
Data Resolution: 0.001mm
Z-axis Lifting Travel: 150mm (Auto Focus)
X,Y-axis Indication Error: ≤(3+L/200)μm (L = measured length in mm)
Lighting: Surface and transmission LED lighting with adjustable brightness
Power: 220/110V AC, 50HZ, 30W
Warranty & Services
12 Months Comprehensive Warranty
- 12 months from assembly and acceptance date (not exceeding 15 months from shipment)
- Phone and internet teaching support with comprehensive after-sales advisory service
- Lifetime warranty services available (cost-based)
- Free technical service for machine failures caused by manufacturer (spare parts cost covered)
- On-site technician training available (travel and accommodation expenses apply)
- Lifetime after-sales advisory service
- Cost-based spare parts availability
- Lifetime value-added technical services at preferential prices
Company Information
Certifications
- Software certified by national professional standard measurement organizations
- Machines eligible for HSR agency standard measurement certification
Packaging & Shipping
Frequently Asked Questions
Q1: What kind of equipment do you mainly produce?
A: We specialize in automatic image measuring instruments, manual image measuring instruments, large gantry image measuring instruments, one-key measuring instruments, automatic vision screening equipment, and non-standard vision detection equipment.
Q2: Do you accept custom service? Can I print my logo on the machine?
A: Yes, all products can be customized, including logo printing and branding requirements.
Q3: Why should I choose your company?
A1: Over 10 years of specialized experience in measurement products with professional R&D and after-sales teams.
A2: Located in Dongguan City, a world-renowned manufacturing hub.
A3: 12-month after-sales service with 48-hour response time for simple issues.
Q4: What is your delivery time and packaging method?
A: Standard delivery: 5 working days after deposit/order confirmation. Custom machines: 10-20 working days. Professional packaging includes internal machine packaging film with external wooden box packaging and screw fixing for secure transportation.
Q5: Is on-site training available?
A: Yes, on-site training is available with specific timing arrangements.
Q6: What are your payment terms?
A: We accept T/T, L/C, Western Union, and other payment methods. Standard terms: 30% deposit, 70% balance before delivery with product photos provided. Also accept 100% LC at sight.
Q7: Can we test samples before placing an order?
A: Yes, we provide free sample testing with comprehensive test reports. Contact our business manager for assistance.
