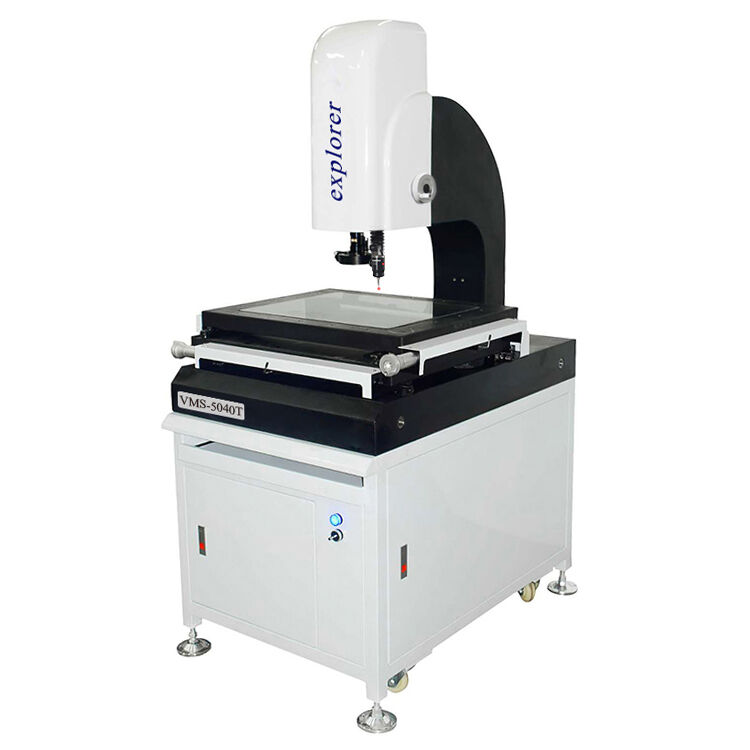

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy
Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy
Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy

Large Image :  Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001 CE
Model Number: VMS-3020F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3,000.00/sets 1-1 sets
Packaging Details: WANGMIN Manual 2D Optical Measurement Analysis Instruments Machine wooden cases
Delivery Time: 2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100sets/7days
Contact Now

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy

Description
Warranty: 12 Months, One Year Customized Support: OEM, ODM, OBM
Power: Electronic Name: WANGMIN Manual 2D Optical Measurement Analysis Instruments Machine
Accuracy: 3um General Use: Electrics,plastics,mold,machinery,connectors And Mobile
Function: Measuring And Detect Weight: 200KG
Velocity: Hand Control Color: White
Type: VMS-3020F
High Light:

Manual Contour Measuring Machine

,

Contour Measuring Machine 2D

,

2D Measurement System 3um

WANGMIN Manual 2D Optical Measurement Analysis Instruments Machine

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 0

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 1


Items

VMS-2010F

VMS-3020-F

VMS-4030F

VMS-5040F

Dimension(mm)(L×W×H)

500*700*1100

600*750*1100

700*900*1150

850*1050*1200

Measuring range(mm)(X×Y×Z)

200*100*200

300*200*200

400*300*200

500*400*200

Measuring Accuracy(μm

3+L/200

3+L/200

3+L/200

3+L/200

Repeatability (μm)

3

3

3

3

Weight(kg)

150

180

200

240

Image and Measuring

CCD

Japanese SOnYCcD



Len

WM HD zoom lens / continuous magnification 0.7-4,5x



Magnification

30-210X



ptical scale resolution

X/Y/zaxis 0.0005mm ( 0.5um



Measuring range

9.omm-1.35mm

measuring system

Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe,

Driving system

versatile data processor can measures points, lines, loops, circles, angles, etc.

Illumination

Surface light and projection light , cold light, long life, brightness adjustable
Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 2
Our advantage

Features of a high precision and high strength machine for measuring small products: It has a marble base, upright column, and worktable for stability, as well as imported guide rail and optic axis drive system for long service life. The machine also has a continuous zoom optical lens, HD Japanese Sony CCD camera, and various measurement tools including auxiliary focusing, optical measuring altitude and flatness, and a contact probe. It has surface light, LED profile light, and a laser pointer for positioning, and can be operated with a foot switch. There is also a smaller version of the machine designed for rapid measurement of small products with high efficiency and accuracy.

machine.Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 3



Our Services

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 4



Company Information

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 5

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 6

Certifications

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 7

1.our software through the national professional organization of standard measurement certification.
2.our machines can give HSR agency  of standard measurement certification.
Packaging & Shipping

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 8

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 9

FAQ



Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 10

Manual Contour Measuring Machine , 2D Measurement System 3um Accuracy 11
