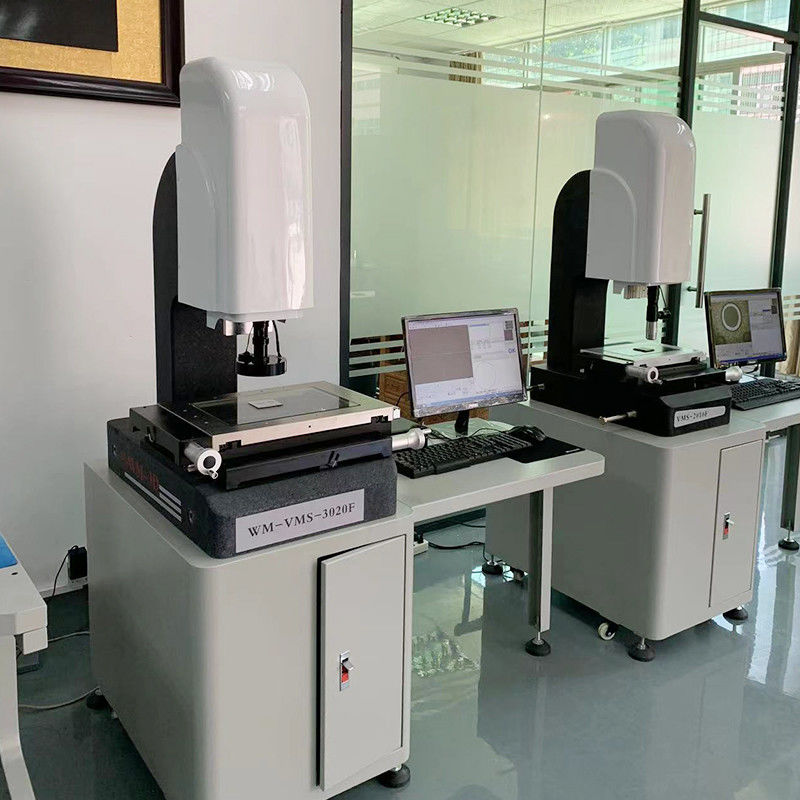

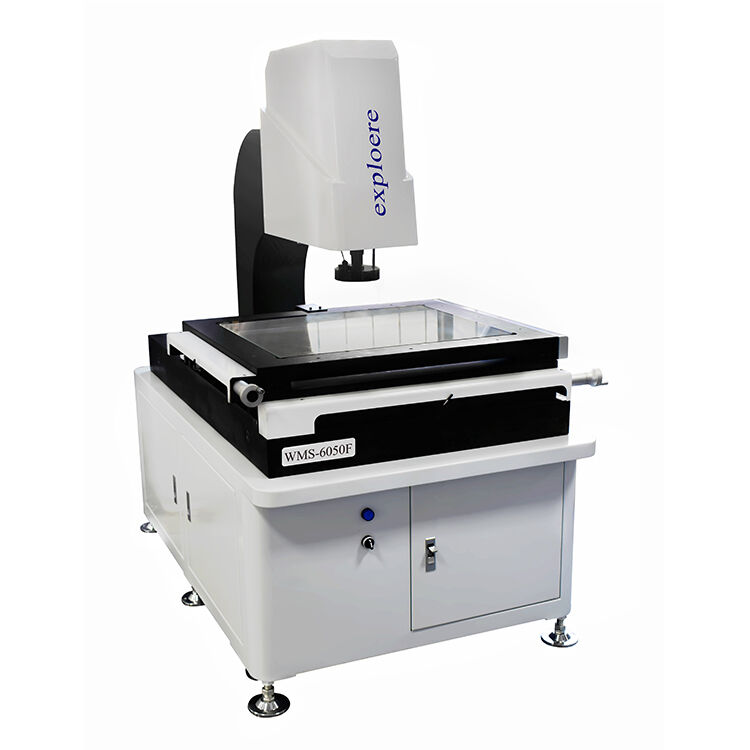

♥High precision and high strength machine:00 marble base / upright cloumn / worktable, high precision and good stability.
♥XYZ three axis imported precision v type guide rail / imported optic axis drive system, long service life, good stability.
♥wMContinuous zoom optical lens,d ifferent frames, different magnification, without zoom correction.
♥HD Japanese SoNY ccD camera, high quality measuring screen.
♥Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe.
♥Surface light , LED profile light , coaxial light . choose match programmable three ring eight area light.
♥The laser pointer indicates the position of measuring,rapid positioning and convenient measurement.
♥Can match foot switch, easy to operate at any place.
♥Small wWM-cNC-3020/wM-CNC-4030 ,designed for rapid measurement of small products ,measuring speed can be up ta 200mm-400mm/s , batch measurement speed isquickly , auto determine OK or NG , greatly reduce human error, improve workefficiency , 10-20 times as many as an ordinary manual machine.
Products are widely used in:
Hardware products,stamping products, electronic products,machining products, Molds, connectors, wires, plastic products, clocks and watches, mobile phones, LCD TV, home appliances, printed circuit board (PCB), automotive,aviation and other industries.
Automatic measurement software developers is combined with more than 10 years of quantity and software industry work experience,carefully research and development of professional 2 d measuring software. Design principle is:the operation is simple, powerful, stable and reliable,maintenance is convenient. Mainly borrowed from foreign famous software, such as the United States OGP MeasureMindPlus multi-sensor software, and the United States MicroVu measuring software of the company. Combined with the domestic situation, eclecticism,optimum combination.Meticulous research.
Characteristic:
Measurement method variety (automatic discriminant, mining point measuring contrast measurement, tolerance measurement comparison. Preset element), can satisfy different customers' needs, greatly improve the ease of use and measuring precision.
Single point sampling method mining point, there are a variety of mouse reticle edge point, amplified by points. Closed to measure the perimeter of the cloud line, area and center of gravity, the use of three interpolation algorithm,for the most accurate measuring method of cloud line.
Can undertake box to choose measurement more round, fast and accurate measurement of multiple round at a time.
The measured data can be saved as a DXF file, or BMP images, and the user program format
Can measure the 12 kinds of elements (point, line,circle, arc,ellipse, rectangle,trough, O shape, distance and Angle, open cloud cloud line and closing lines).
