Home > Products >
Gantry Coordinate Measuring Machine
>
Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm
  • Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm
  • Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm
  • Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm
  • Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm
  • Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm
  • Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm
  • Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm
  • Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm

Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-6080D
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
WM-3D
Certification:
ISO9001
Model Number:
CNC-6080D
Warranty:
1 Year
Customized Support:
OEM, ODM
Product Name:
Lab Universal CMM Optical Measuring Machine Image Inspection System
Model:
CNC-6080D
Color:
White
General Use:
Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material:
Granite
Usage:
Measuring
Weight:
1000KG
Power Supply:
AC 220V/50-60Hz
Type:
Fully Automatic
Usage:
Optical System
Highlight:

High Light

Highlight:

Universal Gantry Coordinate Measuring Machine

,

CMM Gantry Coordinate Measuring Machine

,

Optical cmm measuring machine

Trading Information
Minimum Order Quantity:
1
Price:
$31,000.00/sets
Packaging Details:
Lab Universal CMM Optical Measuring Machine Image Inspection System Wooden Cases
Delivery Time:
7days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description

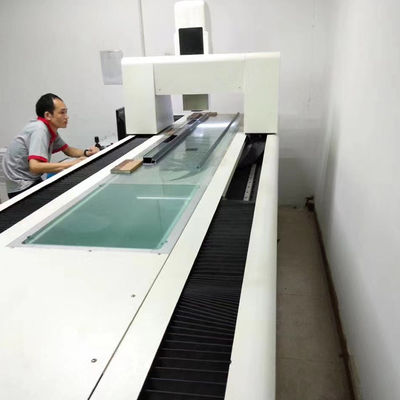

Universal CMM Gantry Coordinate Measuring Machine For Optical Laboratory
Lab Universal CMM Optical Measuring Machine Image Inspection System
Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm 0
Technical Specifications
Items CNC-6050D CNC-6070D CNC-6080D
Dimension (mm) (L×W×H) 1200×1100×1650 1200×1300×1650 1200×1400×1650
Measuring range (mm) (X×Y×Z) 600×500×200 600×700×200 600×800×200
Measuring Accuracy (μm) 3+L/200 3+L/200 3+L/200
Repeatability (μm) 3 3 3
Weight (kg) 1000 1100 1200
Image and Measuring System
CCD Japanese SONY CCD
Lens High definition zoom lens/Continuous magnification 0.7-5.0x
Magnification 40-230X (For reference only. With different camera and lens the magnification will be different.)
Optical scale resolution X/Y/Z axis 0.0002mm (0.2μm)
Working distance 108mm
Measurement Software
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving System
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination
Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source. Different colors are added to different products.
Key Advantages
  • High-precision fully automatic measurement, CNC four-axis control
  • HD Japanese SONY CCD camera, high quality measuring screen
  • Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe
  • Surface light, LED profile light, coaxial light - choose match programmable three ring eight area light
  • Laser pointer indicates the position of measuring, rapid positioning and convenient measurement
  • Can match foot switch, easy to operate at any place
Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm 1 Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm 2
Service & Support
Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm 3
  • 12-month warranty from time of receipt
  • Phone and internet teaching with comprehensive after-sale advisory service
  • Lifetime warranty services for machine (cost-based)
  • Long-life after-sale advisory service beyond warranty period
  • Spare parts available at cost
  • After-sales value added technical service at preferential prices for life
Company Information
Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm 4 Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm 5
Packaging & Shipping
Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm 6
Frequently Asked Questions
Universal CMM Gantry Coordinate Measuring Machine with Granite Material, Fully Automatic Operation, and High Precision 3+L/200μm 7
What kind of equipment do you mainly produce?
Our main production equipment includes: automatic image measuring instrument, manual image measuring instrument, large gantry image measuring instrument, one key measuring instrument, automatic vision screening equipment, and non-standard vision detection equipment.
Do you accept custom service? Can I print my logo on the machine?
Yes, all of our products can be customized, including logo printing requirements.
Why do you choose us?
  • Over 10 years of experience in measurement products with professional R&D and after-sales teams
  • Located in Dongguan City, a world-famous manufacturing hub
  • 12-month after-sales service with simple problems resolved within 48 hours
What is your delivery time? What about the packing?
Standard delivery time is 15-20 working days after receiving deposit (25-35 working days for customized machines). Professional machine packaging includes internal film wrapping and fixation, with external wooden box packaging and screw fixing to ensure safe arrival without damage.
Is on-site training available?
Yes, on-site training is available. Please coordinate specific timing with our sales team in advance.
