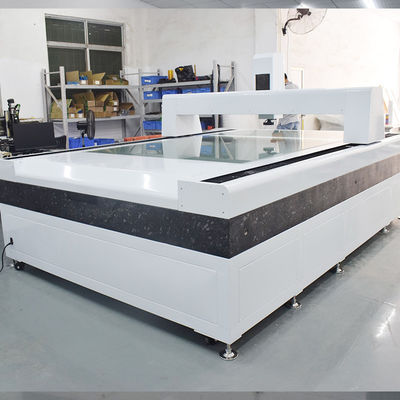

High Accuracy Vision Measurement Machine 2D 3D For Precision Parts
Factory Direct Supply Professional High Accuracy 2D and 3D Measurement Vision Machine for Precision Parts
Technical Specifications
| Items |
CNC-6050D |
CNC-6070D |
CNC-6080D |
| Dimension (mm) (L×W×H) |
1200×1100×1650 |
1200×1300×1650 |
1200×1400×1650 |
| Measuring range (mm) (X×Y×Z) |
600×500×200 |
600×700×200 |
600×800×200 |
| Measuring Accuracy (μm) |
3+L/200 |
3+L/200 |
3+L/200 |
| Repeatability (μm) |
3 |
3 |
3 |
| Weight (kg) |
1000 |
1100 |
1200 |
Image and Measuring System
| CCD |
Japanese SONY CCD |
| Lens |
High definition zoom lens/Continuous magnification 0.7-5.0x |
| Magnification |
40-230X (For reference only. With different camera and lens the magnification will be different.) |
| Optical Scale Resolution |
X/Y/Z axis 0.0002mm (0.2μm) |
| Working Distance |
108mm |
Measurement Software
Combines 3D measurement software developed with imported software functions to improve boundary resolution.
Driving System
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination System
Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source. Different colors are added to different products.
Our Advantages
High-Precision Automation
Fully automatic measurement with CNC four-axis control
Premium Construction
00-class marble base/column/workbench with high precision and stability
Precision Drive System
XYZ three-axis imported precision linear guide / imported grinding grade ball screw drive system
Advanced Optics
WM0750 automatic zoom optical lens enables fully automatic measurement without zoom correction
High-Quality Imaging
HD SONY CCD camera with high quality measurement screen
Multi-Function Measurement
Autofocus measurement, optical altimetry flatness, UK RENISHAW contact probe
Advanced Lighting
Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source
User-Friendly Operation
Equipped with joystick for easy operation and navigation CCD camera for quick positioning
Our Services
- 12-month warranty from time of receipt
- Phone and internet teaching with comprehensive after-sale advisory service
- Life warranty services for machines (cost-based)
- Free technical service with cost coverage for tickets and accommodation
- Long-life after-sale advisory service beyond warranty period
- Cost-based spare parts availability
- After-sales value added technical service at preferential prices for life
Company Information
Packaging & Shipping
Frequently Asked Questions
How to Choose the Appropriate Specification
After understanding your requirements, our professional team will provide the best solutions by sending catalog specifications, demonstration videos, or other methods according to customer needs.
Delivery Terms
Standard delivery time is 5 working days after receiving deposit or order confirmation, and 10-20 working days for customized machines. Professional packaging includes machine packaging film inside, with wooden box packaging and screw fixing externally to ensure safe arrival without damage.
Customized Services
Yes, OEM services are welcome.
Warranty Period
12-month warranty period. After warranty, our professional after-sales service team provides comprehensive technical support to solve problems and handle customer complaints promptly.
International Client Base
Our equipment has been supplied to over 30 countries including Malaysia, India, Japan, Pakistan, Philippines, Singapore, Thailand, Vietnam, Korea, UK, Italy, Germany, USA, Poland, Russia, Turkey, Mexico, Ecuador, Canada, Israel and more.
Installation and Usage
We provide English operating instructions and videos. If near our agent, on-site service is available, or we can send engineers to your country for installation and training (additional costs for airfare and accommodation apply).
