Product Details:
|
Warranty: | 1 Year | Customized Support: | OEM, ODM |
---|---|---|---|

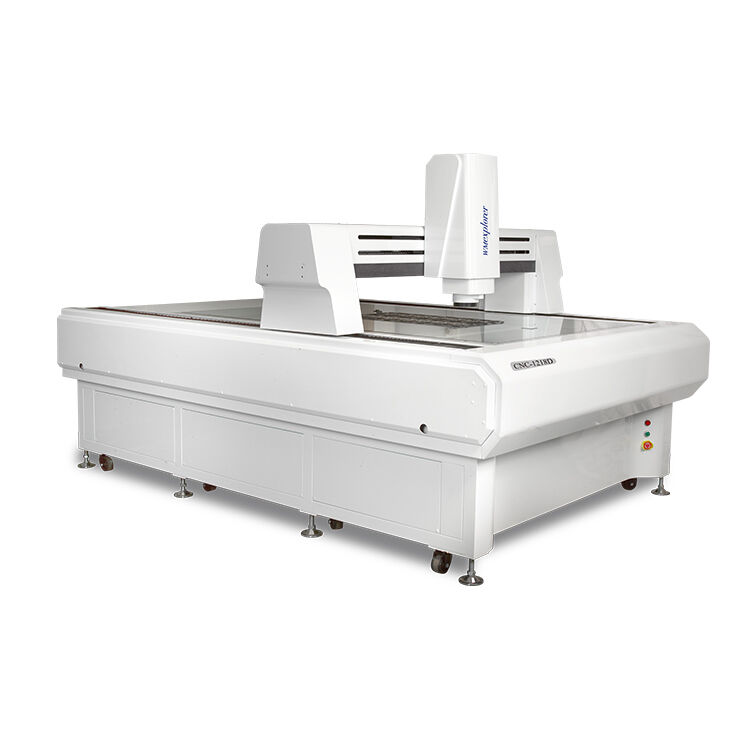

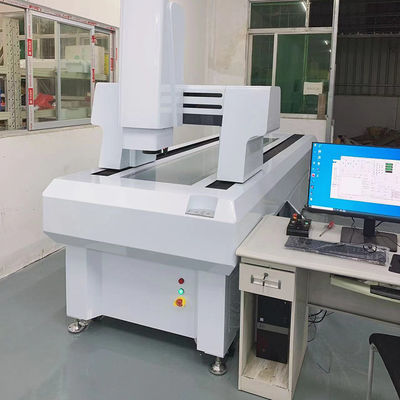

Product Name: | Battery Box Measuring Machine | Model: | CNC-6080D |
Color: | White | General Use: | Electronices ,plastics,mold,machinery,hardware,clocks,mobile |
Material: | Granite | Usage: | Measuring |
Weight: | 1000KG | Power Supply: | AC 220V/50-60Hz |
Type: | Fully Automatic | Usage: | Optical System |
High Light: | Customized Video Coordinate Measuring Machine,Battery Box Video Coordinate Measuring Machine |
Items
|
CNC-6050D
|
CNC-6070D
|
CNC-6080D
|
Dimension(mm)(L×W×H)
|
1200*1100*1650
|
1200*1300*1650
|
1200*1400*1650
|
Measuring range(mm)(X×Y×Z)
|
600*500*200
|
600*700*200
|
600*800*200
|
Measuring Accuracy(μm
|
3+L/200
|
3+L/200
|
3+L/200
|
Repeatability (μm)
|
3
|
3
|
3
|
Weight(kg)
|
1000
|
1100
|
1200
|
Image and Measuring
|
CCD
|
Japanese SOnYCcD
|
|
Len
|
High definition zoomlens/Continuous magnification 0.7-5.0x
|
|
Magnification
|
40-230X( For reference only. With different camera and lens the magnification will be different. )
|
|
ptical scale resolution
|
x/Y/z axis o.0002mm ( 0.2um )
|
|
Working distance
|
108mm
|
Measurement software
|
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
|
Driving system
|
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
|
Illumination
|
Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are
added to different products. |
Characteristic:
Measurement method variety (automatic discriminant, mining point measuring contrast measurement, tolerance measurement comparison. Preset element), can satisfy different customers' needs, greatly improve the ease of use and measuring precision.
Single point sampling method mining point, there are a variety of mouse reticle edge point, amplified by points. Closed to measure the perimeter of the cloud line, area and center of gravity, the use of three interpolation algorithm,for the most accurate measuring method of cloud line.
Can undertake box to choose measurement more round, fast and accurate measurement of multiple round at a time.
The measured data can be saved as a DXF file, or BMP images, and the user program format
Can measure the 12 kinds of elements (point, line,circle, arc,ellipse, rectangle,trough, O shape, distance and Angle, open cloud cloud line and closing lines).
