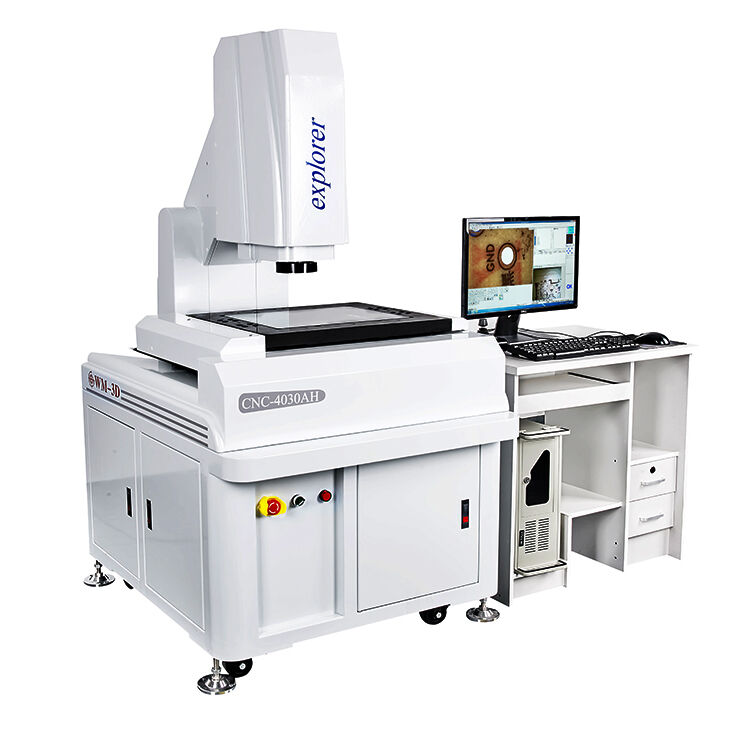

OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting

OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting

Large Image :  OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-3020AH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $10,000.00/set
Packaging Details: Cheap optical tool presetting CNC Optical Measuring Machine video measuring system Wooden Cases
Delivery Time: 2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/ 7days
Contact Now

OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting

Description
Warranty: 1 Year Customized Support: OEM, ODM
Product Name: Cheap Optical Tool Presetting CNC Optical Measuring Machine Video Measuring System Model: CNC-3020AH
Color: White General Use: Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material: Granite Usage: Measuring
Weight: 300KG Power Supply: AC 220V/50-60Hz
Type: Fully Automatic Usage: Optical System
High Light:

OEM Contour Measuring Machine

,

Contour Measuring Machine CNC

,

Optical CNC Vision Measuring System

Cheap optical tool presetting CNC Optical Measuring Machine video measuring system

Products Description
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting 0
Items
CNC-3020AH
CNC-4030AH
CNC-5040AH
Dimension(mm)(L×W×H)
700*850*1650
800*900*1650
900*1050*1650
Measuring range(mm)(X×Y×Z)
300*200*200
400*300*200
500*400*200
Measuring Accuracy(μm
3+L/200
3+L/200
3+L/200
Repeatability (μm)
3
3
3
Weight(kg)
300
380
450
Image and Measuring
CCD
Japanese SOnYCcD

Len
High definition zoomlens/Continuous magnification 0.7-5.0x

Magnification
40-230X( For reference only. With different camera and lens the magnification will be different. )

ptical scale resolution
x/Y/z axis o.0002mm ( 0.2um )

Working distance
108mm
Measurement software
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving system
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination
Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are
added to different products.



Characteristics:

1.Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically, it makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.

2.Graph function key is black.

3.Graph constructive key is red.

4.Visual tool function key is black and green.



What kind of equipment do you mainly produce?

A:Hello! Our main production equipment are:

automatic image measuring instrument,

manual image measuring instrument,

large gantry image measuring instrument,

one key measuring instrument.

Automatic vision screening equipment,

non-standard vision detection equipment, etc.

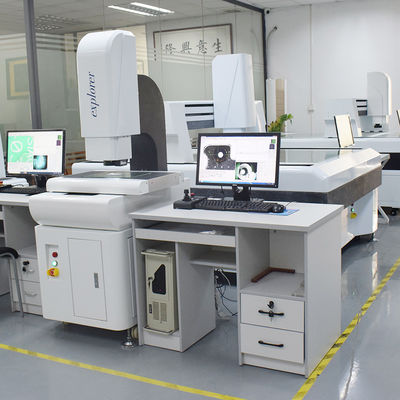

OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting 1
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting 2
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting 3
Our Services
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting 4
1.Warranty within 12 months from the time of receipt 2.During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service. 3.We provide life warranty services of machine for users with cost. 01.If machine failure caused by our side, you can send back the spare parts to us and the cost by our side. 02.But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation. 4.Extra warranty period: We will provide to user after-sale long-life advisory service. 5.Our company has spare parts which can be provided for the users with cost. 6.We provided users with after-sales value added technical service by preferential price for life,
Company Information
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting 5
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting 6
Packaging & Shipping
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting 7
FAQ
OEM Contour Measuring Machine , CNC Vision Measuring System For Optical Tool Presetting 8
Q1: What kind of equipment do you mainly produce?A: Hello! Our main production equipment are: automatic image measuring instrument,manual image measuring instrument,large gantryimage measuring instrument,one key measuring instrument. Automatic vision screening equipment, non-standard vision detection equipment, etc. Q2: Do you accept custom service? Can l print my logo on the machine?A: Yes, all of our products can be customized , if you have a logo requirement,we can also customize for you. Q3: why do you choose us? A: 1.We have focused on the measurement of products for more than 10years, with a professional R & Dteam and after-sales team. A2.It is located in Dongguan City, a world-famous manufacturing city. A3: after-sales service for 12 months, simple problems within 48 hours todeal with timely.Q4: what is your delivery time? what about the packing? A: Our delivery time is 5 working days after receiving the deposit or order confirmation,and 10-20 working days for customized machines.Our packaging is wrappedand fixedwith professional machine packaging film inside, and woodenbox packaging and screwfixing are used on the outside.Ensure that theproduct arrives safely without damage. Q5:Is on-site training available? A: can, the need for on-site training needs to confirm the specific time withQ5:What are the payment terms? A:T/T,L/C, western Union, etc.Q6.wWhat are your payment terms? A: T/T 30% as a deposit,70% before delivery.Before you pay the balance, we will showyou the photos ofthe product and packaging. or 100% LC at sight. Q7:Can we test samples before placing an order? A: Of course, we can test samples for free and provide you with a test report.lf you have any difficulties, please contact our business manager

Tag:

Precision CNC Video Measuring System,

CNC Optical Metrology System,

Automatic Contour Measuring Machine
