Product Details:
|
Warranty: | 1 Year | Customized Support: | OEM, ODM |
---|---|---|---|

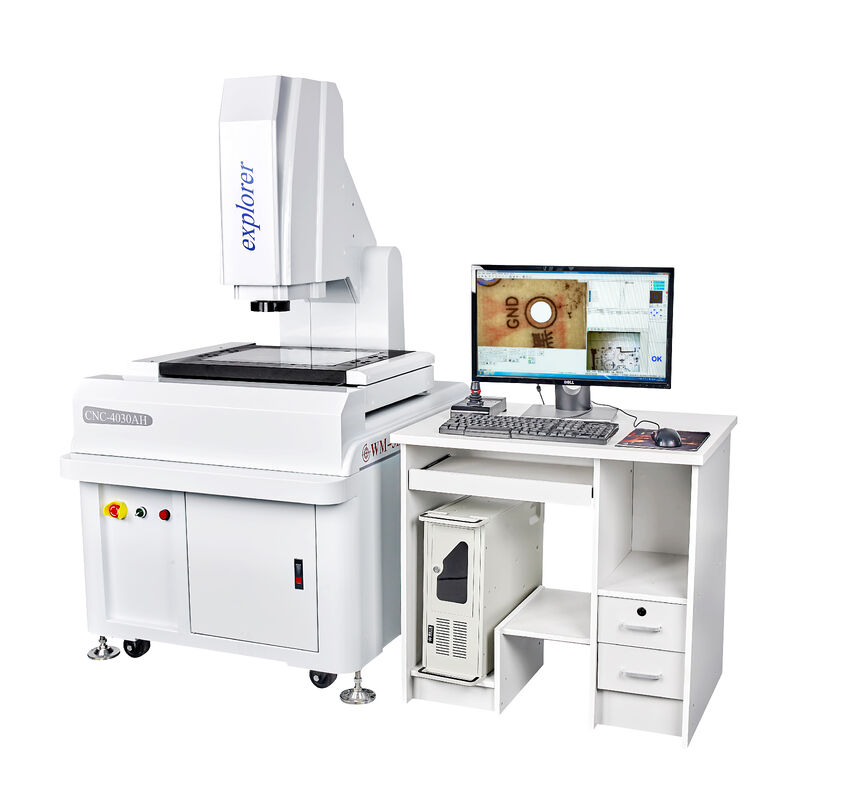

Product Name: | Perfect Factory Manufacture High Precision XYZ Dimension Measuring Cnc Video Measuring System | Model: | CNC-4030AH |
Color: | White | General Use: | Electronices ,plastics,mold,machinery,hardware,clocks,mobile |
Material: | Granite | Usage: | Measuring |
Weight: | 350KG | Power Supply: | AC 220V/50-60Hz |
Type: | Fully Automatic | Usage: | Optical System |
High Light: | Automatic XYZ Measurement System,XYZ Measurement System ODM,Video Measuring Instrument OEM |
Items
|
CNC-3020AH
|
CNC-4030AH
|
CNC-5040AH
|
Dimension(mm)(L×W×H)
|
700*850*1650
|
800*900*1650
|
900*1050*1650
|
Measuring range(mm)(X×Y×Z)
|
300*200*200
|
400*300*200
|
500*400*200
|
Measuring Accuracy(μm
|
3+L/200
|
3+L/200
|
3+L/200
|
Repeatability (μm)
|
3
|
3
|
3
|
Weight(kg)
|
300
|
380
|
450
|
Image and Measuring
|
CCD
|
Japanese SOnYCcD
|
|
Len
|
High definition zoomlens/Continuous magnification 0.7-5.0x
|
|
Magnification
|
40-230X( For reference only. With different camera and lens the magnification will be different. )
|
|
ptical scale resolution
|
x/Y/z axis o.0002mm ( 0.2um )
|
|
Working distance
|
108mm
|
Measurement software
|
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
|
Driving system
|
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
|
Illumination
|
Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are
added to different products. |
Q1: What kind of equipment do you mainly produce?
A: Hello! Our main production equipment are: automatic image measuring instrument,manual image measuring instrument,large gantryimage measuring instrument,one key measuring instrument. Automatic vision screening equipment, non-standard vision detection equipment, etc.
Q2: Do you accept custom service? Can l print my logo on the machine?
A: Yes, all of our products can be customized , if you have a logo requirement,we can also customize for you.
Q3: what is your delivery time? what about the packing?
A: Our delivery time is 5 working days after receiving the deposit or order confirmation,and 10-20 working days for customized machines. Our packaging is wrappedand fixedwith professional machine packaging film inside, and wooden box packaging and screwfixing are used on the outside.Ensure that theproduct arrives safely without damage.
Q4:Is on-site training available?
A: can, the need for on-site training needs to confirm the specific time withQ5:What are the payment terms? A:T/T,L/C, western Union, etc.
Q5.What are your payment terms?
A: T/T 30% as a deposit,70% before delivery.Before you pay the balance, we will showyou the photos ofthe product and packaging. or 100% LC at sight.
Q6:Can we test samples before placing an order?
A: Of course, we can test samples for free and provide you with a test report.lf you have any difficulties, please contact our business manager
