High Precision Optical Profile Projector Vertical Two Dimensional

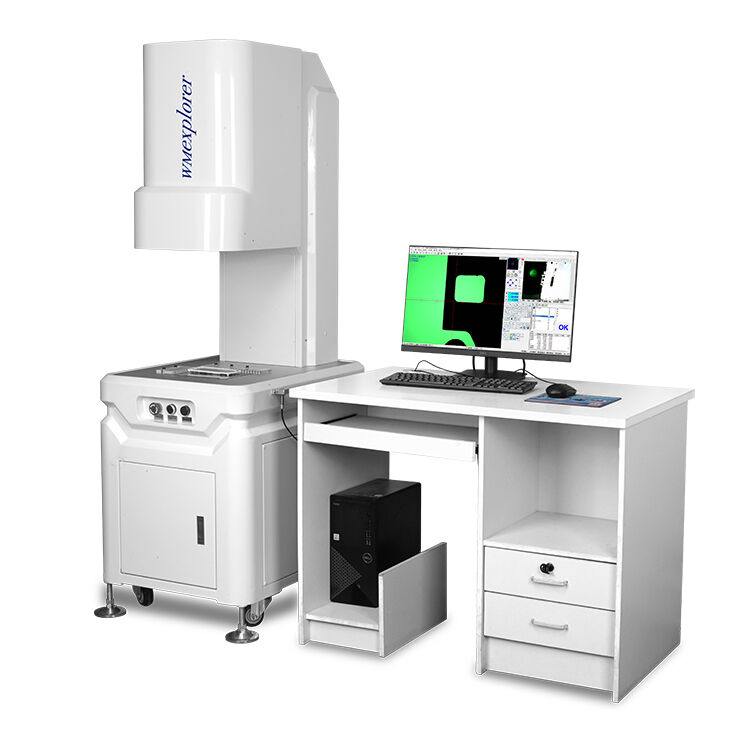

Large Image : High Precision Optical Profile Projector Vertical Two Dimensional

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WangMin Optical
Certification:	ISO9001
Model Number:	CPJ-3020

Payment & Shipping Terms:

Price:	$5,000.00/sets 1-4 sets
Packaging Details:	High Precision Two dimensional Optical vertical profile projector<br>Packed in wooden cases exempted from inspection <br>woodern case:120012001500mm

Contact Now

High Precision Optical Profile Projector Vertical Two Dimensional

Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Name:	High Precision Optical Profile Projector	Accuracy:	3um
Function:	Distance	Material:	Stainless Steel
Color:	White	Weight:	230kg
Product Name:	High Precision Optical Profile Projector
High Light:	High Precision Optical Profile Projector , Optical Profile Projector Vertical , Two Dimensional vertical profile projector

High Precision Two dimensional Optical vertical profile projector

Product Description

Functions

Rotation 360 Optical Measuring Vertical Profile Projector :

1. vertical profile projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.

2. rotation 360 optical mesuring vertical profile projector can inpect all kinds of surface and outline of compli-cated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.

3. optical measuring vertical profile projector widely used in the trade of mechanism, meter, electricity, ligt industry, college, research institute and measurement-inslecting department.

4. Measurement data can output and connect printer and computer.

Specifications

2drotation 360 optical vertical profile projector specification:

Model		CPJ-3020
Table	The metal table’s size	*450280mm**
	The glass table’s size	*306196mm**
	X-axis travel	200mm
	Y-axis travel	100mm
	Z-axis travel	90 (for focus)
	Measuring accuracy	3+L/200 um
	Resolution(X-axis,Y-axis): 0.001 mm
Projector screen	Screen size (mm): Ø 312 Used range>Ø 300(with the meter line)
	Screen rotary range: 0°~360°
	Resolution(X-axis,Y-axis): 1´ or 0.01°
Lens	Magnification: 10X option 20X option 50X option 100X option
	Object view(mm): Ø30 Ø15 Ø6 Ø3
	Working distance(mm): 77.7 44.3 38.4 25.3
	Max.workpiece height: 80mm 80mm 80mm 80mm
Data Processing System	DP-100multi-function data processing system, appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance.
Illumination	The illumination of transmission and reflection: 24V/150W-halogen lamp.
Power	110V/220V(AC), 50/60HZ, Total power=400W
Cold	Forced air cooling
Dimensions	*8008001150mm*
Weight	230kg

Our Services

12 months warranty. Buy with confidence!

1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free,except ticket and accommodation.
4. Extra warranty period: We will provide to user after-sale long-life advisory service.

5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sale value added technical service by preferential price for life.
