Manual Coordinate Measuring Machine
>
3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics
3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics
  • 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics
  • 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics
  • 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics
  • 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics
  • 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics
  • 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics
  • 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics

3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics

Product Details:
Place of Origin: Guangdong, China
Brand Name: WangMin Optical
Certification: iso9001
Model Number: VMS-2010
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
WangMin Optical
Certification:
iso9001
Model Number:
VMS-2010
Warranty:
1 Years, 12months
Customized Support:
OEM, ODM
Name:
Factory Supplier Provide Image Measuring Instrument With Good Price
Accuracy:
3um
Velocity:
Hand Control
Function:
Measuring And Detect
General Use:
Electrics,plastics,mold,machinery,connectors And Mobile
Color:
White
Power:
220V /50HZ
Highlight:

High Light

Highlight:

Manual vmm video measuring machine

,

3D vmm video measuring machine

,

Electronics vmm measuring machine

Trading Information
Price:
$3,000.00/sets 1-1 sets
Packaging Details:
HD equipment Metal Workpiece 3d Automatic Vision Measuring Machine Vmm
Export wooden box packaging
Factory Price!!optical Metal Image Measuring Machine
wooden case:950*850*1390MM
Product Description
3D Manual VMM Video Measuring Machine For Electronics & Plastics
High Definition Vision Measuring System
Precision 3D automatic vision measuring machine designed for electronics, plastics, and metal workpieces with advanced optical measurement capabilities.
3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 0 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 1
Technical Specifications
Items VMS-2010F VMS-3020-F VMS-4030F VMS-5040F
Dimension (mm) L×W×H 500×700×1100 600×750×1100 700×900×1150 850×1050×1200
Measuring Range (mm) X×Y×Z 200×100×200 300×200×200 400×300×200 500×400×200
Measuring Accuracy (μm) 3+L/200 3+L/200 3+L/200 3+L/200
Repeatability (μm) 3 3 3 3
Weight (kg) 150 180 200 240
Imaging & Measurement System
CCD Camera: High-quality Japanese Sony CCD
Lens: WM HD zoom lens with continuous magnification 0.7-4.5x
Magnification: 30-210X
Optical Scale Resolution: X/Y/Z axis 0.0005mm (0.5μm)
Measuring Range: 9.0mm-1.35mm
Advanced Features
  • Auxiliary focusing measurement for optical altitude and flatness measurement
  • Compatible with British RENISHAW contact probe
  • Versatile data processor measures points, lines, loops, circles, angles, and more
  • Surface light and projection light illumination with cold light technology
  • Long-life LED lighting with adjustable brightness
Technical Advantages

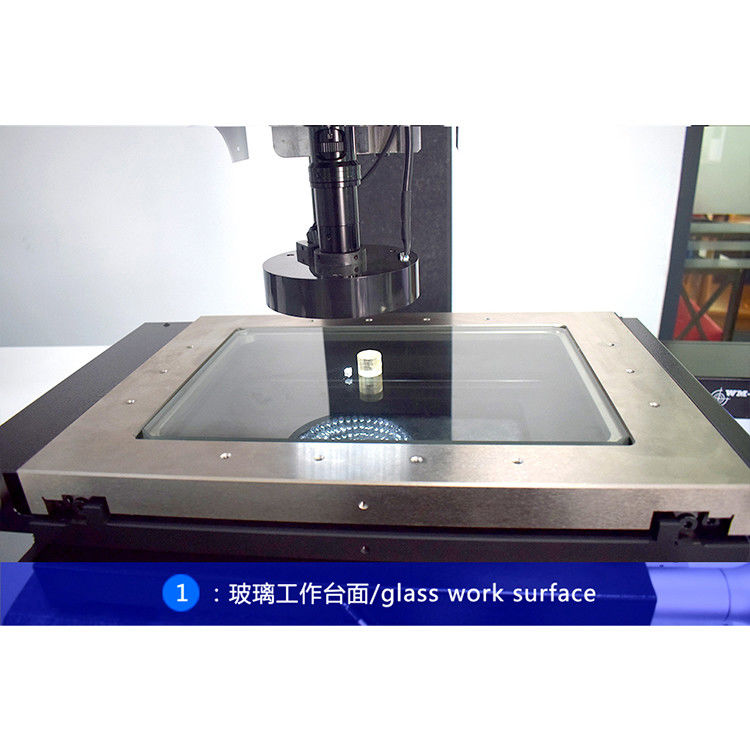

  • High precision and strength: Granite marble base, upright column, and worktable for exceptional stability
  • Precision movement: XYZ three-axis imported V-type guide rails and optic axis drive system
  • Optical excellence: WM continuous zoom optical lens without zoom correction requirements
  • Superior imaging: HD Japanese Sony CCD camera for high-quality measurement screens
  • Enhanced measurement: Auxiliary focusing with optical altitude and flatness measurement
  • Advanced illumination: Programmable three-ring eight-area lighting system
  • Laser positioning: Laser pointer for rapid positioning and convenient measurement
  • Foot switch compatibility: Optional foot switch for flexible operation
3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 2
Warranty & Service
3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 3
12-Month Comprehensive Warranty
  • 12 months from date of assembly and acceptance, not exceeding 15 months from shipment date
  • Phone and internet teaching support with comprehensive after-sales advisory service
  • Lifetime warranty services available (cost-based for certain components)
  • Free technical service for machine failures caused by manufacturer (excluding travel and accommodation)
  • Lifetime after-sales advisory service and technical support
  • Cost-based spare parts availability
  • Lifetime value-added technical services at preferential prices
Company Information
3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 4 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 5
Quality Certifications
3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 6
Certified Precision: Our measurement software is certified by national professional standard measurement organizations. Our machines can provide HSR agency standard measurement certification.
Packaging & Shipping
3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 7 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 8
Frequently Asked Questions
3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 9 3um Accuracy Manual Coordinate Measuring Machine with Hand Control and HD Japanese Sony CCD for Electronics and Plastics 10
