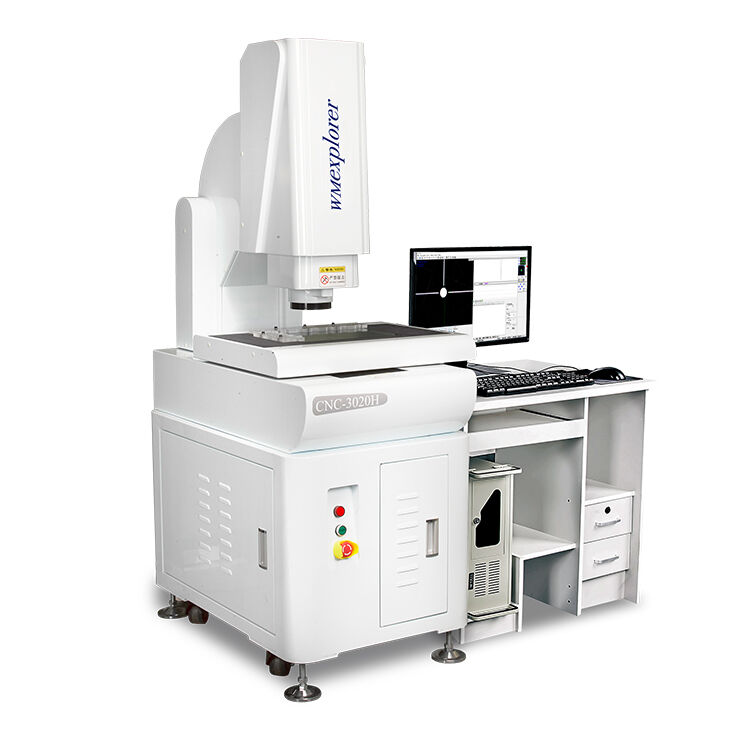

200mm/S Optical Measuring Device System For Machinery Industry OEM

200mm/S Optical Measuring Device System For Machinery Industry OEM
200mm/S Optical Measuring Device System For Machinery Industry OEM
200mm/S Optical Measuring Device System For Machinery Industry OEM 200mm/S Optical Measuring Device System For Machinery Industry OEM 200mm/S Optical Measuring Device System For Machinery Industry OEM 200mm/S Optical Measuring Device System For Machinery Industry OEM 200mm/S Optical Measuring Device System For Machinery Industry OEM 200mm/S Optical Measuring Device System For Machinery Industry OEM 200mm/S Optical Measuring Device System For Machinery Industry OEM

Large Image :  200mm/S Optical Measuring Device System For Machinery Industry OEM

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-3020AH
Payment & Shipping Terms:
Price: $18,000.00/sets 1-4 sets
Packaging Details: R&amp;D in ChinaHigh-volume workpiece measurer for machinery industry video measuring machine optical machinery optical instruments<br>CNC-3020WM Image Test Machine <br>Wooden case size:1250*1350*2150mm

200mm/S Optical Measuring Device System For Machinery Industry OEM

Description
Warranty: 3 Years Customized Support: OEM, ODM
Name: CNC Optical Measuring System Price Accuracy: 3um
Velocity: 200mm/s Function: Measuring And Detect
General Use: Electrics,plastics,mold,machinery,connectors And Mobile Color: White
Power: 220V /50HZ Product Name: CNC Optical Measuring System Price
High Light:

200mm/S Optical Measuring Device

,

OEM Optical Measuring Device

,

Machinery optical measuring system

R&D in China High-volume workpiece measurer for machinery industry video measuring machine optical machinery optical instruments

200mm/S Optical Measuring Device System For Machinery Industry OEM 0

Product Description

200mm/S Optical Measuring Device System For Machinery Industry OEM 1

Model

CNC-3020



Glass table Size



330*230



Metal table Size

350*250



Working travel X.Y

300*200



Z-axis travel lift(mm)

200 focus



X.Y.Z-axis digital display resolution

0.5um



X.Y axis value error

≤(3+L/200)L is the measured length,unit mm)



Weight(kg)

720



Dimession

700*900*1650

Motor

Three axis velocity

100mm/s



Three axis positioning accuracy

0.001mm

Image system

Camare

Sony color 1/3″CCD camera



Zoom

 coaxial optical zoom lens with a zoom lens (2 select one)



Zoom magnification

0.7-4.5X



Video total magnification

30-230X



Objector field

11.1-1.7mm



Power

AC220V/AC110V



Power consumption

100W

Insreument accessories

1Xtube(option)

0.5Xtube(option)

Working distance

Zoom lens

0.7-4.5X

0.7-4.5X



Add lens

Video magnification

Material side field(mm)



Video magnification

Material side field(mm)





0.5X option

11.8X-74X

22-3.4

5.9X-37X

44-6.8

175

Standard

23.5X-148X

11.1-1.7X

11.8X-74X

22-3.4

92

2Xoption

47X-296X

5.5-0.9

23.5X-148X

11.1-1.7

36

Functions



200mm/S Optical Measuring Device System For Machinery Industry OEM 2
200mm/S Optical Measuring Device System For Machinery Industry OEM 3Mainly for metallograhpic measurement & analysis!These "Universal" models combine a measuring stand with the best of metallurgical microscope components for high resolution imaging and critical measurements. Featuring the full range of advanced infinity objectives and microscopy techniques including: brightfield,darkfield, DIC contrast, polarizing and epifluorescence.Up to five objectives may bemounted on the nosepiece.With more usages if upgraded.
Our Services

200mm/S Optical Measuring Device System For Machinery Industry OEM 4

12 months warranty. Buy with confidence!

1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free,except ticket and accommodation.

4. Extra warranty period: We will provide to user after-sale long-life advisory service.

5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sale value added technical service by preferential price for life.

Company Information

200mm/S Optical Measuring Device System For Machinery Industry OEM 5

200mm/S Optical Measuring Device System For Machinery Industry OEM 6

Certifications

200mm/S Optical Measuring Device System For Machinery Industry OEM 7

1.our software through the national professional organization of standard measurement certification.

2.our machines can give HSR agency  of standard measurement certification.
Packaging & Shipping

200mm/S Optical Measuring Device System For Machinery Industry OEM 8



FAQ

200mm/S Optical Measuring Device System For Machinery Industry OEM 9
