High Precision Manual Operated OMM Optical Measurement Machine with 3um Accuracy

Name: High Precision Manual Operated OMM Optical Measurement Machine with 3um Accuracy
Brand: Dongguan Wang Min Optical Instrument Co., Ltd.
SKU: VMS-4030F
Price: 2.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WangMin Optical
Certification:	iso9001
Model Number:	VMS-4030F

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

WangMin Optical

Certification:

iso9001

Model Number:

VMS-4030F

Warranty:

1 Year

Customized Support:

OEM, ODM

Name:

Factory Advanced Manual Operated Image Measuring Instrument With High Precision

Accuracy:

3um

Velocity:

Hand Control

Function:

Measuring And Detect

General Use:

Electrics,plastics,mold,machinery,connectors And Mobile

Color:

White

Power:

220V /50HZ

Highlight:

High Light

Highlight:

High Precision OMM Optical Measurement Machine

OMM Optical Measurement Machine Manual

omm machine 3um

Trading Information

Minimum Order Quantity:

Price:

USD5000.00/sets 1-4 sets

Packaging Details:

Factory Advanced Manual Operated Image Measuring Instrument With High Precision Wooden cases

Delivery Time:

2days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

100 sets/days

Product Description

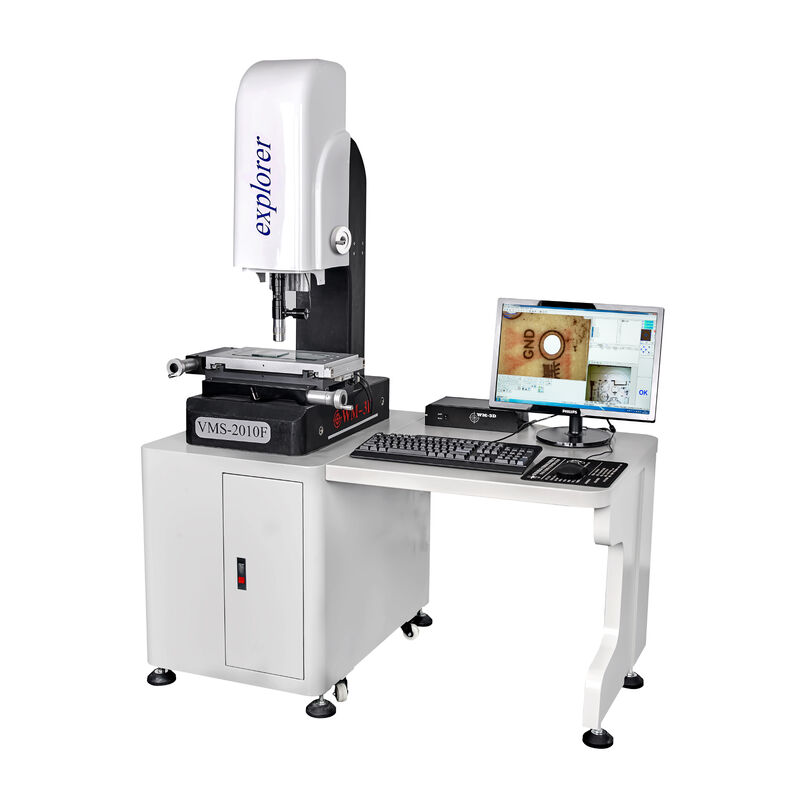

High Precision OMM Optical Measurement Machine

Manual Operated Image Measuring Instrument with 3μm Accuracy

Product Overview

This advanced manual operated image measuring instrument delivers exceptional precision for industrial measurement applications. Designed for accuracy and reliability in demanding manufacturing environments.

Key Features

Z-axis auto focus video measuring system for precise measurements
Measures points, lines, circles, arcs, ovals, and rectangles with multipoint positioning
Advanced measurement functions including combination measurements, center structure, intersection construction, midpoint construction, line structure, and round structure
Comprehensive data processing with output to Word, Excel, and AutoCAD formats
Statistical analysis capabilities with useful workpiece straightening function
Digital measurement system with coordinate studio, optical grating, and SDK-3000 data card
RS232 computer interface with specialized measurement software
Motorized Z-axis for automatic focus optimization

Application Functions

Primarily designed for metallographic measurement and analysis. These universal models combine a measuring stand with premium metallurgical microscope components for high-resolution imaging and critical measurements. Features include advanced infinity objectives and microscopy techniques: brightfield, darkfield, DIC contrast, polarizing, and epifluorescence. Accommodates up to five objectives on the nosepiece with upgrade options for expanded functionality.

Technical Specifications

Model	WM-2010F	WM-3020F	WM-4030F	WM-5040F
Worktable Metal Size (mm)	350×220	450×350	550×450	700×600
Worktable Glass Size (mm)	230×130	330×230	430×330	530×430
Three Axis Travel (mm)	200×100	300×200	400×300	500×400
Weight (kg)	170	260	300	500
Dimensions L×W×H (mm)	500×700×1100	600×750×1100	700×900×1150	850×1050×1200

Standard Measuring System

Camera: SONY 1/3" Color CCD Camera
Lens Magnification: 0.7-4.5X (WD: 95mm)
Total Magnification: 30-230X (Object View: 7-1.1mm)
Double Cross Line Generator Data Resolution: 0.001mm
Z-axis Lifting Travel: 150mm (Auto Focus)
X,Y-axis Indication Error: ≤(3+L/200)μm (L = measured length in mm)
Lighting: Surface and transmission LED lighting with adjustable brightness
Power: 220/110V AC, 50HZ, 30W

Warranty & Services

12-month comprehensive warranty
Coverage extends 12 months from assembly/acceptance or 15 months from shipment date
Phone and internet teaching support with comprehensive after-sales advisory service
Lifetime warranty services available (cost-based)
Free technical service for machine failures caused by manufacturer (excluding travel and accommodation)
Lifetime after-sales advisory service
Cost-based spare parts availability
Value-added technical services at preferential prices for life

Company Information

Certifications

Our measurement software is certified by national professional standard measurement organizations. All machines can provide HSR agency standard measurement certification.

Packaging & Shipping

Frequently Asked Questions

Q1: What kind of equipment do you mainly produce?

Our main production equipment includes: automatic image measuring instruments, manual image measuring instruments, large gantry image measuring instruments, one-key measuring instruments, automatic vision screening equipment, and non-standard vision detection equipment.

Q2: Do you accept custom service? Can I print my logo on the machine?

Yes, all our products can be customized, including logo printing according to your requirements.

Q3: Why should I choose your company?

Over 10 years of specialized experience in product measurement
Professional R&D and after-sales teams
Located in Dongguan City, a world-renowned manufacturing hub
12-month after-sales service with 48-hour response for simple issues

Q4: What is your delivery time and packaging method?

Standard machines: 5 working days after deposit/order confirmation. Custom machines: 10-20 working days. Professional packaging includes internal machine packaging film with external wooden box packaging and screw fixing to ensure safe delivery.

Q5: Is on-site training available?

Yes, on-site training is available. Please contact us to confirm specific timing arrangements.

Q6: What are your payment terms?

We accept T/T, L/C, Western Union, and other payment methods. Standard terms: 30% deposit, 70% balance before delivery, or 100% LC at sight.

Q7: Can we test samples before placing an order?

Yes, we provide free sample testing and detailed test reports. Contact our business manager for assistance.

Tags:

High Precision Manual Operated OMM Optical Measurement Machine with 3um Accuracy

High Light

Highlight:

High Precision OMM Optical Measurement Machine

OMM Optical Measurement Machine Manual

omm machine 3um

Optical Vision Measurement Machine,

Manual Video Measuring Equipment,

Mold OMM Optical Measurement Machine

3um Accuracy Video Measuring Systems Machines For Connectors Multifunctional

220V 50HZ Optical 2D Measuring Instrument Machine CE Certificate

2D VMS OMM Optical Measurement Machine For Stampings Dimensions Controlling

Microscope VMM Inspection Machine , Manual Video Measuring Equipment

Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional

220V 50Hz OMM Optical Measurement Machine For Electronics Plastics

Customized Small OMM Optical Measurement Machine with 3um Accuracy for Electronic Products
