Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional

Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional
Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional

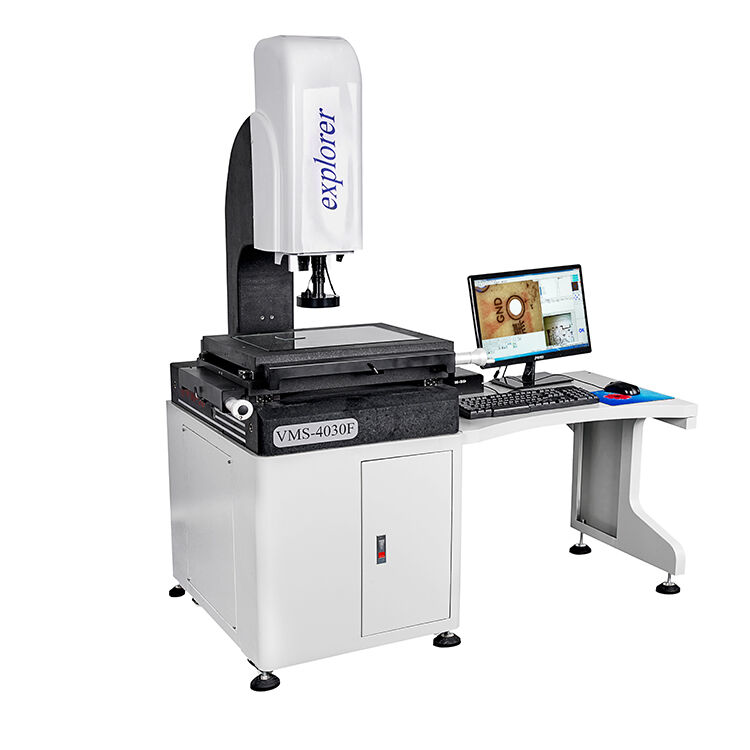

Large Image :  Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional

Product Details:
Place of Origin: Guangdong, China
Brand Name: WangMin Optical
Certification: iso9001
Model Number: VMS-2010
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2500.00/sets 1-4 sets
Packaging Details: Measuring Rquipments Manual Video Measuring Machine Wooden cases
Delivery Time: 2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/days

Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional

Description
Warranty: 1 Year Customized Support: OEM, ODM
Name: Measuring Rquipments Manual Video Measuring Machine Accuracy: 3um
Velocity: Hand Control Function: Measuring And Detect
General Use: Electrics,plastics,mold,machinery,connectors And Mobile Color: White
Power: 220V /50HZ
High Light:

Manual OMM Optical Measurement Machine

,

OMM Optical Measurement Machine 3um

,

optical measuring machine Multifunctional

Measuring Equipments Manual Video Measuring Machine

Product Description

Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional 0

1. Zaxis auto focus Video Measuring Machine can measure point, line, circle, arc and oval,rectangular with the multipoint positioning function, combination of measurements,center structure and the intersection of structure, the midpoint of construction, line structure,a round structure.

2. It has various functions of data processing, display, input and output, Measurement data output Word,Excel and Auto CAD directly to conduct statistical analysis, particularly, and the work piece straightening function is very useful.

3. Digital measurement and data processing system are made up by the two coordinate's studio,the optical grating and the SDK -3000 data card.

4. It has RS232 interface with a computer and specialized measurement software which can also processes and output circular mapping.

5. Z axis motorized, it can realize auto focus. make the image to be the clearest situation.
Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional 1
Functions
Mainly for metallograhpic measurement & analysis!These "Universal" models combine a measuring stand with the best of metallurgical microscope components for high resolution imaging and critical measurements. Featuring the full range of advanced infinity objectives and microscopy techniques including: brightfield,darkfield, DIC contrast, polarizing and epifluorescence.Up to five objectives may bemounted on the nosepiece.With more usages if upgraded.
Specifications

Model

WM-2010F

WM-3020F

WM-4030F

WM-5040F

Worktable

Metal table’s size(mm)

350*220

450*350

550*450

700*600

Glass table’s size(mm)

230*130

330*230

430*330

530*430

Three axis travel Travel(mm)

200*100

300*200

400*300

500*400

Weight(kg)

170

260

300

500

Dimension(L)*(W)*(H)

  500*700*1100

600*750*1100

700*900*1150

850*1050*1200

Measuring System

(Standard Accessories)

Camera :SONY1 / 3" Color CCD Camera

Lens magnification :0.7~4.5X       WD:95mm

Total magnification:30~230X        Object view:7~1.1mm

Double Cross Line Generator

Data Resolution:0.001mm

Z-axis lifting travel (mm):150mm (AUTO FOCUS)

The indication error of X,Y-axis ≤(3+L/200)µm (L be regarded as measured length, units: mm)

Lighting: Surface light and transmission light are used LED, brightness adjustable  Power:220/110V(AC),50HZ 30W

Our Services



12 months warranty. Buy with confidence!

1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free,except ticket and accommodation.

4. Extra warranty period: We will provide to user after-sale long-life advisory service.



5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sale value added technical service by preferential price for life.
Company Information

Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional 2

Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional 3

Certifications

Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional 4

1.our software through the national professional organization of standard measurement certification.

2.our machines can give HSR agency  of standard measurement certification.
Packaging & Shipping

Manual OMM Optical Measurement Machine 3um Accuracy Multifunctional 5



FAQ



Q1: What kind of equipment do you mainly produce?

A: Hello! Our main production equipment are: automatic image measuring instrument,manual image measuring instrument,large gantryimage measuring instrument,one key measuring instrument. Automatic vision screening equipment, non-standard vision detection equipment, etc.



Q2: Do you accept custom service? Can l print my logo on the machine?

A: Yes, all of our products can be customized , if you have a logo requirement,we can also customize for you.



Q3: why do you choose us?

A: 1.We have focused on the measurement of products for more than 10years, with a professional R & Dteam and after-sales team.

A2.It is located in Dongguan City, a world-famous manufacturing city.

A3: after-sales service for 12 months, simple problems within 48 hours todeal with timely.



Q4: what is your delivery time? what about the packing?

A: Our delivery time is 5 working days after receiving the deposit or order confirmation,and 10-20 working days for customized machines.Our packaging is wrappedand fixedwith professional machine packaging film inside, and woodenbox packaging and screwfixing are used on the outside.Ensure that theproduct arrives safely without damage.



Q5:Is on-site training available?

A: can, the need for on-site training needs to confirm the specific time with



Q6:What are the payment terms?

A:T/T,L/C, western Union, etc.



Q7.wWhat are your payment terms?

A: T/T 30% as a deposit,70% before delivery.Before you pay the balance, we will showyou the photos ofthe product and packaging. or 100% LC at sight.



Q8:Can we test samples before placing an order?

A: Of course, we can test samples for free and provide you with a test report.lf you have any difficulties, please contact our business manager
