High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System
  • High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System
  • High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System
  • High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System
  • High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System
  • High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System
  • High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System
  • High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System
  • High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System

High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: CNC-6050D
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
WM-3D
Certification:
ISO9001
Model Number:
CNC-6050D
Warranty:
1 Year
Customized Support:
OEM, ODM
Product Name:
New Software Measurement System For Metal Detection And Measurement Vision Measuring Machine
Model:
CNC-6050D
Color:
White
General Use:
Electronices ,plastics,mold,machinery,hardware,clocks,mobile
Material:
Granite
Usage:
Measuring
Weight:
1000KG
Power Supply:
AC 220V/50-60Hz
Type:
Fully Automatic
Usage:
Optical System
Highlight:

High Light

Highlight:

High Precision Optical CMM Machine

,

Optical CMM Machine 3D

,

automatic Video Measuring Systems

Trading Information
Minimum Order Quantity:
1
Price:
$30,000.00/sets
Packaging Details:
3D high precision video measuring systems optical measuring instrument optic measure system Wooden Cases
Delivery Time:
7days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description

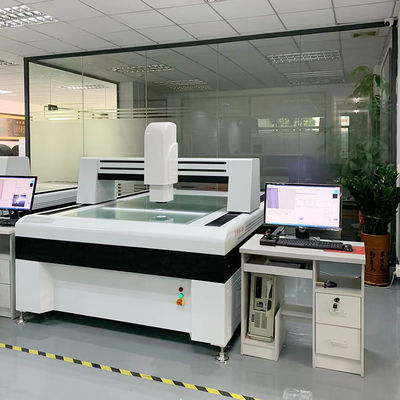

High Precision Optical CMM Machine - 3D Automatic Video Measuring Systems
Advanced 3D high precision video measuring systems and optical measuring instruments for industrial applications.
High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System 0
Technical Specifications
Items CNC-6050D CNC-6070D CNC-6080D
Dimension (mm) (L×W×H) 1200×1100×1650 1200×1300×1650 1200×1400×1650
Measuring Range (mm) (X×Y×Z) 600×500×200 600×700×200 600×800×200
Measuring Accuracy (μm) 3+L/200 3+L/200 3+L/200
Repeatability (μm) 3 3 3
Weight (kg) 1000 1100 1200
Imaging & Measurement System
Image and Measuring CCD
Lens High definition zoom lens / Continuous magnification 0.7-5.0x
Magnification 40-230X (Reference only - varies with camera and lens configuration)
Optical Scale Resolution X/Y/Z axis 0.0002mm (0.2μm)
Working Distance 108mm
System Components
Measurement Software: Advanced 3D measurement software combining imported software functionality with enhanced boundary resolution.
Driving System: X/Y/Z three-axis high-performance Taiwan servo motor with double closed-loop control system.
Illumination: Program-controlled five-ring eight-zone surface light source, LED contour light source, coaxial light source with color variations for different products.
Key Characteristics
  • Color-coded function keys (graph function, graph constructive, and visual tool) grouped tactically for enhanced operator-instrument communication and measurement speed
  • Graph function key: Black
  • Graph constructive key: Red
  • Visual tool function key: Black and green
High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System 1 High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System 2 High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System 3
Service & Support
High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System 4
  • 12-month warranty from receipt date
  • Comprehensive phone and internet teaching with combined after-sales advisory service
  • Lifetime warranty services for machine components (cost-based)
  • Free technical service (excluding travel and accommodation)
  • Lifetime after-sales advisory service
  • Cost-based spare parts availability
  • Lifetime value-added technical services at preferential prices
Company Information
High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System 5 High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System 6
Packaging & Shipping
High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System 7
Frequently Asked Questions
High Precision Fully Automatic Gantry Coordinate Measuring Machine with Granite Material for 3D Video Measuring System 8
Do you accept custom service? Can I print my logo on the machine?
Yes, all of our products can be customized, including logo printing according to your requirements.
Why should you choose us?
  • Over 10 years of specialized experience in product measurement
  • Professional R&D and after-sales teams
  • Located in Dongguan City, a world-renowned manufacturing hub
  • 12-month after-sales service with 48-hour resolution for simple issues
What is your delivery time? What about the packing?
Standard delivery time is 15-20 working days after deposit receipt (25-35 days for customized machines). Professional packaging includes internal machine packaging film with external wooden box and screw fixing to ensure safe, damage-free delivery.
