Video Measuring Machines
>
High Precision Optical Video Measurement Machine for Electronic Hardware with 330*230mm Glass Table

High Precision Optical Video Measurement Machine for Electronic Hardware with 330*230mm Glass Table

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: ISO9001
Model Number: VMS-3020F
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
WM-3D
Certification:
ISO9001
Model Number:
VMS-3020F
Warranty:
12 Months
Customized Support:
OEM, ODM, OEM, ODM
Power:
Electronic
Application:
Electronic, Hardware, Plastic, Mobile Phone, Circuit Board
Glass Table Size(mm)::
330*230
Actual Run Size(mm):
300*200*200mm
Raster Resolution(mm):
0.001mm/0.0005mm
Instrument Precision(μm):
X,Y (3+L/200)μm
Weight(Kg):
260Kg
Power Supply:
220/110V(AC),50HZ 30W
Certificate:
RoHS ISO9001
Port:
Shenzhen
Highlight:

High Light

Highlight:

OMM Video Measurement Machine

,

Optical Video Measurement Machine

,

Electronic Optical Measurement Machine

Trading Information
Minimum Order Quantity:
1
Price:
$3,000.00/sets 1-1 sets
Packaging Details:
Packing in export wooden cases
Delivery Time:
2days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
10sets/3days
Product Description
OMM Optical Video Measurement Machine For Electronic Hardware
OMM Size Measuring Equipment
Precision optical video measurement system designed for accurate dimensional analysis of electronic hardware components.

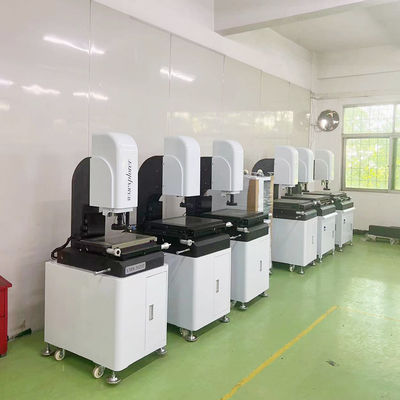

High Precision Optical Video Measurement Machine for Electronic Hardware with 330*230mm Glass Table 0 High Precision Optical Video Measurement Machine for Electronic Hardware with 330*230mm Glass Table 1
Technical Specifications
Items VMS-2010F VMS-3020-F VMS-4030F VMS-5040F
Dimension (mm) (L×W×H) 500×700×1100 600×750×1100 700×900×1150 850×1050×1200
Measuring range (mm) (X×Y×Z) 200×100×200 300×200×200 400×300×200 500×400×200
Measuring Accuracy (μm) 3+L/200 3+L/200 3+L/200 3+L/200
Repeatability (μm) 3 3 3 3
Weight (kg) 150 180 200 240
Image and Measuring System
  • CCD: Japanese Sony CCD
  • Lens: WM HD zoom lens / continuous magnification 0.7-4.5x
  • Magnification: 30-210X
  • Optical scale resolution: X/Y/Z axis 0.0005mm (0.5μm)
  • Measuring range: 9.0mm-1.35mm
  • Measuring system: Auxiliary focusing measurement, optical measuring altitude and flatness
  • Optional: British RENISHAW contact probe compatibility
  • Driving system: Versatile data processor measures points, lines, loops, circles, angles, etc.
  • Illumination: Surface light and projection light, cold light, long life, brightness adjustable
Key Advantages
  • High precision and high strength machine: 00 marble base / upright column / worktable for excellent stability
  • XYZ three axis imported precision V-type guide rail / imported optic axis drive system for long service life
  • WM Continuous zoom optical lens with different frames and magnification, without zoom correction
  • HD Japanese Sony CCD camera for high quality measuring screen
  • Auxiliary focusing measurement with optical altitude and flatness measurement
  • Programmable three ring eight area lighting system with surface light, LED profile light, and coaxial light options
  • Laser pointer for rapid positioning and convenient measurement
  • Foot switch compatibility for flexible operation
High Precision Optical Video Measurement Machine for Electronic Hardware with 330*230mm Glass Table 2
Warranty and Services
High Precision Optical Video Measurement Machine for Electronic Hardware with 330*230mm Glass Table 3
12 months warranty. Buy with confidence!
  • Warranty period: 12 months from assembly and acceptance, not exceeding 15 months from shipment date
  • Comprehensive phone and internet teaching with combined after-sale advisory service
  • Lifetime warranty services for machine components
  • Free technical service for machine failures caused by our side (excluding travel and accommodation)
  • Lifetime after-sale advisory service beyond warranty period
  • Cost-based spare parts availability
  • Lifetime value-added technical service at preferential prices
