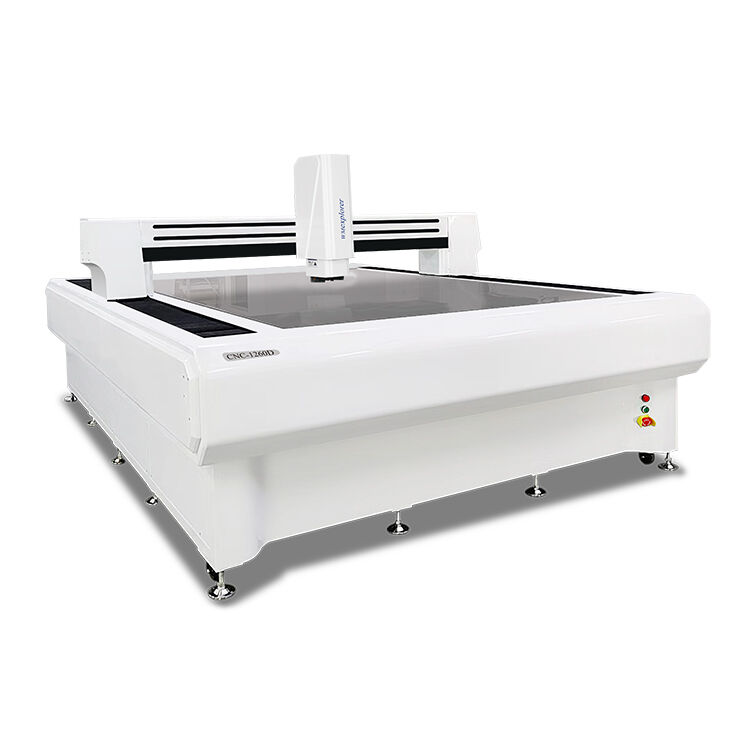

3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity

3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity
3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity
3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity

Large Image :  3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity

Product Details:
Place of Origin: Guangdong, China
Brand Name: WM-3D
Certification: iso9001
Model Number: CNC-1016
Payment & Shipping Terms:
Price: $43,000.00/sets 1-4 sets
Packaging Details: 3D high precision video measuring systems optical measuring instrument optic measure system<br>Automatic image sizing machine<br>Wooden case size:2300*3200*2300mm
Contact Now

3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity

Description
Warranty: 1 Year, 18 Months Customized Support: OEM, ODM
Power: Electronic, 220V /50HZ Name: High Accuracy Video Measuring Instrument
General Use: Electrics,plastics,mold,machinery,connectors And Mobile Function: Measure And Detect
Accuracy: 3um Velocity: 200mm/s
Weight: 3600KG Color: White
Product Name: High Accuracy Video Measuring Instrument
High Light:

Precision Gantry Coordinate Measuring Machine

,

Gantry Coordinate Measuring Machine 200mm/S

,

3D Coordinate Measuring Machine

3D high precision video measuring systems optical measuring instrument optic measure system

Product Description

3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 0

1. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.
2. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
3. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
4. With marble platform, high stability.
3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 1

Model

CNC-1016



Glass table Size



1100*1700



Metal table Size

1200*1800



Working travel X.Y

1000*1600



Z-axis travel lift(mm)

200 focus



X.Y.Z-axis digital display resolution

0.5um



X.Y axis value error

≤(3+L/200)L is the measured length,unit mm)



Weight(kg)

3600



Dimession

1750*2650*1650

Motor

Three axis velocity

100mm/s



Three axis positioning accuracy

0.001mm

Image system

Camare

Sony color 1/3″CCD camera



Zoom

 coaxial optical zoom lens with a zoom lens (2 select one)



Zoom magnification

0.7-4.5X



Video total magnification

30-230X



Objector field

11.1-1.7mm



Power

AC220V/AC110V



Power consumption

100W

Insreument accessories

1Xtube(option)

0.5Xtube(option)

Working distance

Zoom lens

0.7-4.5X

0.7-4.5X



Add lens

Video magnification

Material side field(mm)



Video magnification

Material side field(mm)





0.5X option

11.8X-74X

22-3.4

5.9X-37X

44-6.8

175

Standard

23.5X-148X

11.1-1.7X

11.8X-74X

22-3.4

92

2Xoption

47X-296X

5.5-0.9

23.5X-148X

11.1-1.7

36
Functions

3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 2Mainly for metallograhpic measurement & analysis!These "Universal" models combine a measuring stand with the best of metallurgical microscope components for high resolution imaging and critical measurements. Featuring the full range of advanced infinity objectives and microscopy techniques including: brightfield,darkfield, DIC contrast, polarizing and epifluorescence.Up to five objectives may bemounted on the nosepiece.With more usages if upgraded.

Specifications

1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.

2. It has many features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.

4. Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.

5. Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.

6. Measurement data directly input into AutoCAD and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
7. Record user program, editing and execute command.
Our Services

3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 3

Company Information

3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 4

3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 5

Certifications

3D High Precision Gantry Coordinate Measuring Machine 200mm/S Velocity 6

1.our software through the national professional organization of standard measurement certification.

2.our machines can give HSR agency  of standard measurement certification.
