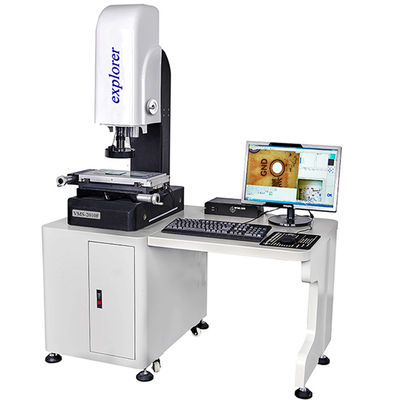

Customized 2D Coordinate Measuring Machine For Mobile Phone Inspection

Large Image : Customized 2D Coordinate Measuring Machine For Mobile Phone Inspection

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WM-3D
Certification:	ISO9001
Model Number:	VMS-2010F

Payment & Shipping Terms:

Price:	$3,000.00/sets 1-1 sets
Packaging Details:	Parts measurement tools other optics instruments video measurement machine optical instruments<br>Factory Price!!optical Metal Image Measuring Machine<br> wooden case:9508501390MM

Contact Now

Customized 2D Coordinate Measuring Machine For Mobile Phone Inspection

Description

Warranty:	1 Years, One Year	Customized Support:	OEM, ODM
Name:	Mobile Phone Dimension Inspection- Vision Measuring Machine	Accuracy:	3um
General Use:	Electrics,plastics,mold,machinery,connectors And Mobile	Function:	Measuring And Detect
Weight:	170KG	Velocity:	Hand Control
Color:	White	Product Name:	Mobile Phone Dimension Inspection- Vision Measuring Machine
Port:	Shenzhen
High Light:	Customized 2D Coordinate Measuring Machine , Mobile Phone 2D Coordinate Measuring Machine

Parts measurement tools other optics instruments video measurement machine optical instruments

Product Description

Customized 2D Coordinate Measuring Machine For Mobile Phone Inspection 0

Items	VMS-2010F		VMS-3020-F		VMS-4030F		VMS-5040F
Dimension(mm)(L×W×H)	5007001100		6007501100		7009001150		85010501200
Measuring range(mm)(X×Y×Z)	200100200		300200200		400300200		500400200
Measuring Accuracy(μm	3+L/200		3+L/200		3+L/200		3+L/200
Repeatability (μm)	3		3		3		3
Weight(kg)	150		180		200		240
Image and Measuring		CCD				Japanese SOnYCcD
		Len				WM HD zoom lens / continuous magnification 0.7-4,5x
		Magnification				30-210X
		ptical scale resolution				X/Y/zaxis 0.0005mm ( 0.5um
		Measuring range				9.omm-1.35mm
measuring system				Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe,
Driving system				versatile data processor can measures points, lines, loops, circles, angles, etc.
Illumination				Surface light and projection light , cold light, long life, brightness adjustable

Our advantage

♥High precision and high strength machine:00 marble base / upright cloumn / worktable, high precision and good stability.

♥XYZ three axis imported precision v type guide rail / imported optic axis drive system, long service life, good stability.

♥wMContinuous zoom optical lens,d ifferent frames, different magnification, without zoom correction.

♥HD Japanese SoNY ccD camera, high quality measuring screen.

♥Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe.

♥Surface light , LED profile light , coaxial light . choose match programmable three ring eight area light.

♥The laser pointer indicates the position of measuring,rapid positioning and convenient measurement.

♥Can match foot switch, easy to operate at any place.

Customized 2D Coordinate Measuring Machine For Mobile Phone Inspection 3

Our Services

Customized 2D Coordinate Measuring Machine For Mobile Phone Inspection 4
