3D Digital Optical Coordinate Measuring System 200mm/S Velocity

3D Digital Optical Coordinate Measuring System 200mm/S Velocity
3D Digital Optical Coordinate Measuring System 200mm/S Velocity
3D Digital Optical Coordinate Measuring System 200mm/S Velocity 3D Digital Optical Coordinate Measuring System 200mm/S Velocity 3D Digital Optical Coordinate Measuring System 200mm/S Velocity 3D Digital Optical Coordinate Measuring System 200mm/S Velocity 3D Digital Optical Coordinate Measuring System 200mm/S Velocity 3D Digital Optical Coordinate Measuring System 200mm/S Velocity 3D Digital Optical Coordinate Measuring System 200mm/S Velocity

Large Image :  3D Digital Optical Coordinate Measuring System 200mm/S Velocity

Product Details:
Place of Origin: Guangdong, China
Brand Name: WangMin Optical
Certification: ISO9001
Model Number: VMS-5040
Payment & Shipping Terms:
Price: $8,100.00/sets 1-4 sets
Packaging Details: Export wooden box packaging<br> wooden case:1250*1150*1750mm

3D Digital Optical Coordinate Measuring System 200mm/S Velocity

Description
Warranty: 1 Year Customized Support: OEM, ODM, OBM

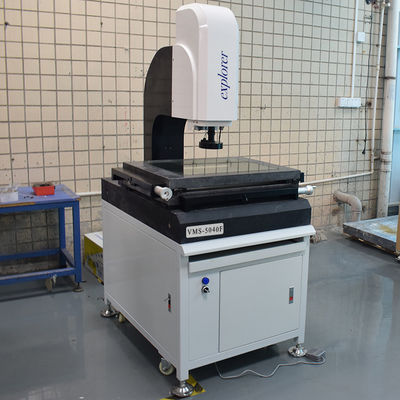

Name: 3D Scanner Super High Performance Manual Vision Measuring Machine Accuracy: 3um
Velocity: 200mm/s Function: Measuring And Detect
General Use: Electrics,plastics,mold,machinery,connectors And Mobile Color: White
Power: 220V /50HZ Product Name: 3D Scanner Super High Performance Manual Vision Measuring Machine
Glass Table Size: 530*430 Stroke (mm): 530*430*200*
High Light:

3D Optical Coordinate Measuring System

,

Digital Optical Coordinate Measuring System

,

200mm/S Coordinate measurement System

New type Stroke (mm)500*400*200 machine optique optic sofring machine vowish optical vision measuring machine

Product Description

3D Digital Optical Coordinate Measuring System 200mm/S Velocity 0

3D Digital Optical Coordinate Measuring System 200mm/S Velocity 1

I. Usage
VMS Series is an universal type of CNC Video Measuring System developed by WM-3D.
It has been widely applied in machinery, electronics, aerospace, automotive, military, mold, and other industries for precision automatic measurement. Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc.

1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness, flatness,
perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1) Machinery: sheet, mould & die, gear, turning parts like bearings, shaft.
2) Electronics: phone& tablet sheet, PCB, watch parts, etc.
3) Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.

II. Features
1. Double closed-loop motion control performs micron-level precision motion
2. 8 regional LED surface light source
3. Marble base, column, high stability
4. Specific CNC software has wonderful measurement efficiency.
Specifications

Model

WM-2010F

WM-3020F

WM-4030F

WM-5040F

Worktable

Metal table’s size(mm)

350*220

450*350

550*450

700*600

Glass table’s size(mm)

230*130

330*230

430*330

530*430

Three axis travel Travel(mm)

200*100

300*200

400*300

500*400

Weight(kg)

170

260

300

500

Dimension(L)*(W)*(H)

  500*700*1100

600*750*1100

700*900*1150

850*1050*1200

Measuring System

(Standard Accessories)

Camera :SONY1 / 3" Color CCD Camera

Lens magnification :0.7~4.5X       WD:95mm

Total magnification:30~230X        Object view:7~1.1mm

Double Cross Line Generator

Data Resolution:0.001mm

Z-axis lifting travel (mm):150mm (AUTO FOCUS)

The indication error of X,Y-axis ≤(3+L/200)µm (L be regarded as measured length, units: mm)

Lighting: Surface light and transmission light are used LED, brightness adjustable  Power:220/110V(AC),50HZ 30W



Our advantage

Features:

1.XYZthree axis imported precision V type guide rail / imported optic axis drive system,long service life, good stability.

2.High precision grating ruler 0.5um.

3.WM Continuous zoom opticallens,d ifferent frames, different magnification, without zoom correction.

4.HD Japanese SoNY CCD camera, high quality measuring screen.

5.Auxiliary focusing measurement, optical measuring altitude and flatness,and can be equipped with the British RENISHAW contact probe.

6.Surface light, LED profile light , coaxial light . Choose match programmable three ring eight area light.

7.The laser pointer indicates the position of measuring,rapid positioning and convenient measurement.

8.Z-axis auto focus Video Measuring Machine can measure point, line, circle, arc and oval,

rectangular with the multipoint positioning function, combination of measurements,

center structure and the intersection of structure, the midpoint of construction, line structure,

a round structure.

9. It has various functions of data processing, display, input and output, Measurement data output Word,Excel and Auto CAD directly to conduct statistical analysis, particularly, and the work piece straightening function is very useful.

10. Digital measurement and data processing system are made up by the two coordinate's studio,

the optical grating and the SDK -3000 data card.

11. It has RS232 interface with a computer and specialized measurement software

which can also processes and output circular mapping.

12. Z axis motorized, it can realize auto focus. make the image to be the clearest situation.

13.can match foot switch, easy to operate at any place.

3D Digital Optical Coordinate Measuring System 200mm/S Velocity 2

Our Services

3D Digital Optical Coordinate Measuring System 200mm/S Velocity 3

12 months warranty. Buy with confidence!

1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free,except ticket and accommodation.

4. Extra warranty period: We will provide to user after-sale long-life advisory service.



5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sale value added technical service by preferential price for life.
