Product Details:
|
Warranty: | 1 Year | Customized Support: | OEM, ODM |
---|---|---|---|
Color: | White | Material: | Granite |
Weight: | 260kg | Business Type: | Maufacturer |

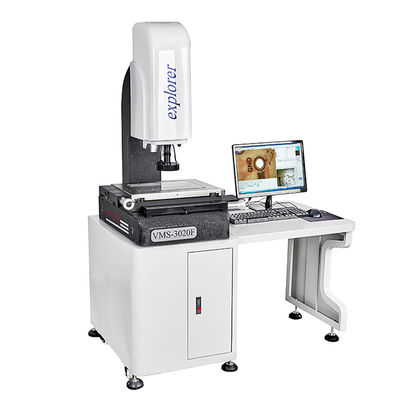

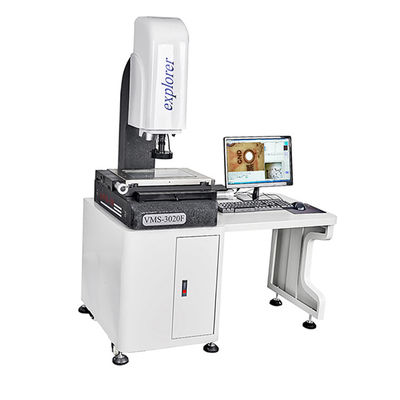

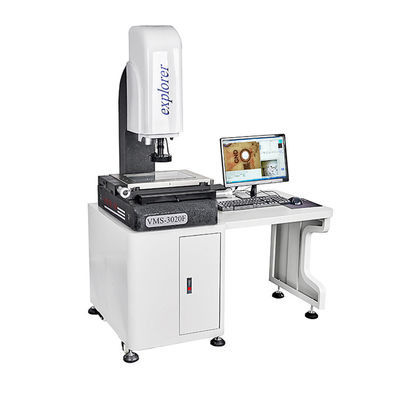

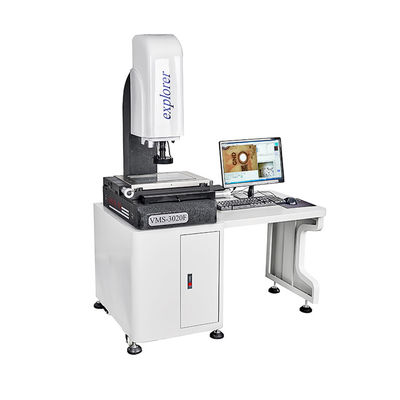

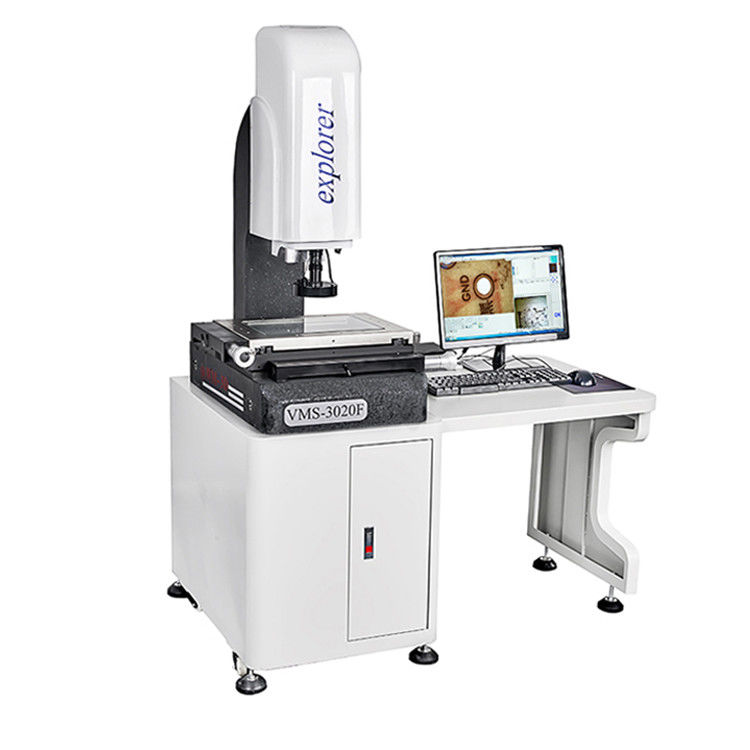

Name: | Ophthalmic Unit | Model: | VMS-3020F |
Port: | Shenzhen | ||
High Light: | Granite optical measuring equipment,Ophthalmic Unit optical measuring equipment,optical measuring instrument OEM |
Items |
VMS-2010F |
VMS-3020-F |
VMS-4030F |
VMS-5040F |
|||
Dimension(mm)(L×W×H) |
500*700*1100 |
600*750*1100 |
700*900*1150 |
850*1050*1200 |
|||
Measuring range(mm)(X×Y×Z) |
200*100*200 |
300*200*200 |
400*300*200 |
500*400*200 |
|||
Measuring Accuracy(μm |
3+L/200 |
3+L/200 |
3+L/200 |
3+L/200 |
|||
Repeatability (μm) |
3 |
3 |
3 |
3 |
|||
Weight(kg) |
150 |
180 |
200 |
240 |
|||
Image and Measuring |
CCD |
Japanese SOnYCcD |
|||||
Len |
WM HD zoom lens / continuous magnification 0.7-4,5x |
||||||
Magnification |
30-210X |
||||||
ptical scale resolution |
X/Y/zaxis 0.0005mm ( 0.5um |
||||||
Measuring range |
9.omm-1.35mm |
||||||
measuring system |
Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe, |
||||||
Driving system |
versatile data processor can measures points, lines, loops, circles, angles, etc. |
||||||
Illumination |
Surface light and projection light , cold light, long life, brightness adjustable |
High precision and high strength machine:00 marble base / upright cloumn / worktable, high precision and good stability.
XYZ three axis imported precision v type guide rail / imported optic axis drive system, long service life, good stability.
wMContinuous zoom optical lens,d ifferent frames, different magnification, without zoom correction.
HD Japanese SoNY ccD camera, high quality measuring screen.
Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe.
Surface light , LED profile light , coaxial light . choose match programmable three ring eight area light.
The laser pointer indicates the position of measuring,rapid positioning and convenient measurement.
Can match foot switch, easy to operate at any place.
Q1:What kind of equipment do you mainly produce?
A:Hello! Our main production equipment are:
automatic image measuring instrument,manual image measuring instrument,large gantry image measuring instrument,one key measuring instrument.
Automatic vision screeningequipment,
non-standard vision detection equipment, etc.
Q2:Do you accept custom service? Can I print my logo on the machine? A:Yes,all of our products can be customized,if you have a logo requirement. we can also customize for you.
Q3:why do you choose us?
A:1.We have focused on the measurement of products for more than 10 years,with a professional R&D team and after-sales team.
A2.It is located in Dongguan City, a world-famous manufacturing city.
A3:after-sales service for 12 months,simple problems within 48 hours todeal with timely. Q4:what is your delivery time? What about the packing?
A:Our delivery time is 5 working days after receiving the deposit or order confirmation, and 10-20 working days for customized machines. Our packaging is wrappedand fixed with professional machine packaging film inside, and woodenbox packaging and screw fixing are used on the outside.Ensure that theproduct arrives safely without damage. Q5:Is on-site training available?
A:can,the need for on-site training needs to confirm the specific time with Q5:What are the payment terms?
A:T/T,L/C,Western Union,etc. Q6.What are your payment terms?
A: T/T 30% as a deposit, 70% before delivery. Before you pay the balance, we will show you the photos ofthe product and packaging.
Or 100% L/C at sight.
Q7:Can we test samples before placing an order?
A:Of course,we can test samples for free and provide you with a test report. If you have any difficulties,please contact our business manager
