Electronic Coordinate CMM Measuring Machine with 2.2MPE(um) Accuracy and 600*500*400mm Work Scale in Stainless Steel and Granite

Electronic Coordinate CMM Measuring Machine with 2.2MPE(um) Accuracy and 600500400mm Work Scale in Stainless Steel and Granite

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WM-3D
Certification:	ISO9001, CE
Model Number:	WM-NC654

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

WM-3D

Certification:

ISO9001, CE

Model Number:

WM-NC654

Warranty:

1 Years

Customized Support:

OEM, ODM, OBM

Power:

Electronic

Product Name:

3D Precision Granite Renishaw Probe CMM Coordinate Measuring Machine

Usage:

Measuring Machine

Material:

Stainless Steel And Granite

Accuracy:

2.2MPE(um)

Business Type:

Optical Instrument Manufacturer

MPE(um):

2.1+3.3L/1000

MPEE(um):

1.3+3L/1000

Work Scale:

600*500*400mm

Measuring Volume:

1350*1550*2300mm

Maximum Weight Of The Tested Work:

500kg

Port:

Shenzhen

Highlight:

High Light

Highlight:

Coordinate CMM Measuring Tool

Electronic CMM Measuring Tool

Granite cmm measuring device

Trading Information

Price:

$45,000.00/sets 1-1 sets

Packaging Details:

WM-3D coordinate measuring machine cmm Testing Equipment test instruments electronic machine
Export wooden box packaging
wooden case:1270*1200*2450mm

Supply Ability:

10 Piece/Pieces per Month

Product Description

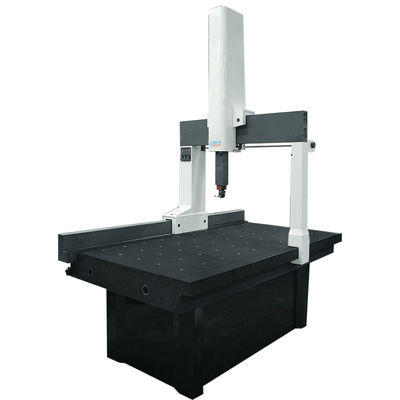

WM-3D Coordinate Measuring Machine (CMM)

Precision electronic coordinate measuring equipment for accurate dimensional analysis and quality control applications.

Key Features & Design Advantages

Complete system includes CMM main machine, machine support, imported precise air filter, and imported measuring system
Single-piece granite table provides excellent load capacity, spacious measurement area, and easy loading/unloading
Three-axis slide ways constructed from high-quality granite for superior temperature stability and minimal deformation
Non-linear spring application reduces slide way errors and enhances environmental temperature adaptability
Triangle guide way girder structure maximizes air bearing span while minimizing inertia
Advanced Z-axis anti-torsion structure maintains precision even with probe extension bars
Separated vibration design in driving system minimizes measurement precision effects during high-speed operation
High-performance hold-in range on all three axes enables high-speed measurement with reduced driving inertia
Adjustable pneumatic balance device on Z-axis accommodates different probe systems
Imported metal zonal scale and read head ensure high precision accuracy and stability
High-precision air filter with automatic drainage protects air bearing and slider way components
Comprehensive safety protection design for effective machine fault response
Ergonomic mechanical design for easy operation and maintenance

Primary Functions

Universal models combine measuring stands with advanced metallurgical microscope components for high-resolution imaging and critical measurements. Features include full range of infinity objectives and microscopy techniques: brightfield, darkfield, DIC contrast, polarizing, and epifluorescence. Accommodates up to five objectives on nosepiece with upgrade capabilities for expanded applications.

Technical Specifications

Category	Component	Specification	Quantity
Machine System	Machine	Bridge Coordinate Measuring Machine	1
Documentation	User Manuals		1
Computer System	Computer	Intel Core2 3.0GHz/2GB RAM/500GB Hard Disk/512MB Video Card / DVD-CDRW/19″TFT Monitor / Windows O.S.	1
	Printer	HP inkjet printer	1
	Computer table and chair		1
Software System	Visual DMIS Software	Visual DMIS Measuring Software (Windows O.S)	1
	Manual	Visual DMIS Reference Manual	1
Probe System	Probe Head Seat	MCP	1
	Stylus	RENISHAW the third probe element

Model: WM-NC1286

Measurement Accuracy: S/2.4*H/1.7μm

Warranty & Service Support

12-month comprehensive warranty. Purchase with confidence!

12 months from date of assembly and acceptance, not exceeding 15 months from shipment date
Phone and internet teaching support with comprehensive after-sales advisory service
Lifetime warranty services available (cost-based for certain components)
Free technical service for machine failures caused by manufacturer (travel and accommodation expenses apply for on-site visits)
Lifetime after-sales advisory service beyond standard warranty period
Cost-based spare parts availability for lifetime support
Value-added technical services available at preferential pricing for life
